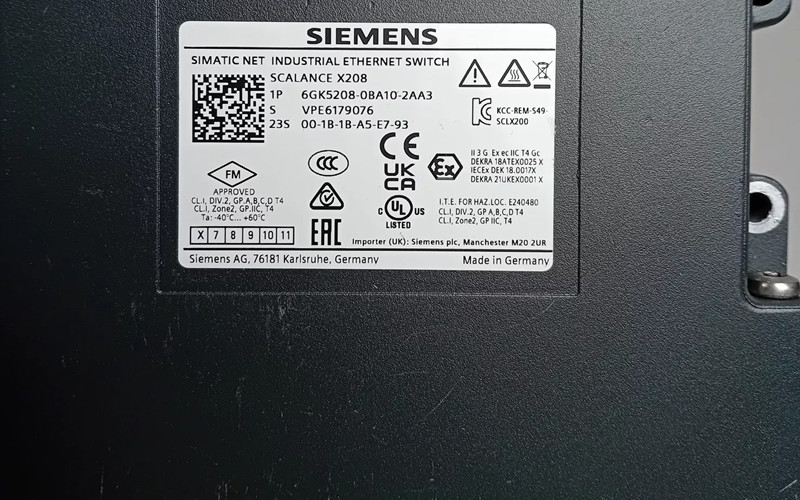

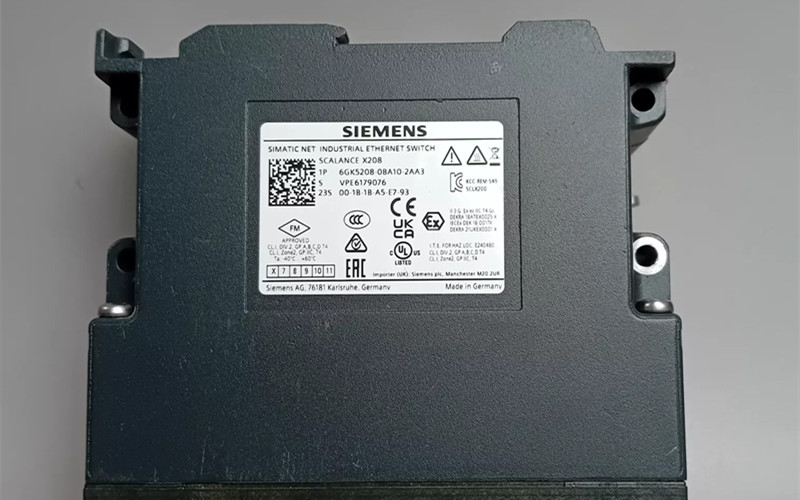

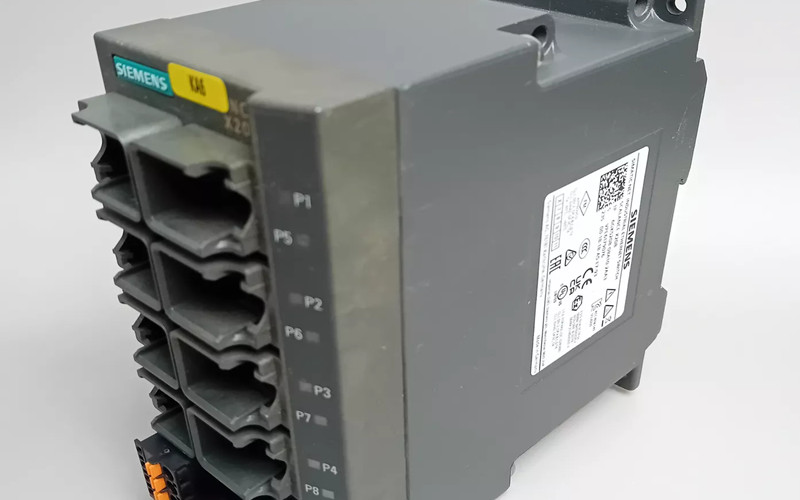

Siemens 6GK5208-0BA10-2AA3 Ethernet Switch

General Description of Siemens 6GK5208-0BA10-2AA3

The Siemens 6GK5208-0BA10-2AA3 SCALANCE XB208 is an 8-port unmanaged Industrial Ethernet switch designed for efficient data communication in industrial environments. This robust Ethernet switch offers a reliable and cost-effective solution for connecting multiple industrial devices within a network. Featuring plug-and-play installation, compact design, and industrial-grade components, the SCALANCE XB208 is ideal for automation systems that require consistent and stable Ethernet connectivity.

Technical Specifications of Siemens 6GK5208-0BA10-2AA3

l Model Number: 6GK5208-0BA10-2AA3

l Type: Unmanaged Ethernet Switch

l Ports: 8x RJ45 ports

l Data Transmission Rate: 10/100 Mbps (Fast Ethernet)

l Network Standard: IEEE 802.3, 802.3u

l Mounting Type: DIN-rail or wall-mountable

l Power Supply: 24 V DC (9.6 - 32 V DC range)

l Dimensions: 126 x 80 x 35 mm

l Operating Temperature: -10 to +60°C

l Certifications: CE, UL, cULus, EN 61000-6-2, EN 61000-6-4

l LED Indicators: Status LEDs for power and port activity

l Protection: Rugged metal housing, vibration and shock-resistant

Detailed Features of Siemens 6GK5208-0BA10-2AA3

A. 8-Port Unmanaged Switch: This switch provides 8 Fast Ethernet RJ45 ports, allowing easy connection of multiple devices without the need for complex configurations.

B. Plug-and-Play Installation: Simple setup with no configuration required, enabling immediate deployment in various industrial applications.

C. Compact and Robust Design: A small footprint makes it ideal for space-constrained areas, while the rugged construction ensures long-term durability in harsh industrial environments.

D. DIN-Rail or Wall-Mountable: These flexible mounting options fit diverse installation needs and enhance ease of integration into industrial cabinets or control panels.

E. Wide Temperature Range: Designed to operate in extreme temperatures ranging from -10 to +60°C, making it suitable for demanding environments.

Applications of Siemens 6GK5208-0BA10-2AA3

1. Industrial Automation: This is ideal for connecting industrial PLCs, HMIs, sensors, and other Ethernet-enabled devices within an automation network.

2. Factory Networking: Used in manufacturing facilities to create reliable communication links between automated systems and control stations.

3. Process Control: Provides stable data transmission for monitoring and controlling processes in chemical, oil and gas, and pharmaceutical industries.

4. Building Automation: Suitable for connecting various devices in building management systems, including HVAC, lighting, and access control systems.

Related Part Numbers of Siemens 6GK5208-0BA10-2AA3

l 6GK5204-0BA00-2AB2: A similar unmanaged switch with 4 Fast Ethernet ports.

l 6GK5206-0BA00-2AB2: A 6-port variant of the SCALANCE unmanaged switch.

l 6GK5106-0BA00-2AA3: SCALANCE X106 unmanaged switch with enhanced features for industrial networks.

l 6GK5216-0BA00-2AA3: SCALANCE XB216, a 16-port unmanaged switch for more extensive networks.

For the previous part, please refer to the link: Siemens 6GK1571-1AA00
