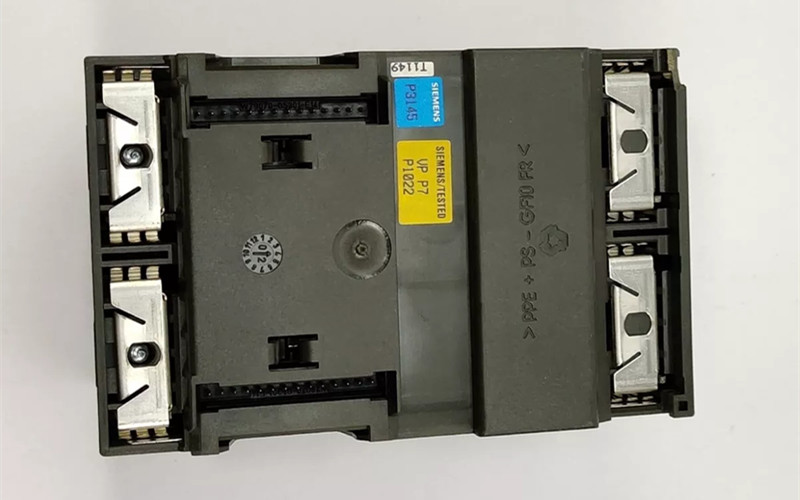

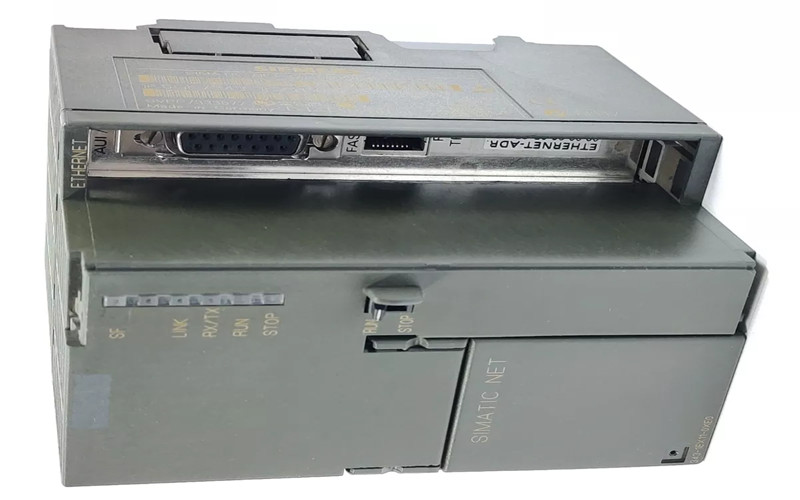

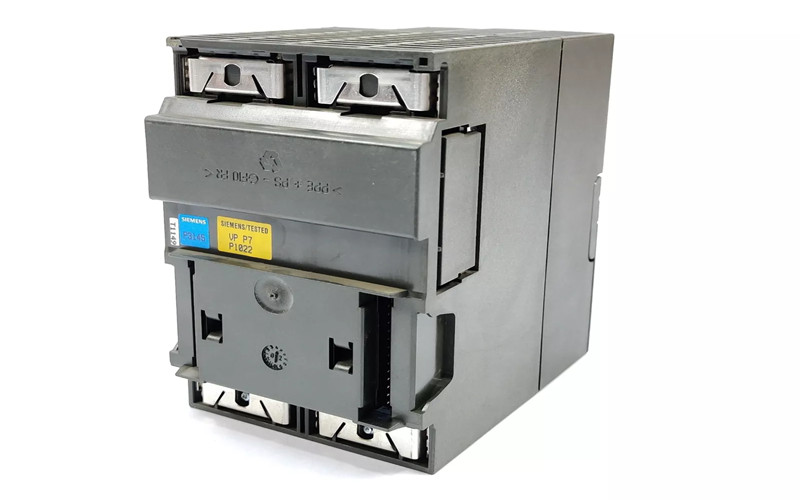

Siemens 6GK7343-1EX11-0XE0 Ethernet Processor

General Description

The Siemens 6GK7343-1EX11-0XE0 is an advanced Industrial Ethernet communication processor designed to integrate with the SIMATIC S7-300 PLC series. This communication module enables seamless connectivity between the S7-300 and Industrial Ethernet networks, providing high-performance communication capabilities. Ideal for automation and control systems, the CP 343-1 enhances network efficiency, supports diagnostic functions, and ensures robust data communication for various industrial applications.

Technical Specifications of Siemens 6GK7343-1EX11-0XE0

l Manufacturer: Siemens

l Model Number: 6GK7343-1EX11-0XE0

l Product Type: Industrial Ethernet Communication Processor

l Series: SIMATIC S7-300

l Network Interface: 1x RJ45 Ethernet 10/100 Mbps

l Protocols Supported: PROFINET, TCP/IP, ISO, ARP, S7 communication

l Data Transfer Rate: 10/100 Mbps

l Diagnostic Capabilities: Integrated Web server for monitoring and diagnostics

l Configuration: Via STEP 7 software

l Power Supply: 24V DC

l Dimensions: 125 mm x 40 mm x 130 mm

l Mounting: DIN rail

l Operating Temperature: 0°C to +60°C

l Weight: Approximately 0.3 kg

Detailed Features of Siemens 6GK7343-1EX11-0XE0

1. Seamless Integration: The 6GK7343-1EX11-0XE0 is designed for easy integration with SIMATIC S7-300 systems, providing a reliable and efficient communication link to Industrial Ethernet networks.

2. High Performance: Supports a wide range of communication protocols, including PROFINET and TCP/IP, ensuring compatibility with various industrial applications.

3. Advanced Diagnostics: This product features an integrated web server for real-time monitoring and diagnostics, enabling rapid troubleshooting and maintenance.

4. Configurable with STEP 7 Software: The processor can be easily configured using the Siemens STEP 7 software, streamlining setup and customization for specific project needs.

5. Rugged and Durable: Built to withstand industrial environments, this module operates from 0°C to +60°C, ensuring consistent performance under demanding conditions.

Applications of Siemens 6GK7343-1EX11-0XE0

A. Automation and control systems in industrial manufacturing

B. Data communication for production monitoring and control

C. Integration of PLC systems with industrial networks

D. Factory automation requiring robust Ethernet connectivity

E. Process automation for consistent data transfer and monitoring

Related Part Numbers of Siemens 6GK7343-1EX11-0XE0

l 6GK7343-1EX20-0XE0: An enhanced model with additional Ethernet functionalities.

l 6GK7343-1GX20-0XE0: Offers gigabit Ethernet capabilities for higher-speed applications.

l 6GK7343-1EX30-0XE0: Another variant designed for extended Ethernet connectivity options.
