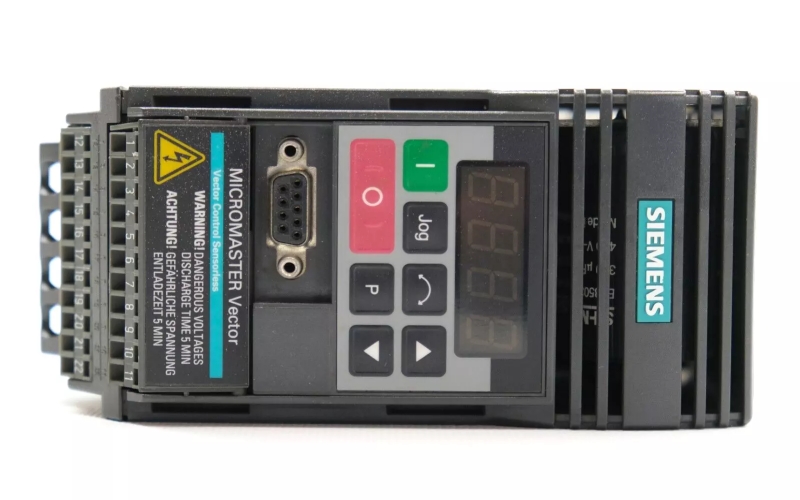

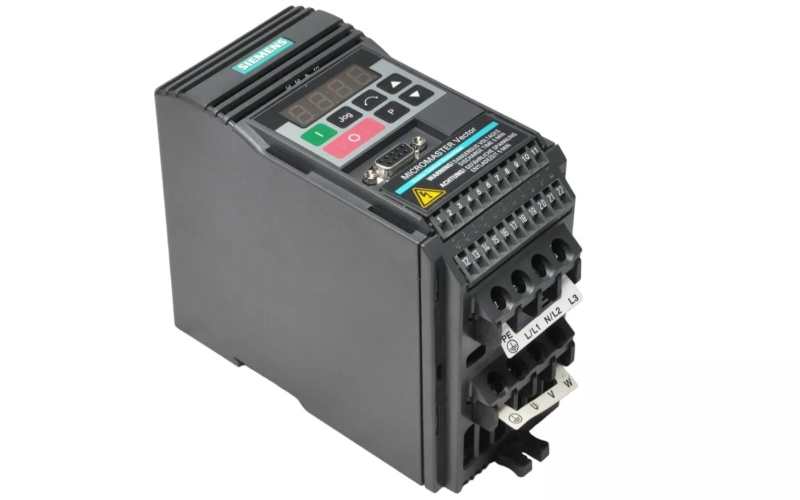

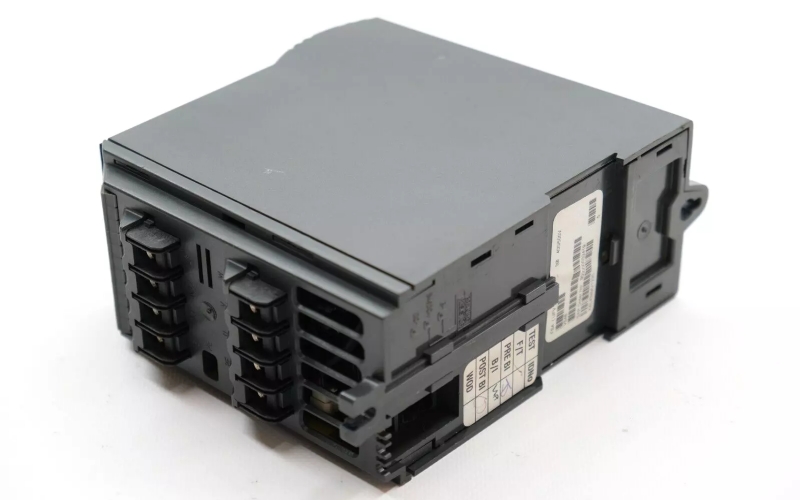

SIEMENS 6SE3214-0DA40 Micromaster 420 Inverter Drive

General Description of SIEMENS 6SE3214-0DA40 :

The SIEMENS 6SE3214-0DA40 is a part of the Micromaster 420 series, offering a versatile and reliable solution for controlling AC motors. This inverter drive is designed to provide efficient motor management for industrial applications, delivering precise speed and torque control with a compact and user-friendly design. It features an advanced control system that allows seamless integration with automation environments, making it an ideal choice for industries requiring dependable and flexible motor control.

Technical Specifications of SIEMENS 6SE3214-0DA40  :

l Product Type: AC Inverter Drive

l Part Number: 6SE3214-0DA40

l Series: Micromaster 420

l Input Voltage: 380-480V AC, 3-phase

l Output Voltage: 0-480V AC

l Output Power: 4 kW (5.4 HP)

l Output Current: 9.5 A

l Control Type: V/f (Voltage/Frequency) and vector control

l Frequency Range: 0 to 650 Hz

l Communication Interface: RS485 (optional PROFIBUS, CANopen)

l Protection Class: IP20

l Dimensions: Compact for panel or wall mounting

l Operating Temperature: -10°C to +50°C

l Cooling Method: Air-cooled with an integrated fan

Detailed Features of SIEMENS 6SE3214-0DA40 :

A. Versatile Motor Control: Offers both V/f control and vector control, ensuring precise speed and torque adjustments to meet various application needs.

B. User-Friendly Interface: Equipped with a clear display and straightforward programming capabilities, it is easy to configure and operate for technicians of any skill level.

C. Flexible Communication: Standard RS485 communication, with optional interfaces like PROFIBUS and CANopen, for easy integration into existing automation systems.

D. Compact and Space-Saving Design: A small footprint allows for convenient installation in control cabinets or on walls, optimizing space in industrial settings.

Applications of SIEMENS 6SE3214-0DA40  :

1. Pumps and Fans: Ideal for controlling water pumps, HVAC fans, and ventilation systems.

2. Conveyors: Suitable for conveyor systems in manufacturing, packaging, and logistics.

3. Textile Industry: For efficient control of textile machinery, ensuring smooth and accurate operation.

4. General Industrial Automation: Adaptable to various industrial applications requiring precise AC motor management.

Related Part Numbers of SIEMENS 6SE3214-0DA40  :

l 6SE3211-0DA40 - Lower power version for small-scale applications with similar features.

l 6SE3217-0DA40 - Higher power variant for heavy-duty industrial needs.

l 6SE3221-0DA40 - Advanced model with additional communication options.

l 6SE3214-0BB40 - Version with an enhanced IP rating for improved protection in harsh environments.
