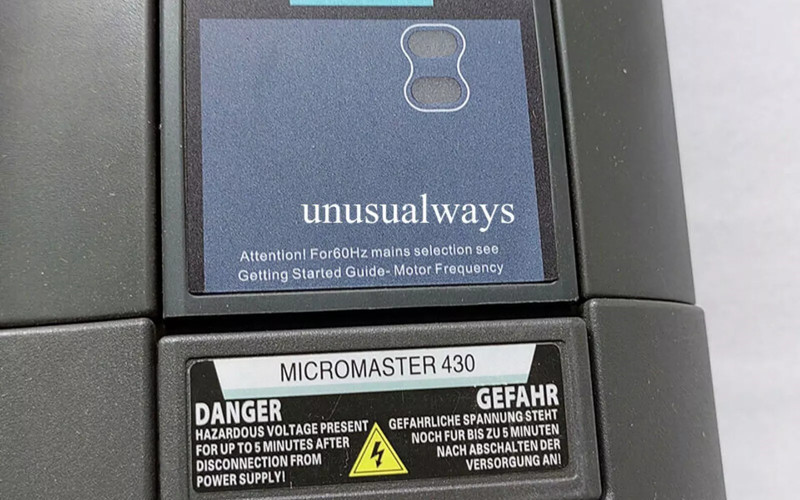

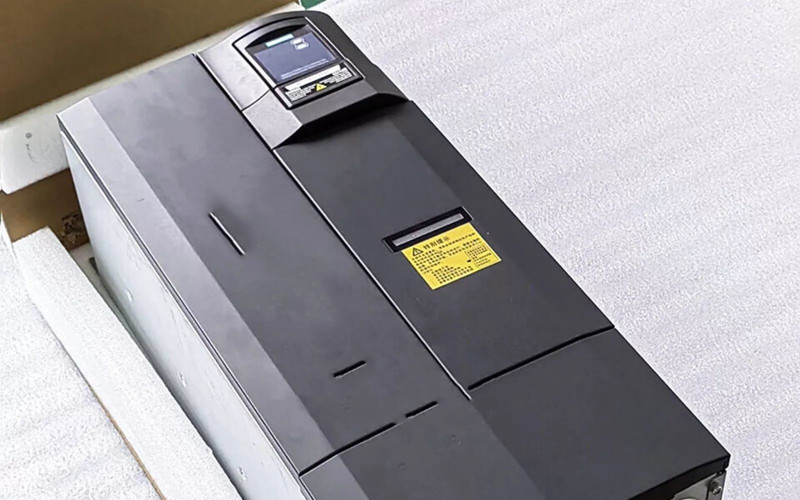

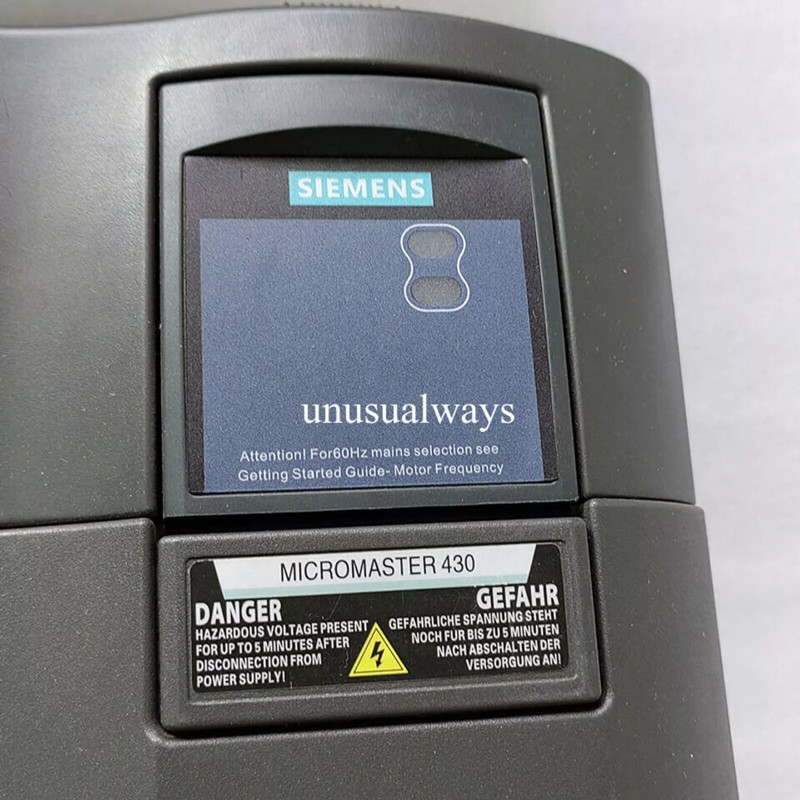

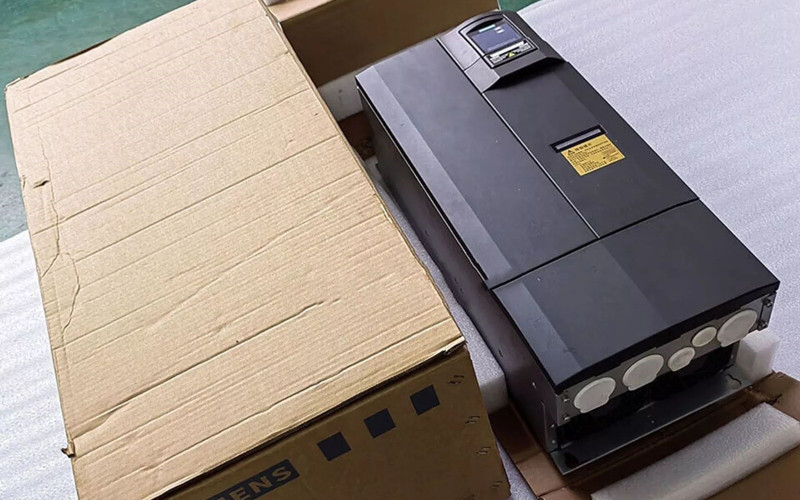

Siemens 6SE6430-2UD34-5EA0 Variable Frequency Drive

General Description

The Siemens Inverter 6SE6430-2UD34-5EA0 is a highly efficient variable frequency drive (VFD) that precisely controls AC motors in various industrial applications. This inverter is engineered to optimize performance, enhance energy efficiency, and ensure reliable operation in demanding environments. The 6SE6430-2UD34-5EA0 inverter supports multiple motor types and offers flexible installation options. It is suitable for various applications, from simple fan control to complex automation processes, making it a versatile choice for industries looking to improve efficiency and performance.

Technical Specifications

l Type: Variable Frequency Drive (VFD)

l Input Voltage: 380-480 V AC

l Output Power: 3 kW

l Output Frequency Range: 0 to 400 Hz

l Control Method: V/f control, vector control

l Protection Class: IP20 (optional IP54 available)

l Dimensions: Compact design for DIN rail or panel mounting

Detailed Features

1. User-Friendly Interface: Equipped with a clear display and intuitive controls for easy setup and operation.

2. Flexible Communication Options: Supports various communication protocols, including Profibus and Ethernet.

3. Built-in Safety Features: Includes overvoltage, undervoltage, and overload protection to ensure safe operation.

4. Energy Recovery Functionality: Capable of regenerative braking to recover energy during deceleration.

The Siemens Inverter 6SE6430-2UD34-5EA0 is widely used in:

A. Pumps and Fans: Efficiently controlling the speed of pumps and fans in HVAC systems and water treatment plants.

B. Conveyor Systems: Providing precise speed control for conveyor belts in manufacturing and logistics.

C. Machine Tools: Enhancing the performance of machine tools by allowing variable speed operations.

D. Industrial Automation: Integrating seamlessly into automated processes for improved productivity and efficiency.

To install the Siemens Inverter 6SE6430-2UD34-5EA0:

l Ensure that the Power is disconnected before installation.

l Mount the inverter securely on a DIN rail or panel per the installation manual.

l Connect the input power supply according to the specified wiring diagram.

l Connect the motor leads to the output terminals of the inverter.

l Configure the inverter settings using the user interface or programming software based on application requirements.

l Power up the system and conduct tests to verify proper operation.

Related Part Numbers

l Siemens Inverter 6SE6430 Series (e.g., 6SE6430-2UD32)

l Siemens Control Units (e.g., S7-1200 Controllers)
