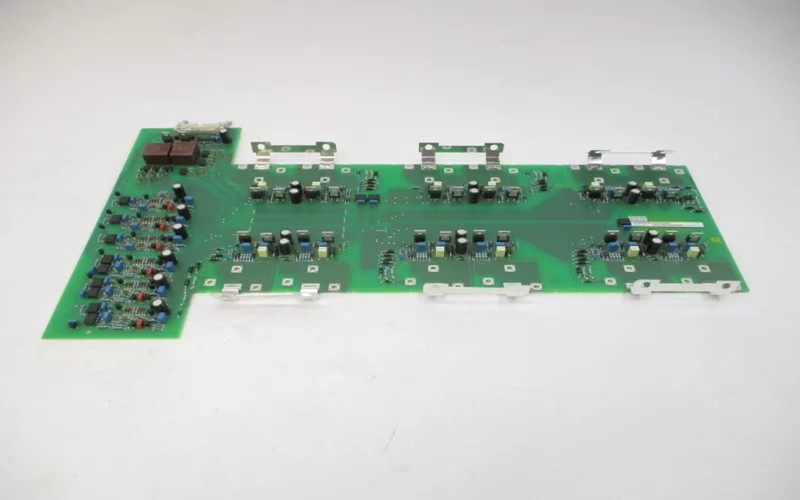

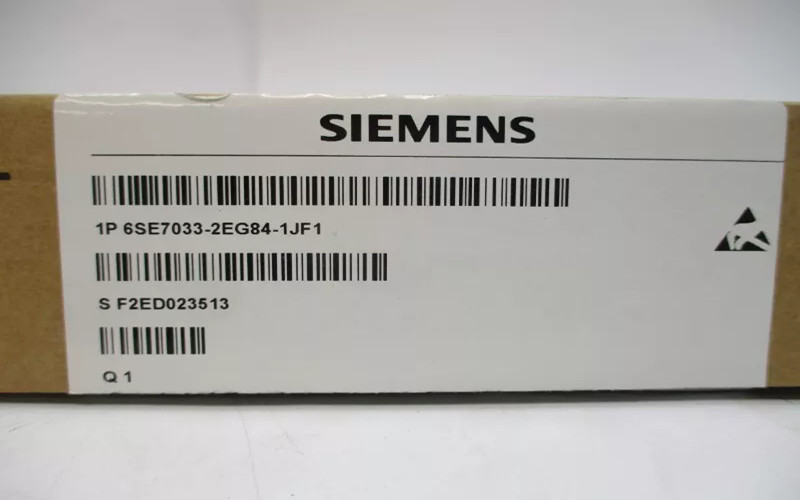

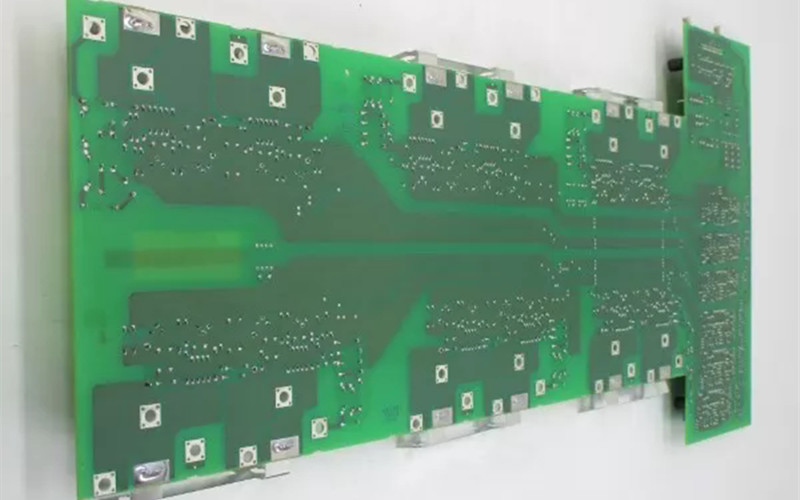

Siemens 6SE7033-2EG84-1JF1 Inverter Drive Module

General Description:

The Siemens 6SE7033-2EG84-1JF1 inverter drive module is a powerful solution for controlling and managing the operation of electric motors in industrial applications. It is part of the Siemens SINAMICS series, offering precision control and enhanced energy efficiency in demanding environments. Its compact design and advanced features make it suitable for various applications, from motor-driven systems to complex industrial machinery.

Technical Specifications:

l Part Number: 6SE7033-2EG84-1JF1

l Type: Inverter Drive Module

l Input Voltage: 380-480V AC

l Output Voltage: 0-480V AC

l Power Rating: 7.5 kW

l Control Mode: V/f Control, Vector Control

l Frequency: 50/60 Hz

l Communication Protocol: Profibus DP

l Protection Class: IP20

l Temperature Range: -10°C to 40°C

l Mounting Type: Rack Mount

l Dimensions (L x W x H): 250 x 200 x 150 mm

l Weight: 4.2 kg

l Cooling Type: Fan cooled

Detailed Features of Siemens 6SE7033-2EG84-1JF1 :

1. Versatile Motor Control: Supports both V/f and vector control modes, offering flexibility in motor management for diverse industrial applications.

2. Energy Efficiency: Designed to minimize energy consumption while maintaining optimal performance, reducing operational costs.

3. User-Friendly Interface: The module provides a simple and intuitive interface for easy configuration and integration into existing systems.

4. Durability: Built to withstand challenging environments, the Siemens 6SE7033-2EG84-1JF1 ensures long-lasting and reliable operation with minimal maintenance.

5. Advanced Protection: Includes protective features such as overload, overvoltage, and short circuit protection, ensuring system stability and safety.

Applications of Siemens 6SE7033-2EG84-1JF1:

A. Industrial Machinery: Ideal for controlling motors in various machinery, including CNC machines, conveyors, and industrial pumps.

B. HVAC Systems: Used for managing fan speeds and other HVAC equipment, promoting energy efficiency in building management systems.

C. Pumps and Fans: Frequently applied in pumping systems for fluid and air movement, offering precise speed control and energy savings.

D. Material Handling: Perfect for automated material handling systems, including conveyors, lifts, and automated storage and retrieval systems.

E. Fan and Compressor Systems: This system offers precise motor control for fans and compressors, enhancing system efficiency and reducing wear.

Installation of Siemens 6SE7033-2EG84-1JF1:

The Siemens 6SE7033-2EG84-1JF1 inverter drive module is designed for rack-mount installation. It comes with clear and concise installation guidelines, ensuring a straightforward setup process. Proper ventilation and grounding must be provided to ensure optimal performance. The unit can be easily integrated with other Siemens automation products, making it an ideal solution for expanding or upgrading existing systems.

Related Part Numbers:

l Parent Part Number: 6SE7033-2EG84-1JF1

l Sub-Part Numbers: None

l Parts in the Same Series:

l Siemens 6SE7033-2EG82-1JF1 (Inverter drive with a slightly lower power rating)

l Siemens 6SE7033-2EG85-1JF1 (Inverter drive with higher power capacity)

For the previous part, please refer to the link: Siemens 6SE7031-2EP85-0AA0
