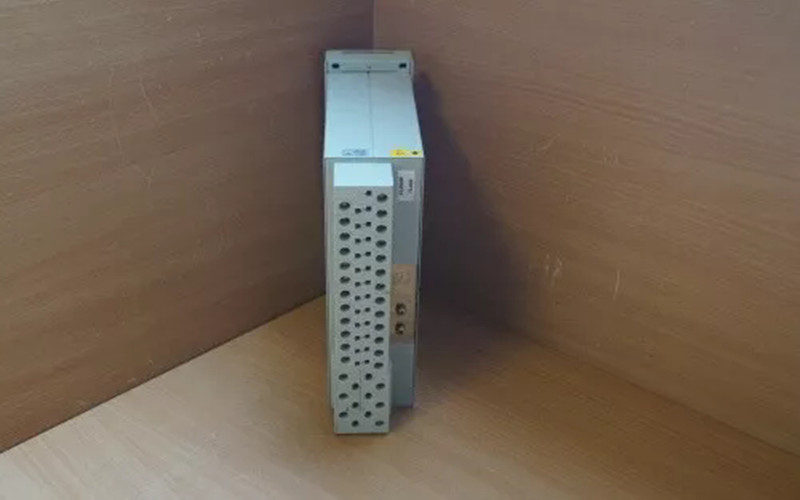

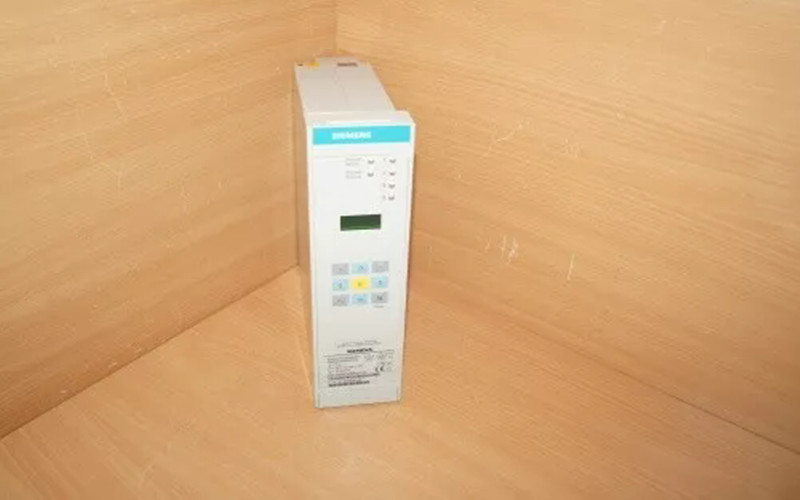

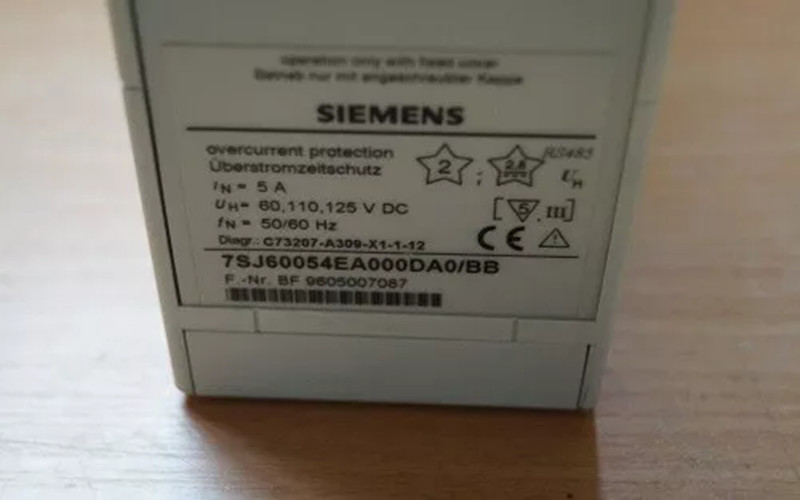

Siemens 7SJ6005-4EA00-0DA0 - SIPROTEC 5 Protection Relay

General Description:

The Siemens 7SJ6005-4EA00-0DA0 is an advanced protection relay from the SIPROTEC 5 series, engineered to provide comprehensive monitoring and control for electrical systems. This device is designed for high reliability and efficiency in protecting electrical equipment from faults, ensuring the safety and stability of power distribution networks.

Technical Specifications:

l Model: 7SJ6005-4EA00-0DA0

l Type: SIPROTEC 5 Protection Relay

l Rated Voltage: 100 - 240 V AC / 110 - 300 V DC

l Frequency Range: 50/60 Hz

l Protection Functions: Overcurrent, earth fault, voltage protection, and more

l Communication Interfaces: Ethernet, RS232, RS485, USB

l Operating Temperature Range: -40 °C to +70 °C

l Dimensions: 300 mm x 300 mm x 130 mm (WxHxD)

l Weight: Approximately 3.5 kg

l Protection Class: IP20

Detailed Features of Siemens 7SJ6005-4EA00-0DA0 :

l Comprehensive Protection Functions: This product offers multiple protection functions, such as overcurrent, earth fault, and voltage protection, to enhance system reliability.

l Flexible Communication Options: Supports various communication interfaces for seamless integration into existing monitoring systems.

l User-Friendly Interface: Equipped with an intuitive display and straightforward navigation for efficient configuration and operation.

l Robust Design: Built to withstand harsh industrial environments, ensuring durability and long-term performance.

Applications of Siemens 7SJ6005-4EA00-0DA0 :

The Siemens 7SJ6005-4EA00-0DA0 protection relay is suitable for various applications:

A. Power Distribution Networks: Provides essential protection for transformers, feeders, and busbars against overloads and faults.

B. Industrial Automation Systems: Ensures the safety and reliability of motors, generators, and critical equipment in manufacturing processes.

C. Renewable Energy Systems: Monitors and protects solar inverters and wind turbines to optimize performance and prevent damage.

D. Utility Substations: Enhances the reliability of electrical grids by protecting against faults and ensuring quick response times during disturbances.

E. Data Centers: Safeguards critical infrastructure from electrical faults that could lead to downtime or equipment damage.

Installation of Siemens 7SJ6005-4EA00-0DA0 :

1. Confirm that the installation area meets the required environmental conditions (temperature, humidity).

2. Securely mount the relay within an appropriate enclosure or panel.

3. Connect the power supply according to the wiring diagram provided in the manual.

4. Integrate with existing monitoring and control systems using specified communication interfaces.

5. Configure settings through the user interface or software tools provided by Siemens.

6. Conduct thorough testing to verify the functionality before full deployment.

Related Part Numbers:

l 7SJ6005-4EA00-0DA0

l 7SJ60054EA000DA0
