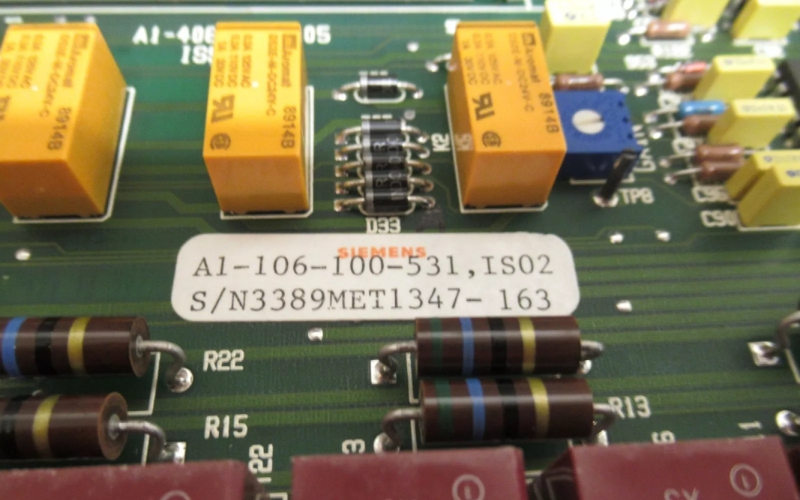

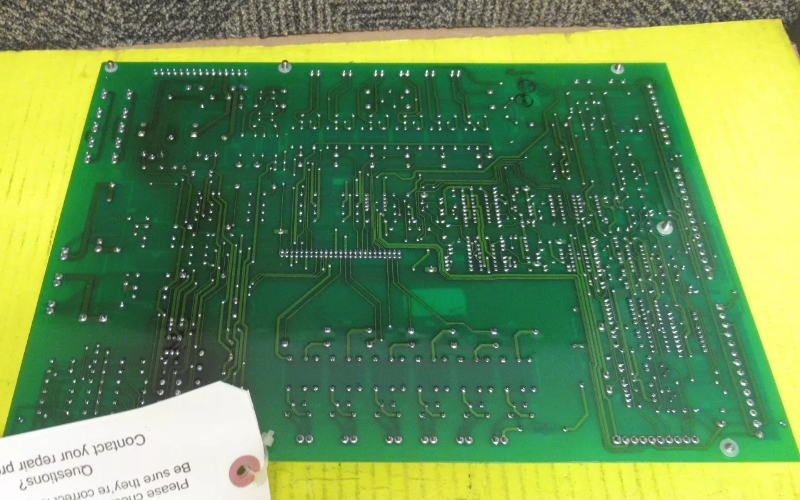

SIEMENS A1-106-100-531 Drive Board

General Description

The SIEMENS A1-106-100-531 serves as a power interface PCB specifically for DC drives. Its robust design and advanced technology ensure optimal functionality in demanding environments, enhancing operational efficiency.

Technical Specifications

l Model Number: A1-106-100-531

l Type: Drive Board

l Weight: 1.71 lbs (approximately 0.78 kg)

l Power Supply: Compatible with standard DC drive systems

l Dimensions: Compact design for easy installation in control panels

Detailed Features

1. High Performance: Engineered for reliable power management in DC drive applications.

2. Robust Construction: Built to withstand the rigors of industrial environments, ensuring longevity.

3. Easy Integration: Designed for straightforward installation and compatibility with various systems.

4. User-Friendly Design: Simplifies operation and maintenance, reducing downtime.

The SIEMENS A1-106-100-531 is widely utilized in:

l Industrial Automation: Enhancing control over machinery and processes.

l Manufacturing Systems: Streamlining production lines through efficient power management.

l Energy Management: Optimizing energy consumption in various applications.

l HVAC Systems: Managing motor drives for heating, ventilation, and air conditioning.

To install the SIEMENS A1-106-100-531:

A. Ensure that the power supply is disconnected before installation begins.

B. Securely mount the drive board within the control panel or designated area.

C. Connect all wiring according to the provided schematic diagram.

D. Reconnect the power supply and conduct a functionality test to verify proper operation.

Related Part Numbers

l SIEMENS A1-106-100-530

l SIEMENS A1-106-100-532

l SIEMENS A1-106-100-533

For the previous part, please refer to the link: SIEMENS A1-106-100-522
