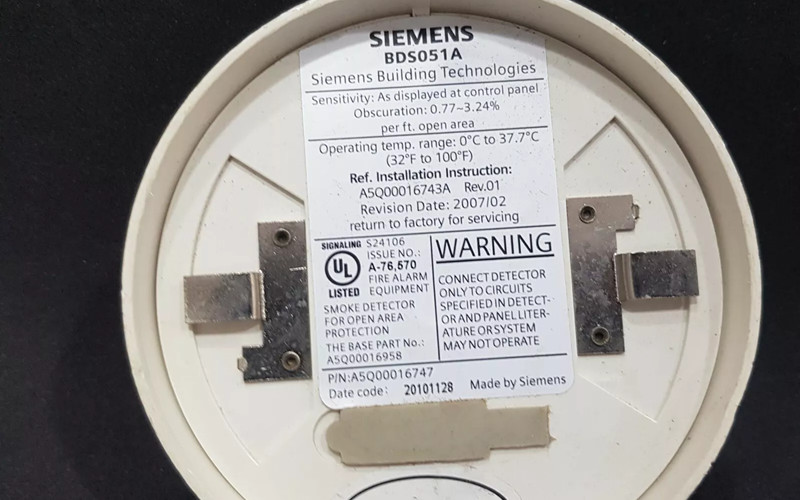

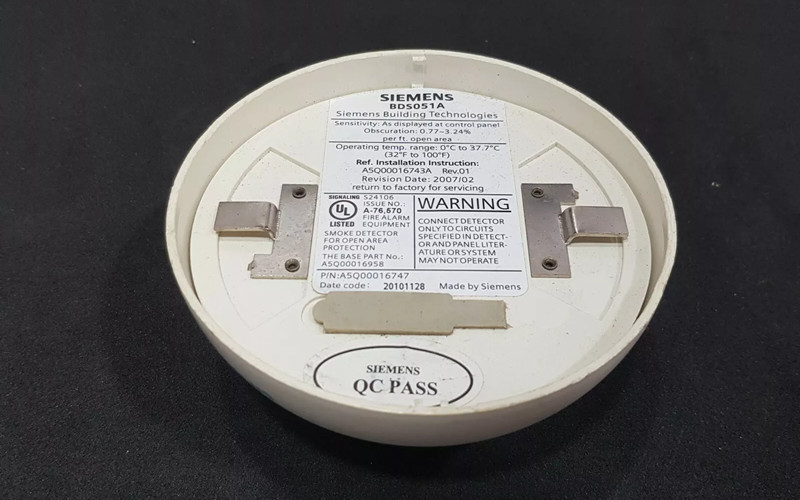

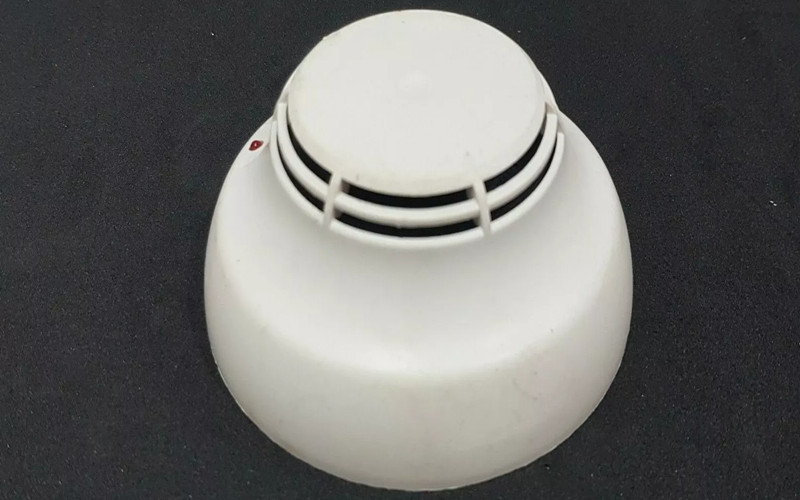

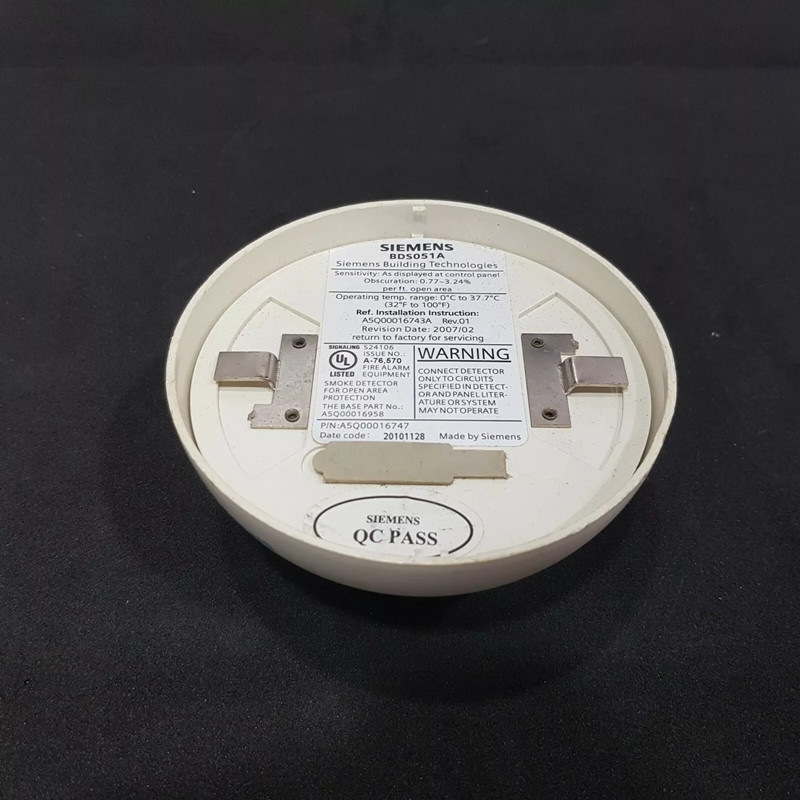

Siemens BDS051 Photoelectric Smoke Detector

General Description:

The Siemens BDS051 is a point-type photoelectric smoke detector with a high-quality smoke maze structure and ASIC chip technology. It is designed for early detection of fire smoke in internal spaces of buildings, particularly in areas where other types of detectors cannot be used due to smoke, dust, or emitted gases during operation. The BDS051 is part of the BC80 intelligent series of fire alarm and linkage systems installed on the BDS000 mounting base.

Technical Specifications of Siemens BDS051 :

l Operating Voltage: 16...32V DC

l Operating Temperature: -10...+50°C

l Storage Temperature: -30...+75°C

l Relative Humidity: ≤95% (40±2°C)

l Monitoring Current: ≤1mA (24V)

l Alarm Current: ≤3mA (24V)

l Electromagnetic Interference Resistance: 10V/m 1MHz～1GHz

l Confirmation Light: Stays on during alarm

Detailed Features:

The BDS051 features a new circuit structure for differential temperature detection and is known for its high stability. It is resistant to dust adhesion, electromagnetic interference, temperature effects, humidity, and corrosion. The temperature-sensitive elements are made of high-precision imported components, making them suitable for early fire detection in buildings.

Applications of Siemens BDS051:

The BDS051 is used in BC80 intelligent series fire automatic alarm and linkage systems. It provides early fire smoke detection and initiates alarm and linkage control through the controller. It is beneficial in spaces where other types of detectors are unsuitable due to smoke, dust, or emitted gases.

Installation of Siemens BDS051:

The BDS051 is installed on a wall or pre-embedded junction box using the BDS detector base. The base has two mounting holes spaced 62mm apart. The detector shell is aligned with the base’s positioning pin and then rotated clockwise to secure it in place. To remove the detector, rotate it counterclockwise.
