Siemens CTI 2560-A Analog Output Module

General Description

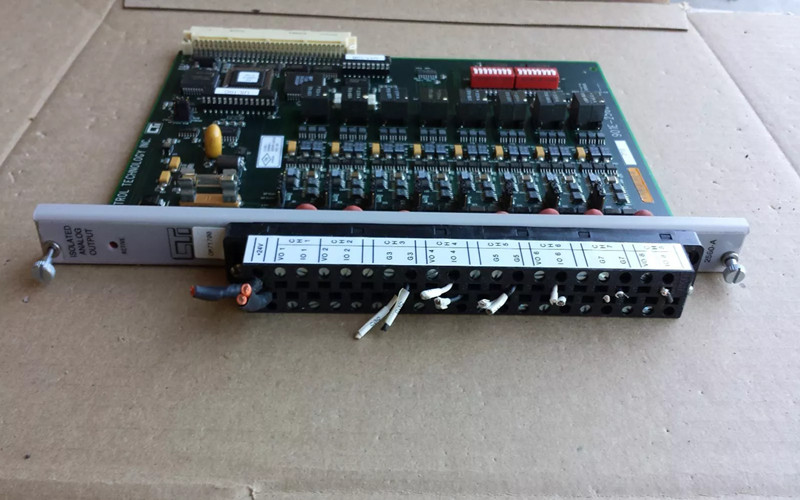

The Siemens CTI 2560-A is an eight-channel isolated analogue output module that facilitates precise control of analogue signals in automation systems. It is part of the CTI 2500 Series and is a compatible replacement for Siemens' older models. This module is ideal for applications requiring high-quality signal output and robust performance.

Technical Specifications

l Model Number: CTI 2560-A

l Type: Analog Output Module

l Channels: 8 isolated analog outputs

l Output Range: Configurable (typically 0-10V or 4-20mA)

l Isolation Voltage: 1500V channel-to-backplane isolation

l Operating Temperature: 0°C to 60°C

l Storage Temperature: -40°C to 85°C

l Relative Humidity: 5% to 95% (non-condensing)

Detailed Features

A. High Compatibility: Designed to work seamlessly with the Siemens CTI 2500 Series, ensuring easy integration into existing systems.

B. Isolated Outputs: Each output channel is electrically isolated, reducing the risk of interference and enhancing signal integrity.

C. Robust Construction: Built to withstand harsh industrial environments, ensuring durability and long-term reliability.

D. User-Friendly Configuration: Simplifies installation and setup processes, allowing for rapid application deployment.

The Siemens CTI 2560-A module is widely utilized in:

1. Manufacturing Automation: Providing precise control over machinery by delivering accurate analogue signals for operation.

2. Process Control Systems: Enabling effective management of processes through reliable signal transmission to actuators and controllers.

3. HVAC Systems: Facilitating control of heating, ventilation, and air conditioning systems by managing fan speeds and valve positions.

4. Water Treatment Facilities: Assisting in regulating pumps and valves through accurate analogue outputs, improving system efficiency.

To install the CTI 2560-A module:

l Preparation: Ensure that the system is powered down before installation.

l Mounting the Module: Insert the module into the designated CTI 2500 Series base slot.

l Wiring Connections: Connect necessary input/output wires according to application requirements.

l Powering Up: Turn on the system and verify that the central controller recognizes the module.

Related Part Numbers

l CTI 2551-A (8-channel thermocouple input module)

l CTI 2555-A (16-channel analog input module)

l CTI 2572 (Ethernet TCP/IP adapter)
