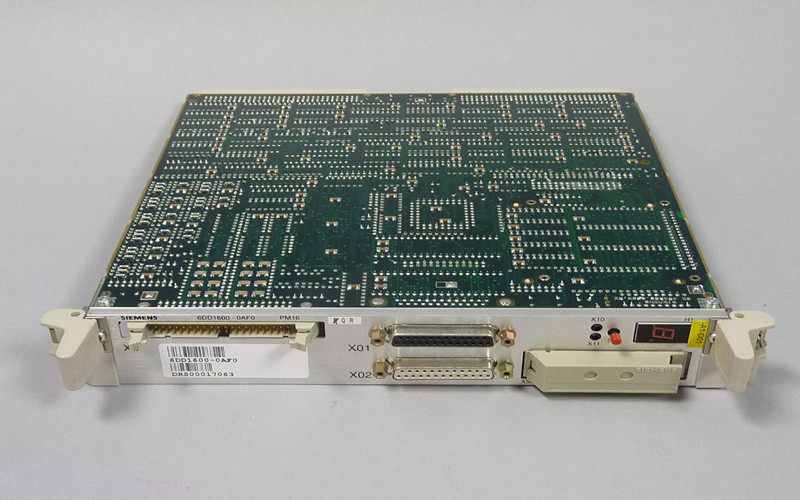

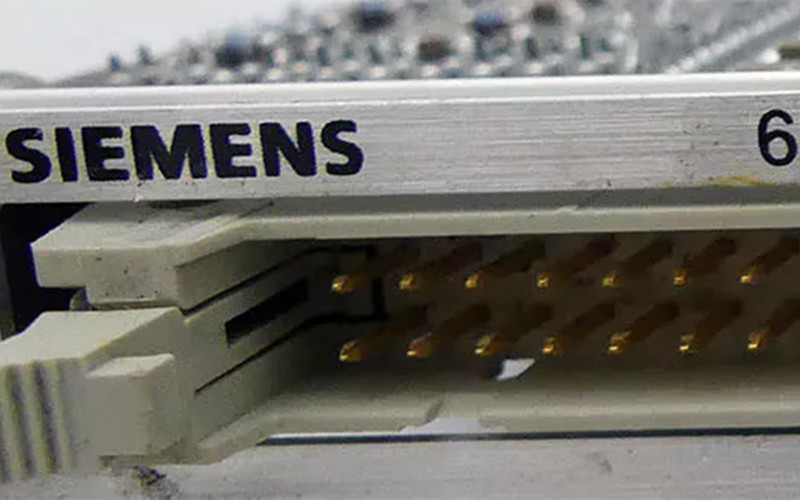

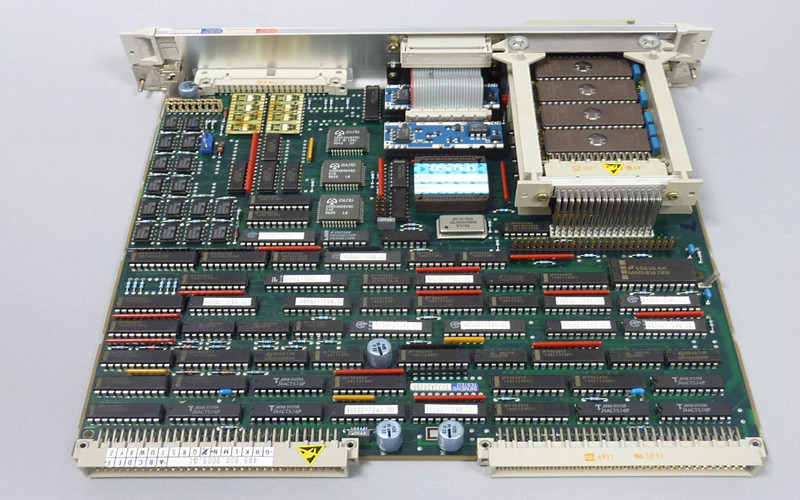

SIEMENS DD1600-0AF0 Digital Input Module

General Description

The SIEMENS DD1600-0AF0 is a high-performance digital input module designed for use with Siemens S7-1200 and S7-1500 PLC systems. It features 16 digital inputs, allowing multiple sensors and switches to be connected. Its compact design and robust construction ensure it can operate effectively in demanding industrial environments.

Technical Specifications

l Type: Digital Input Module

l Number of Inputs: 16

l Input Voltage Range: 24 V DC

l Input Current: 5 mA per channel

l Isolation Voltage: 500 V AC

l Response Time: ≤ 1 ms

l Operating Temperature Range: -20°C to +60°C

l Dimensions: Compact form factor suitable for DIN rail mounting

Detailed Features

l High Density: Supports up to 16 digital inputs in a single module, optimizing space in control panels.

l LED Indicators: Each input channel has an indicator for easy status monitoring.

l Wide Compatibility: Compatible with various Siemens PLCs, enhancing integration flexibility.

l Robust Design: Built to withstand harsh industrial conditions, ensuring long-term reliability.

The SIEMENS DD1600-0AF0 is widely used in:

1. Manufacturing Automation: Connecting to sensors that monitor machine status and operational conditions.

2. Process Control Systems: Data from switches and sensors is gathered to manage processes efficiently.

3. Building Automation: Integrating security systems, lighting controls, and HVAC systems for effective management.

To install the DD1600-0AF0 module:

A. Turn off the power to the control system before installation.

B. Mount the module securely on a DIN rail within the control cabinet.

C. Connect the digital inputs from sensors or switches to the terminal blocks on the module.

D. Ensure proper wiring according to the specifications outlined in the installation manual.

E. Power up the system and verify functionality through LED indicators.

Related Part Numbers

l Siemens S7-1200 Series Controllers (e.g., CPU 1214C)

l Siemens S7-1500 Series Controllers (e.g., CPU 1516F)
