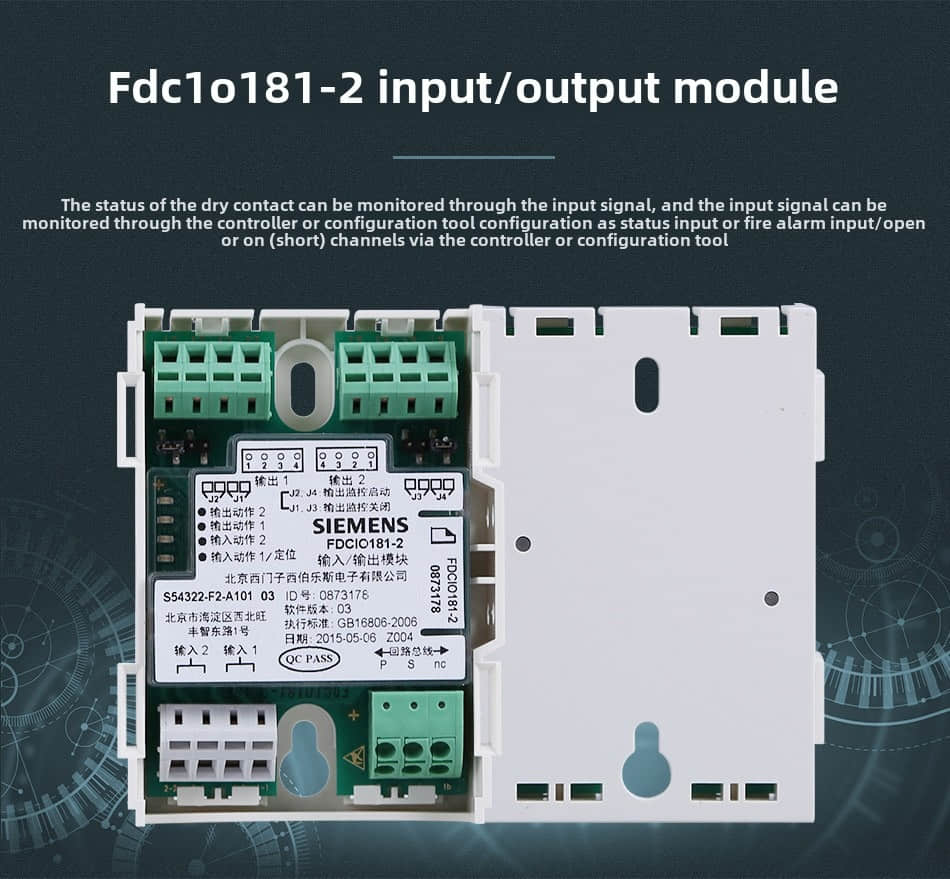

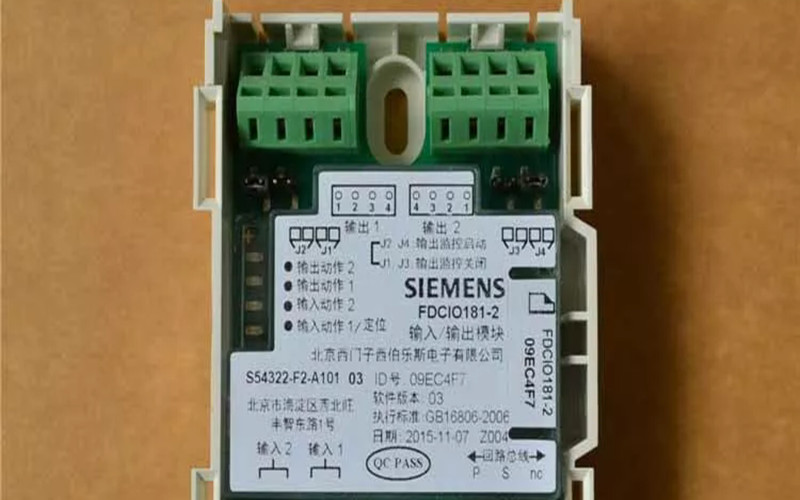

Siemens FDCIO181 Input/Output Module

General Description: The Siemens FDCIO181 Input/Output Module is a versatile and reliable component for Siemens fire detection systems, designed to integrate seamlessly with control panels and peripheral devices. It supports a range of digital input and output connections, offering excellent scalability and flexibility for large-scale fire safety installations. Ideal for industrial, commercial, and residential applications, the FDCIO181 enables efficient and reliable fire alarm signaling and control.

Technical Specifications of Siemens FDCIO181:

l Model: FDCIO181

l Type: Input/Output Module

l Communication Protocol: FDnet (Siemens Fire Detection Network)

l Inputs: 8 digital inputs (24VDC) for connecting fire detection devices (e.g., smoke detectors, manual call points)

l Outputs: 8 relay outputs for activating external devices (e.g., alarms, fire dampers, fans, doors)

l Power Supply: Powered via FDnet network or external 24 VDC supply

l Operating Voltage: 24 VDC (via FDnet or external supply)

l Operating Temperature: -10°C to +55°C

l Storage Temperature: -40°C to +70°C

l Humidity Range: 0% to 95% relative humidity, non-condensing

l Protection Rating: IP30 (dust and physical protection)

l Mounting: DIN rail mounting

l Dimensions: 145 mm x 120 mm x 35 mm (L x W x H)

l Weight: 0.25 kg

l Compatibility: Compatible with Siemens fire control panels such as FC2020, FC2040, and other Siemens fire detection systems

Detailed Features of Siemens FDCIO181 :

1. Digital Inputs: This device provides eight digital inputs for direct connection to various fire detection devices, such as smoke detectors, heat detectors, and manual call points, ensuring quick and accurate detection of fire hazards.

2. Relay Outputs: This unit includes eight relay outputs that can activate external devices like alarms, ventilation fans, fire dampers, or automatic doors when a fire event is detected. This allows for automated control of emergency systems.

3. Seamless Integration: Fully integrates with Siemens FDnet, providing reliable communication between the fire detection devices and control panels for real-time updates and status monitoring.

4. Wide Temperature Range: The FDCIO181 can operate in harsh environments and has an extended temperature range of -10°C to +55°C, making it suitable for industrial and commercial applications.

5. Robust Construction: Housed in a durable IP30-rated enclosure, the module is designed to withstand environmental factors such as dust and mechanical stress, ensuring long-term performance.

6. Low Power Consumption: Operates efficiently with low power consumption, drawing a maximum of 75mA from the FDnet network, minimizing system load and reducing operational costs.

7. DIN Rail Mounting: The module is designed for easy and flexible installation using standard DIN rails, simplifying integration into existing fire control panels and systems.

Applications of Siemens FDCIO181 :

A. Industrial facilities and manufacturing plants

B. Oil and gas refineries

C. Power plants and energy production facilities

D. Large commercial buildings and office complexes

E. Hospitals, healthcare facilities, and research centers

F. Airports, transportation hubs, and public spaces

G. Educational institutions and large campuses

H. Warehouses, storage facilities, and logistics centers

I. High-rise buildings and residential complexes

Installation:

l Mounting: The FDCIO181 module should be mounted on a standard DIN rail inside the fire alarm control panel or system enclosure.

l Wiring: Connect the eight digital inputs to fire detection devices such as smoke detectors, heat sensors, or manual call points. Connect the eight relay outputs to external control systems, including alarms, fire dampers, or ventilation systems.

l Power Supply: Ensure the FDnet network or an external 24VDC supply powers the module for reliable operation.

l Configuration: Configure the module via the fire control panel, ensuring the inputs and outputs are correctly mapped to the corresponding devices and functions.

l Testing: Perform system checks to verify that the inputs and outputs function as expected and that the module communicates effectively with the fire alarm control panel.

Related Part Numbers of Siemens FDCIO181 :

l Siemens FDCIO182: A similar I/O module with additional relay outputs for larger fire detection systems.

l Siemens FC2020: Fire control panel compatible with FDCIO181 and other Siemens I/O modules.

l Siemens FDCIO183: Enhanced version of the FDCIO181 with extended input/output capacities and additional features.

l Siemens FC2040: Advanced fire control panel designed for larger systems, supporting multiple I/O modules like the FDCIO181.

l Siemens FDCIO200: A different I/O module connecting various fire safety devices to the Siemens FDnet network.

For the previous part, please refer to the link: Siemens FDCIO221.
