Siemens FDCL221-CN Input Module

The Siemens FDCL221-CN is a high-performance input module that enhances fire detection systems by providing reliable monitoring and control capabilities. This module is integral to fire safety solutions, allowing for seamless integration with various devices and ensuring effective communication within the system.

Technical Specifications

l Parameter Specification

l Operating Voltage 12–32 V DC

l Operating Current ≤ 0.1 mA (static)

l Activation Current ≤ 60 mA (continuous)

l Communication Protocol FDnet/C-NET

l Operating Temperature -10 to +55 °C

l Storage Temperature -20 to +70 °C

l Relative Humidity ≤ 95%

l Dimensions (mm) 207 x 119 x 50

l Weight 0.060 kg

Detailed Features of Siemens FDCL221-CN

l Monitoring Capabilities: The FDCL221-CN allows for monitoring various statuses, such as door positions or other critical inputs, enhancing overall safety.

LED Status Indicators: These are equipped with LEDs that indicate the operational status of the module, making it easy to identify any issues or operational states.

l Built-In Line Separator: This feature ensures reliable communication between devices connected to the fire detection system.

l Flexible Mounting Options: The module can be installed in various configurations, including U-rail or dedicated housing, providing versatility based on installation requirements.

Environmental Resistance: It is designed to withstand dust, humidity, and extreme temperatures, ensuring reliable performance in various environments.

Applications of Siemens FDCL221-CN

The Siemens FDCL221-CN input module is suitable for a wide range of applications where fire safety is critical:

A. Commercial Buildings: These are ideal for offices and retail spaces where monitoring entry points (like doors) is essential for safety protocols.

B. Industrial Facilities: Effective in factories and warehouses to monitor equipment and ensure quick response to potential fire hazards.

C. Educational Institutions: Implemented in schools and universities to enhance safety measures and provide immediate alerts during emergencies.

D. Healthcare Facilities: Critical in hospitals and clinics where rapid detection of fires can save lives and protect sensitive medical equipment.

E. The FDCL221-CN plays a vital role in comprehensive fire safety strategies by providing reliable monitoring capabilities that help protect lives and property.

Installation

Installing the Siemens FDCL221-CN is straightforward:

1. Select Mounting Location: For optimal visibility and accessibility, choose an accessible location on a U-rail or within an appropriate housing unit.

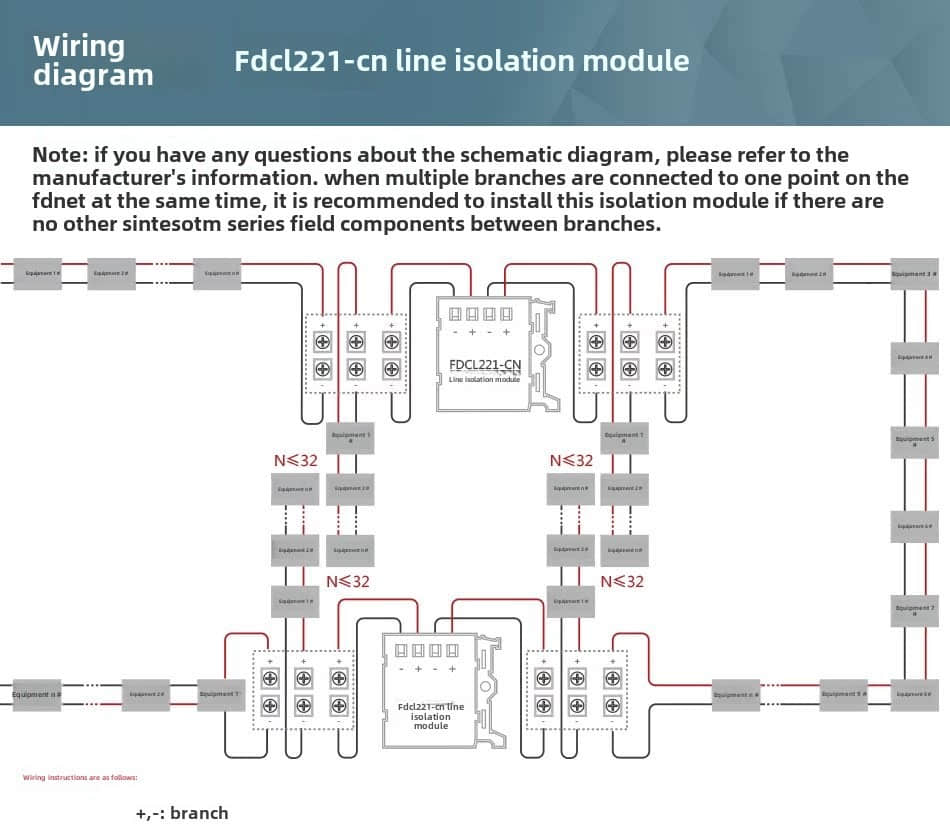

2. Wiring Connections: Connect the input module to the detector line following the wiring diagram provided in the installation manual.

3. Configuration: Use the control panel to configure the module, including setting up automatic addressing and testing functionality.

4. Testing: Conduct tests to ensure proper operation and communication with the control panel before finalizing installation.

5. By following these steps, users can ensure that the FDCL221-CN operates effectively within their fire detection systems.

Related Part Numbers of Siemens FDCL221-CN

l FDCH221 (Housing for Modules)

l FDCIO221 (Input/Output Module)

Previous:  FDO181C
