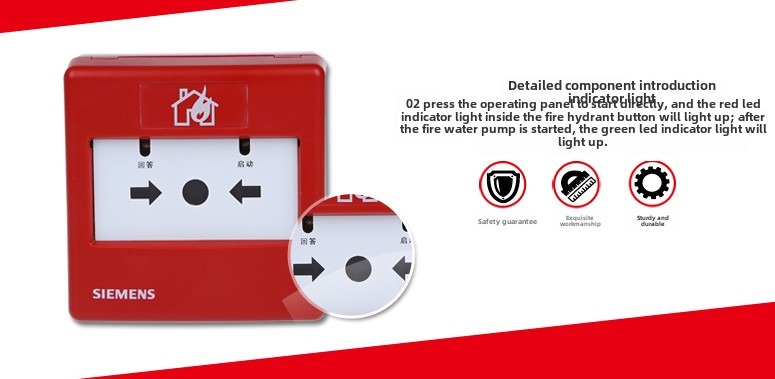

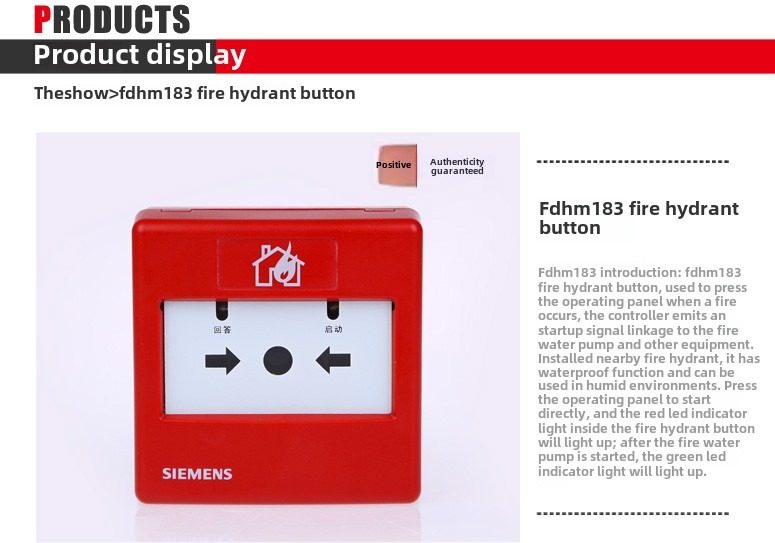

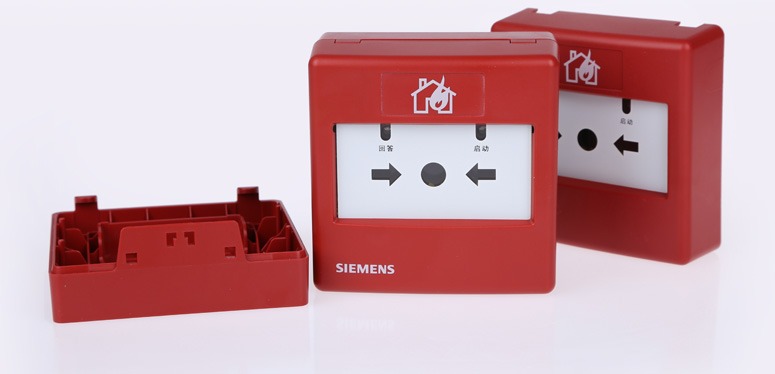

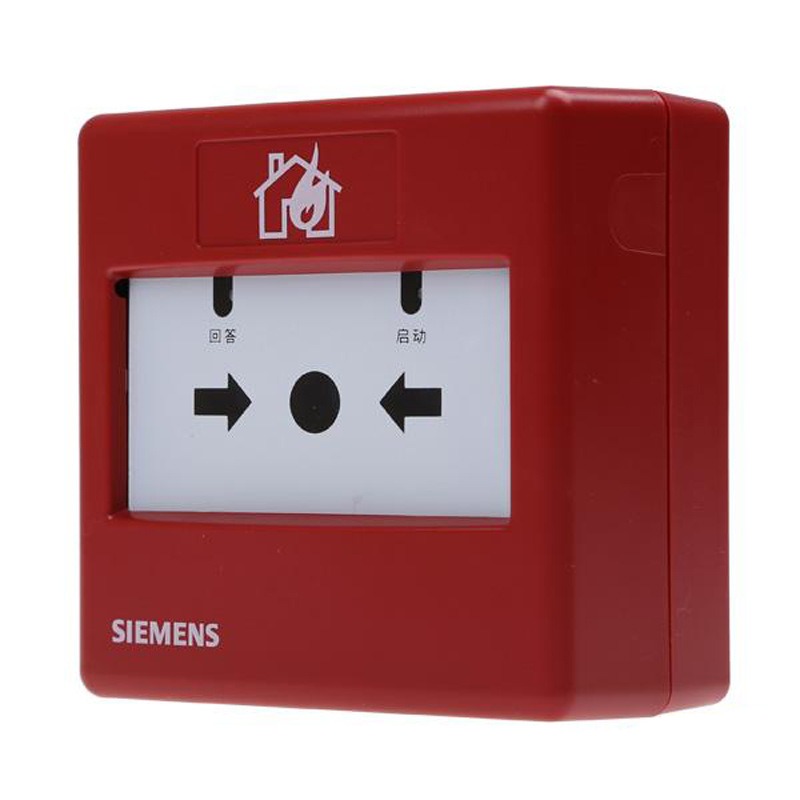

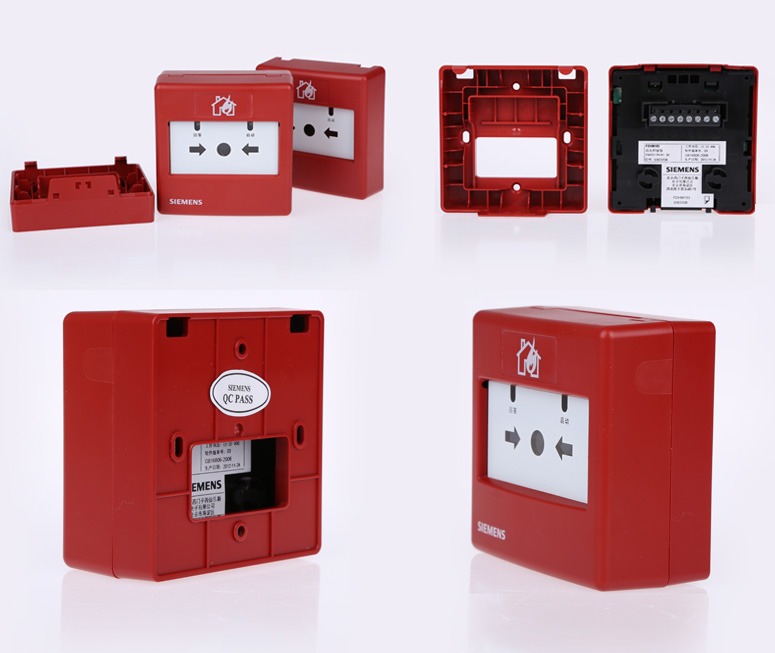

Siemens FDHM183 Manual Call Point

General Description

The Siemens FDHM183 is a reliable and efficient manual call point designed to provide rapid manual fire alarm activation in emergencies. Engineered with high-quality components, the FDHM183 is well-suited for integration into Siemens’ fire safety systems. Its durable construction and precise performance make it ideal for various environments, ensuring swift emergency response. The FDHM183 is straightforward, featuring a manual push mechanism and a convenient key reset option for quick restoration after testing or alarms.

Technical Specifications of Siemens FDHM183

l Manufacturer: Siemens

l Model: FDHM183

l Type: Manual Call Point

l Input Voltage: 24 V DC

l Power Consumption: 1.5 W

l Activation Method: Manual push

l Dimensions: 90 mm x 90 mm x 42 mm

l Operating Temperature: -10°C to +55°C

l Humidity: 0% to 95% non-condensing

l Mounting Type: Surface-mounted

l Reset Method: Key resettable

l Colour: Red for high visibility

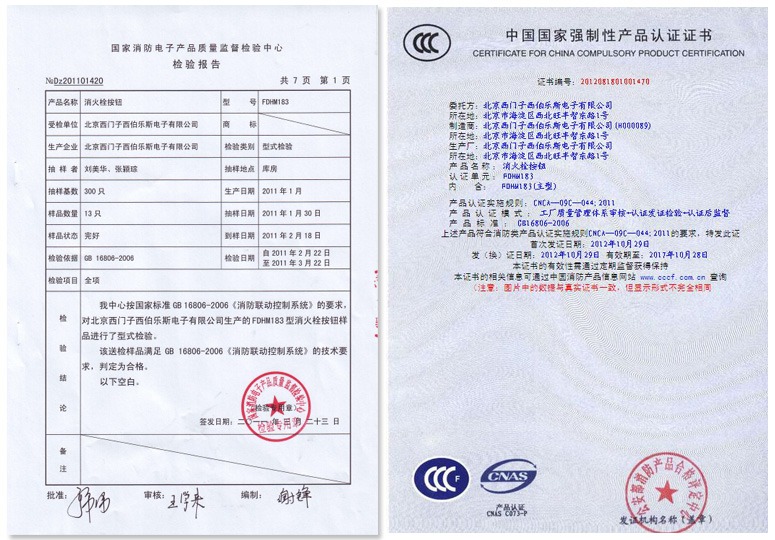

l Compliance: EN 54 compliant

l Weight: 150 grams

Detailed Features of Siemens FDHM183

l Reliable Manual Fire Alarm Activation

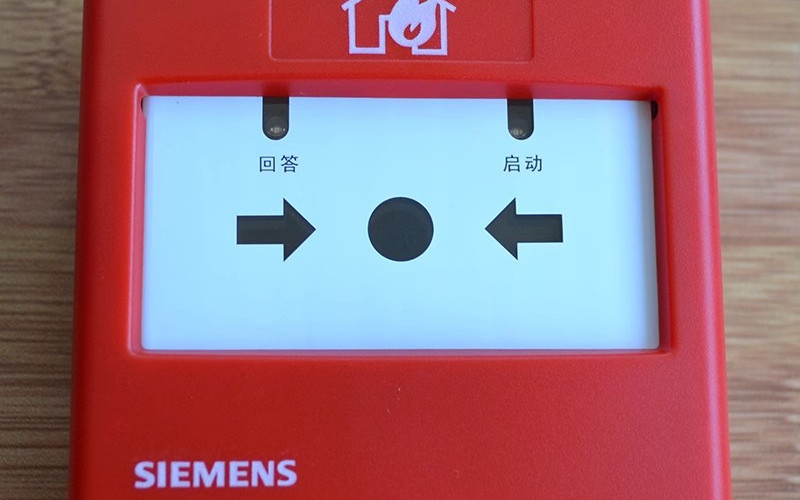

The FDHM183 allows immediate manual alarm activation by pressing the front cover, ensuring quick and effective emergency communication to the control panel.

l Durable and High-Quality Construction

Built to withstand demanding environments, the FDHM183 is designed with durable materials that ensure long-lasting performance, even in harsh industrial or commercial settings.

l Easy Reset with Key

The manual call point features a simple reset function using a key, enabling quick device restoration after drills or false alarms. This minimizes downtime and maintains the device’s readiness for real emergencies.

l High Visibility for Easy Access

The FDHM183 is strikingly red, making it easy to identify and access in emergencies, reducing response times, and enhancing safety.

Applications of Siemens FDHM183

The Siemens FDHM183 is suitable for a wide range of applications, including:

l Commercial Buildings: Ideal for offices, shopping centers, and public venues requiring reliable manual fire alarm solutions.

l Industrial Facilities: Perfect for manufacturing plants, warehouses, and heavy-duty environments where quick manual alarm activation is essential.

l Healthcare Settings: Enhances fire safety in hospitals, clinics, and care facilities, ensuring easy access for staff during emergencies.

l Educational Institutions: Provides efficient fire alarm capabilities in schools, colleges, and universities, safeguarding students and personnel.

Installation of Siemens FDHM183

1. Mounting: Choose a suitable surface for installation and securely mount the FDHM183 in a clearly visible and easily accessible location.

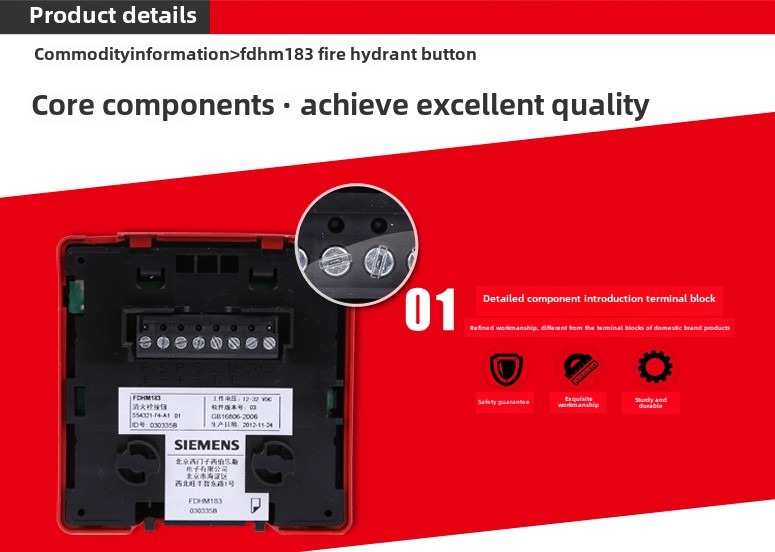

2. Wiring: Connect the device to a 24 V DC power source and integrate it with the building’s fire alarm system according to Siemens’ guidelines.

3. Testing: Conduct functional tests to confirm the alarm works correctly. After testing, use the key to reset the manual call point.

4. Maintenance: Inspect and maintain the FDHM183 to ensure optimal performance. Keep the cover clean and test periodically to verify functionality.

Related Part Numbers

l Siemens FDHM185: Enhanced model with additional safety features.

l Siemens FDHM190: Weather-resistant variant for outdoor applications.

l Siemens FDHM195: Explosion-proof version for hazardous areas.
