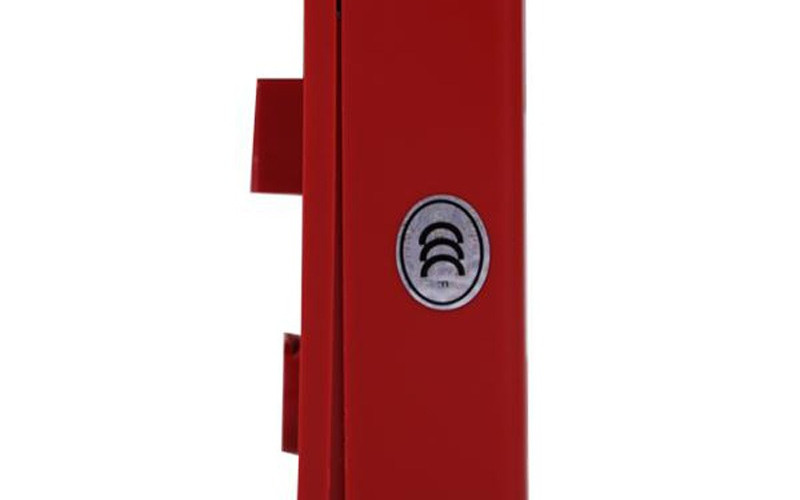

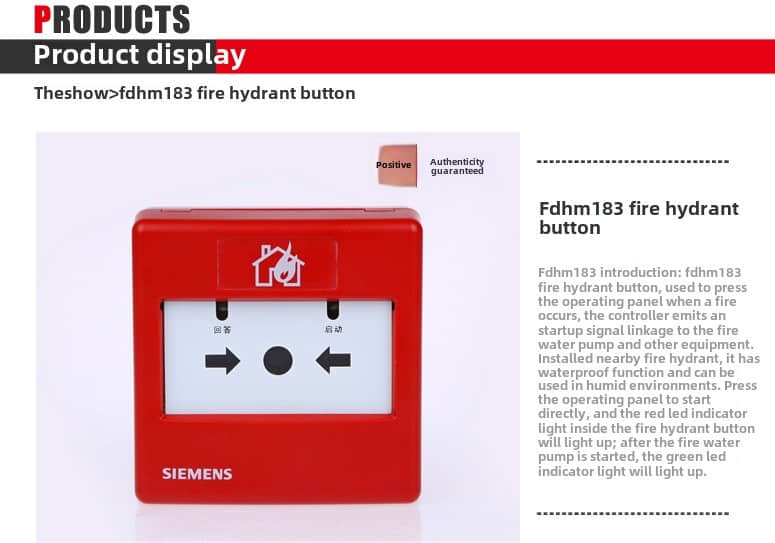

Siemens FDM183 Manual Call Point

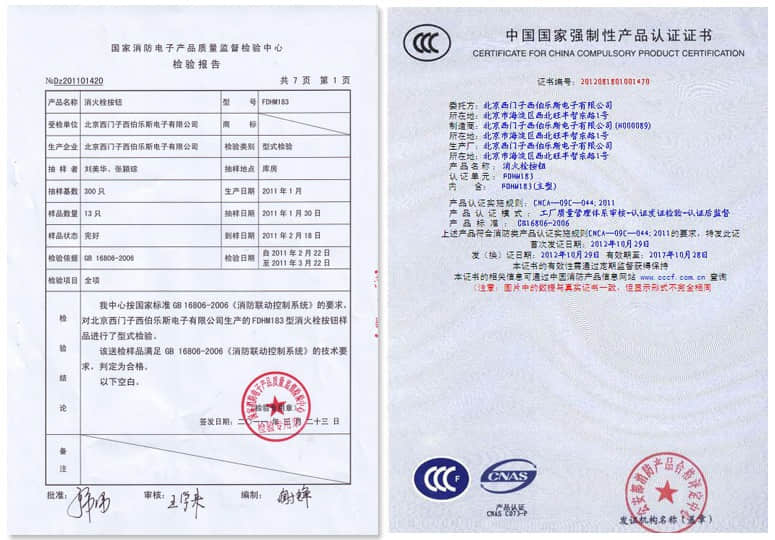

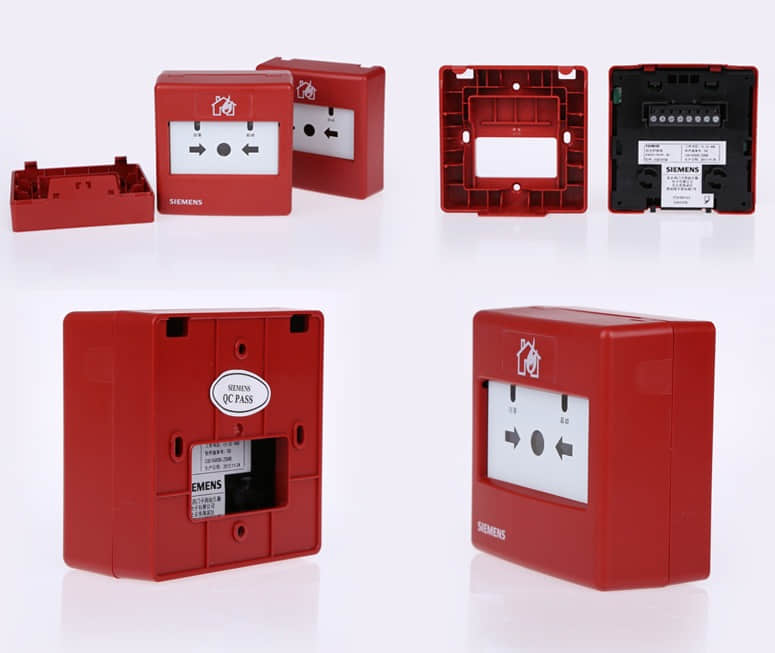

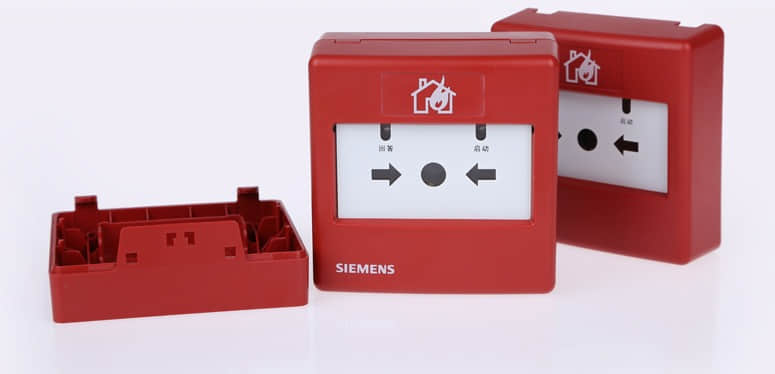

The Siemens FDM183 is a manual fire alarm call point designed for immediate alarm activation in fire emergencies. It consists of a call button and a base, ensuring quick response times during critical situations. This device meets national standards GB19880-2005, making it a reliable choice for fire safety systems.

Technical Specifications of Siemens FDM183

l Parameter Specification

l Operating Voltage 12~32VDC

l Storage Temperature -20~75°C

l Static Operating Current 0.22mA

l Relative Humidity ≤95%

l Activation Current 1.0mA

l Communication Protocol FD18-BUS

l Operating Temperature -10~55°C

l Load Factor 1

Detailed Features

l Manual Activation: The FDM183 allows users to manually trigger alarms during emergencies, providing an essential safety feature in fire protection systems.

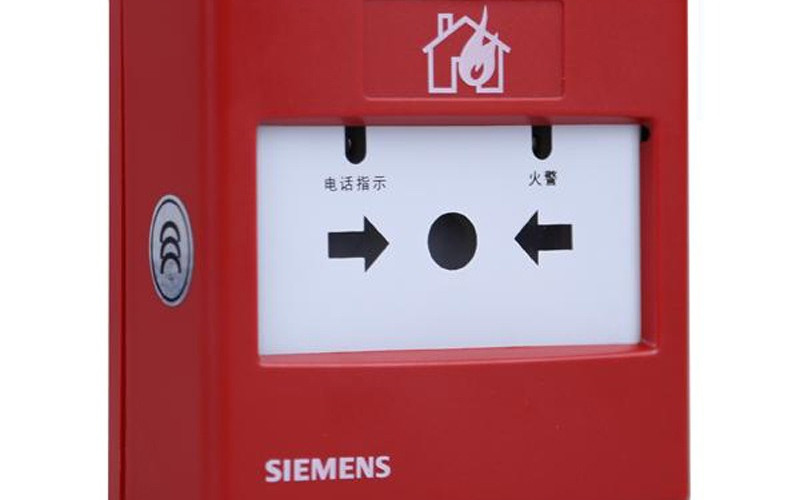

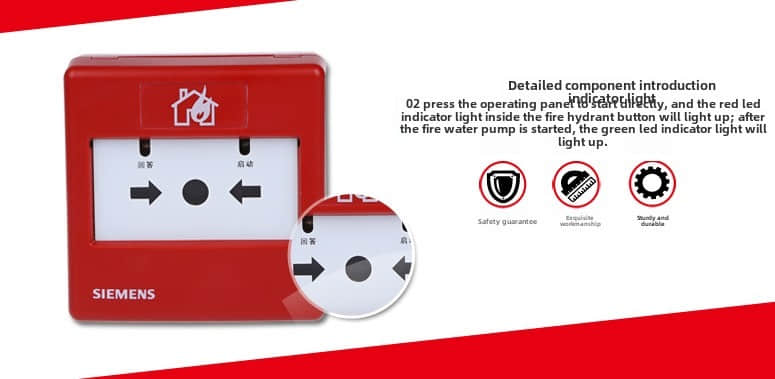

LED Indicators: The device includes a fire alarm LED that displays normal, alarm, and test statuses, along with a telephone LED indicating phone status.

l Automatic Addressing: Each call point is independently addressed without requiring an encoder or dip switch settings, simplifying installation.

l Integrated Phone Socket: The unit features a 3.5mm phone jack for easy connectivity.

l Eco-Friendly Materials: Constructed from materials that comply with RoHS standards, ensuring environmental safety.

Applications of Siemens FDM183

The Siemens FDM183 manual call point is ideal for various environments where fire safety is paramount. Its applications include:

A. Commercial Buildings: Used in offices, retail spaces, and public buildings to ensure quick fire alarm activation.

B. Industrial Facilities: Essential in factories and warehouses where rapid response to fire hazards can prevent significant damage or injury.

C. Educational Institutions: Implemented in schools and universities to provide a safe environment for students and staff.

D. Healthcare Facilities: Critical in hospitals and clinics where immediate action can save lives during emergencies.

E. The FDM183 is particularly effective in areas that require frequent monitoring and quick access to emergency services, making it a vital component of any comprehensive fire safety strategy.

Installation of Siemens FDM183

The installation of the Siemens FDM183 is straightforward:

1. Mounting Location: Choose an accessible location at an appropriate height for easy manual Activation.

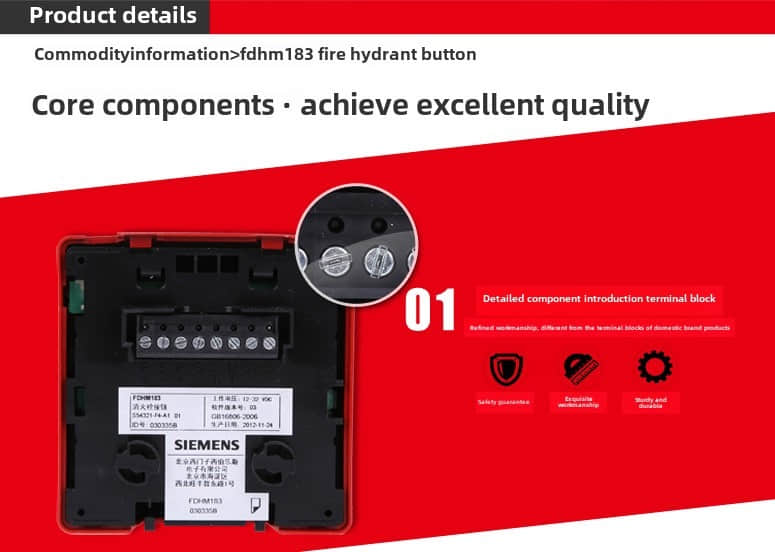

2. Wiring Connections: Connect the device to the FD18-BUS system per the wiring diagram provided in the installation manual.

3. Testing: After installation, conduct thorough testing to ensure proper functionality and communication with the control panel.

4. Following these steps, Users can ensure that the FDM183 operates effectively within their fire alarm system.
