Siemens JTGB HF DF1101 Ex Flame Detector

I. Product Overview:

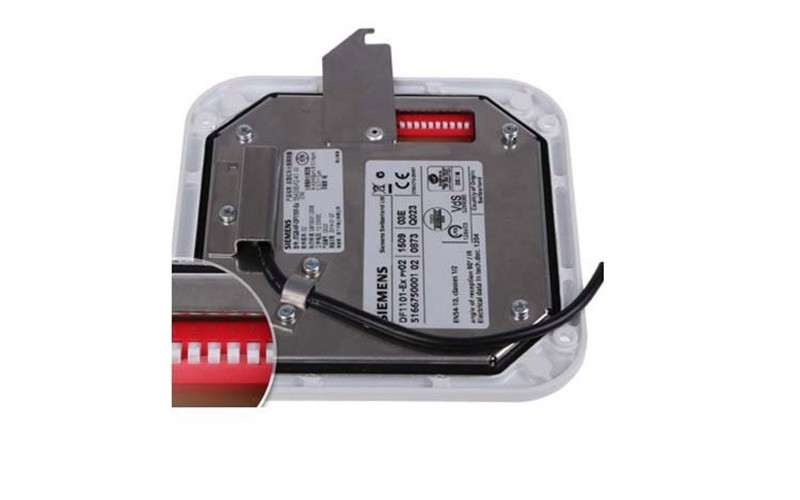

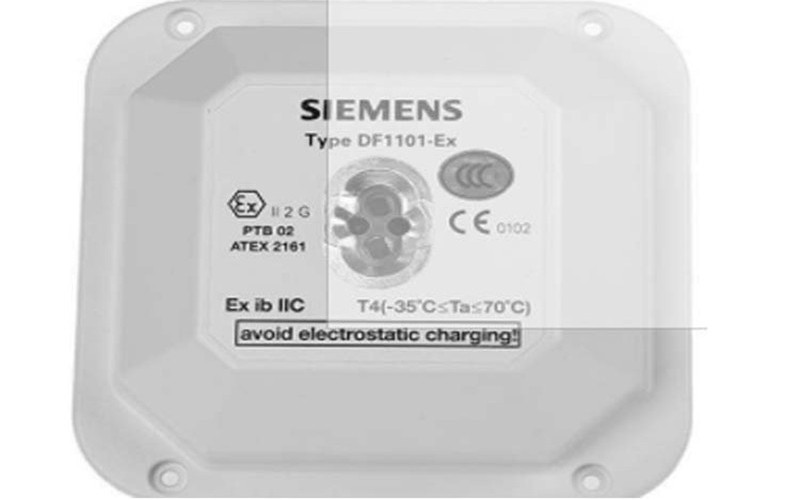

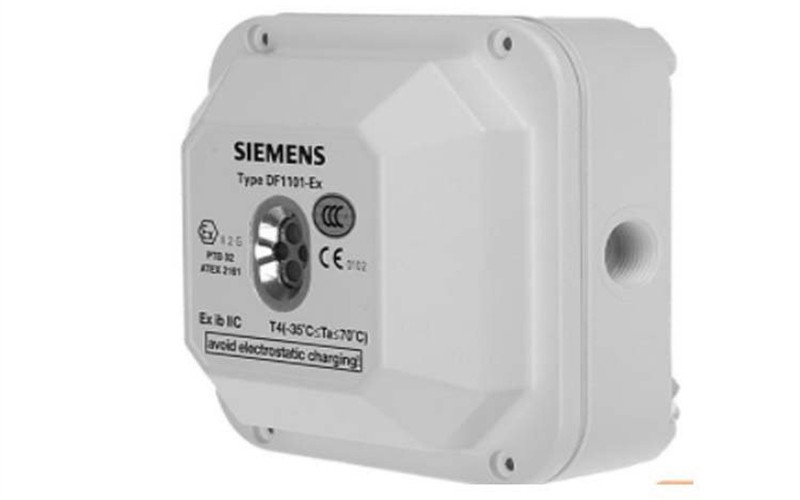

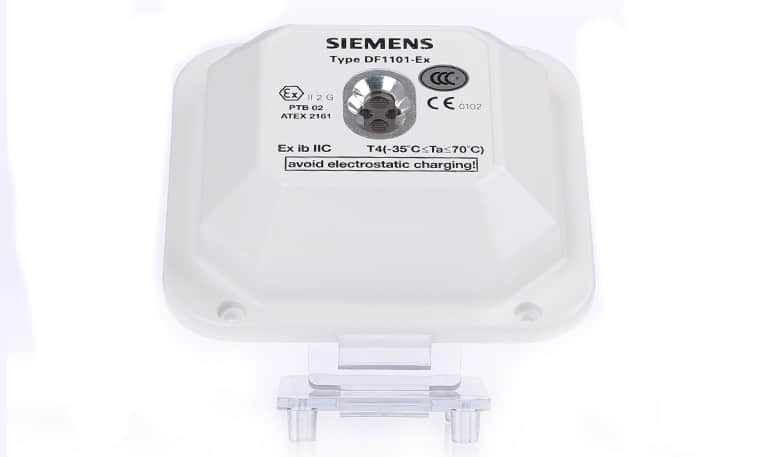

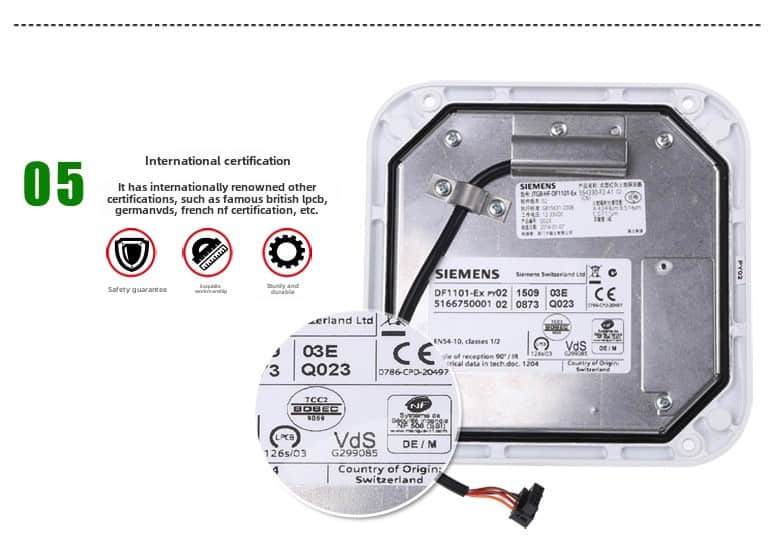

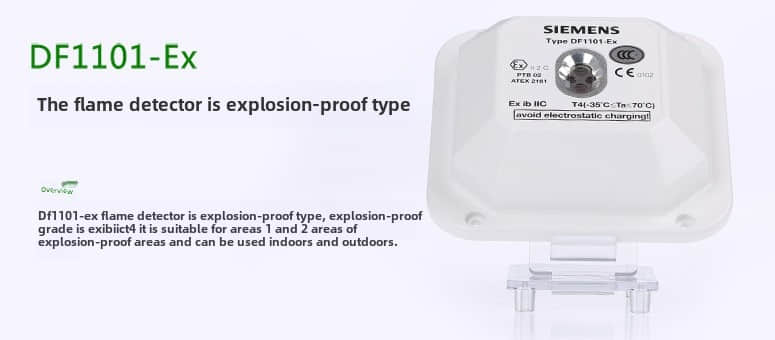

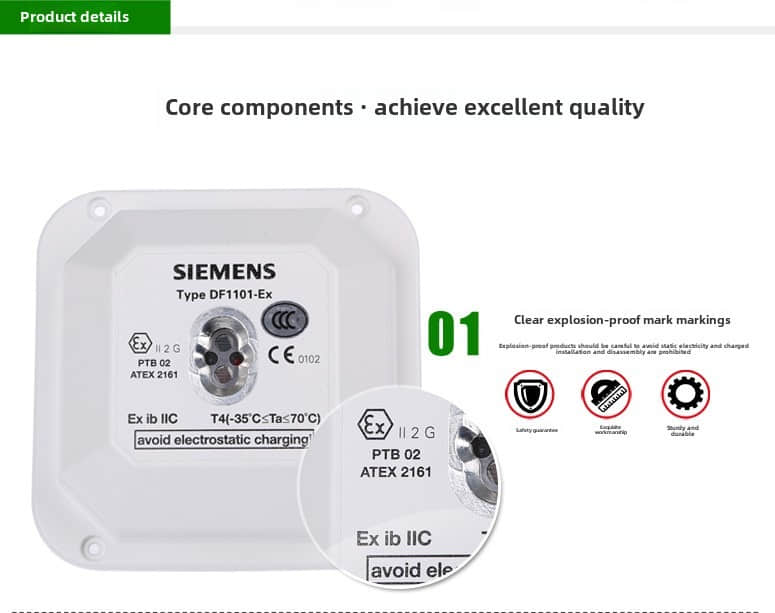

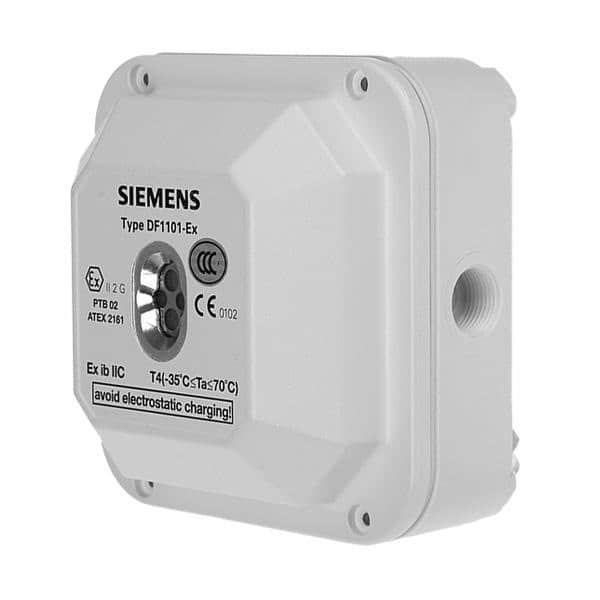

The Siemens JTGB-HF-DF1101-Ex is a highly sensitive infrared flame detector designed for use in explosion-proof areas. It combines advanced detection technology with robust safety features, making it ideal for environments with high fire risks.

Key Features:

1. High Anti-False Alarm Capability:

    Equipped with a unique fuzzy algorithm and the latest harmonic analysis function to significantly reduce false alarms.

2. Strong Anti-Interference:

    Resistant to electromagnetic interference, sunlight, thermal radiation, Humidity, and corrosion, ensuring reliable performance in various environmental conditions.

3. Wide Application Range:

    Suitable for indoor and outdoor use, capable of detecting fires caused by flammable liquids, gases, and carbon-containing materials like wood, plastic, gas, and petroleum.

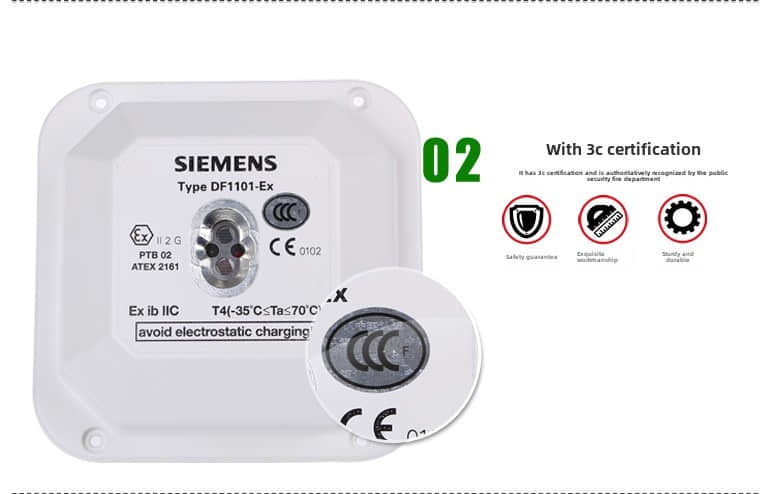

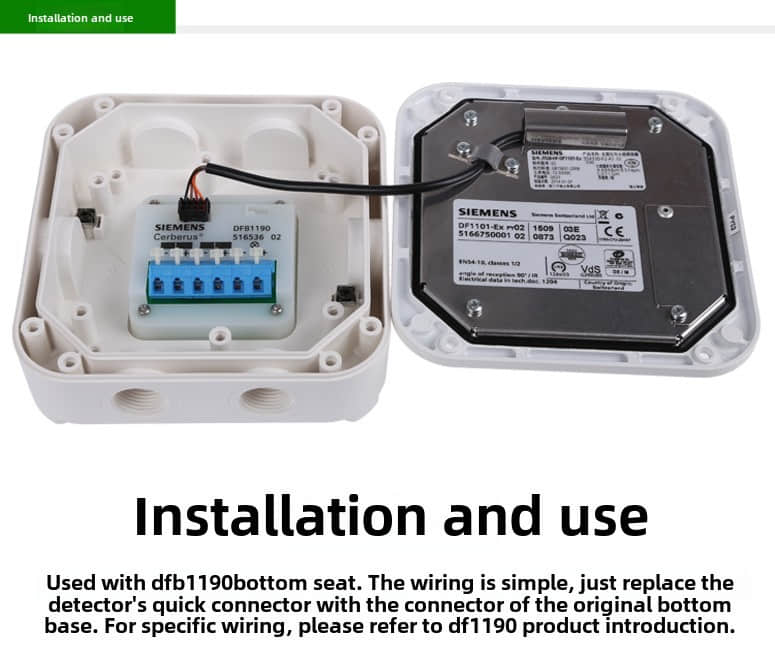

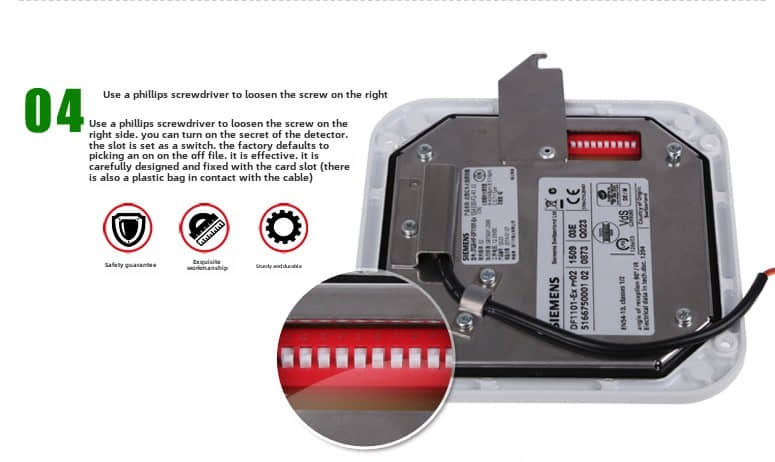

4. Easy Installation:

   It supports a simple two-wire installation and a wide viewing angle (minimum 90°). It can be easily connected to Siemens interactive or non-addressable detection systems.

5. Emergency Operation Function:

   Includes emergency operation and short-circuit isolation functions to ensure uninterrupted operation during critical situations.

II.Technical Features:

1. Microprocessor-Controlled Signal Evaluation:

   Advanced microprocessor technology improves the accuracy of signal processing and detection.

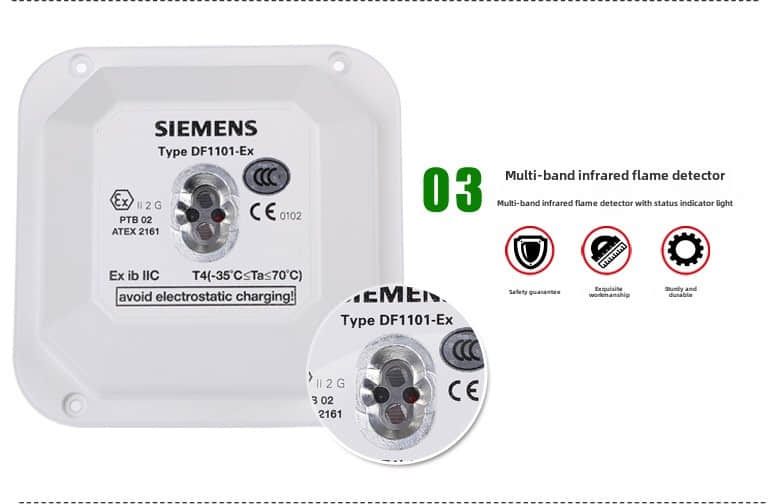

2. Dual-Band Detection:

   Utilizes dual-band detection technology to enhance sensitivity to different types of flames.

3. Wide Operating Temperature Range:

   Designed to function within a broad temperature range of -35°C to +70°C, adapting to diverse environmental conditions.

4.IP67 Protection:

   With an IP67 protection rating, the detector is suitable for harsh environments, providing excellent resistance to dust and water.

III. Product Specifications:

·Operating Voltage (Static): 16~28VDC

·Operating Current (Static): 0.5mA

·Switch Closure Current: 0.7mA

·Detector Sensitivity (Standard): 23 meters

·Alarm Voltage: 5V15mA)

·Enhanced Sensitivity: 46 meters

·Reset Voltage: 2V~5V

·Response Time (Standard): 6 seconds

·Enhanced Response Time: 12 seconds

·Reset Current: 5μA~500μA

·Reset Time: U≤2V2s

·Response Indicator Light Voltage: 3V~6V

·Protection Level: IP67

·Color Code: RAL9010

·Dimensions: 135 x 135 x 77 mm

·Weight: 0.5 kg

·Operating Temperature: -35°C to +70°C

·Storage Temperature: -40°C to +75°C

· Humidity: ≤100% relative humidity

IV. Industry Applications:

1. Petroleum and Chemical Industry:

It is ideal for detecting flames in highly flammable and explosive environments such as oil depots, refineries, and chemical processing plants.

2. Industrial Plants:

Monitors fire risks during industrial production processes where the handling of flammable materials is shared.

3. Tunnels:

oProvides critical flame monitoring in tunnels, ensuring traffic safety by detecting fires early.

4. Power Industry:

Used in power generation and distribution facilities, including substations and power plants, for reliable flame detection in critical areas.
