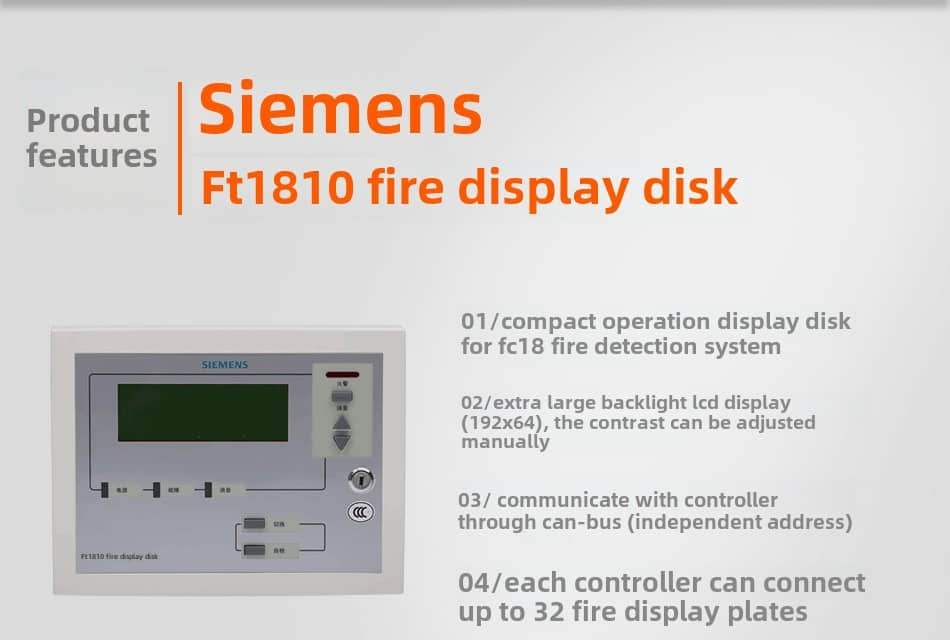

Siemens FT1810 Fire Indicator Panel

General Description

The Siemens FT1810 Fire Indicator Panel is a high-performance monitoring and control device that provides clear and immediate information about fire incidents within a building or facility. This panel has advanced display capabilities and intuitive controls, enabling quick identification and response to fire-related events. The FT1810 is suitable for integrating a wide range of fire safety systems, ensuring a centralized and reliable overview of fire safety status.

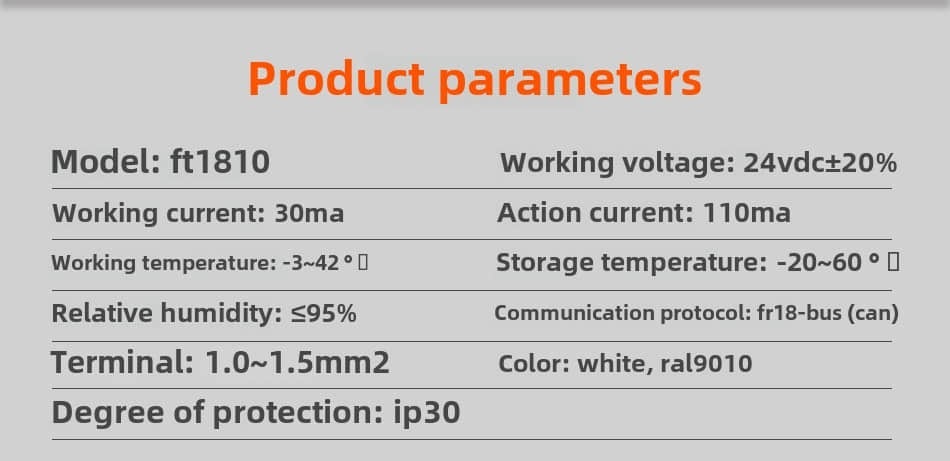

Technical Specifications of Siemens FT1810

l Display Type: High-contrast LED or LCD

l Input Voltage: 24V DC nominal

l Communication Interface: RS-485 or proprietary Siemens communication protocol

l Zones Supported: Multiple, with customizable configuration

l Alarm Indicators: Visual (LED) and audible alarms

l Operating Temperature: -5°C to 45°C (23°F to 113°F)

l Humidity Range: 10% - 90% relative humidity (non-condensing)

l Dimensions: 240mm x 180mm x 60mm (Height x Width x Depth)

l Weight: 1.2 kg

l Material: Flame-retardant plastic enclosure

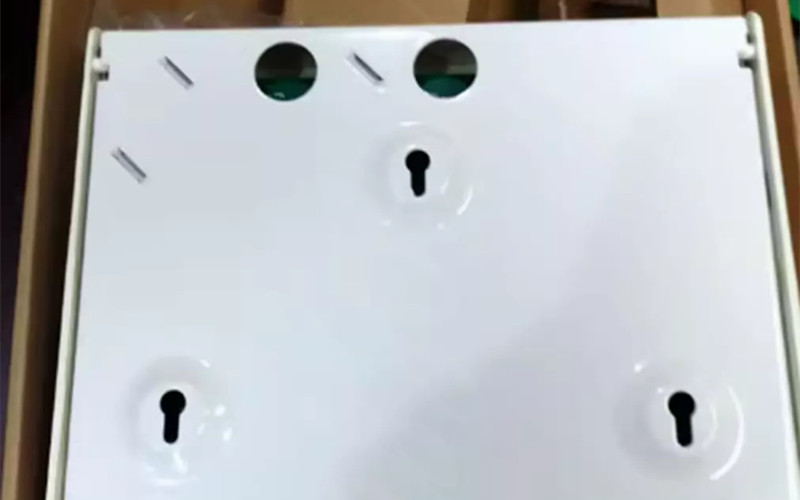

l Mounting: Wall-mounted

Detailed Features of Siemens FT1810

A. Clear and Intuitive Display: It is equipped with a bright LED or LCD screen for easy reading, even in low-light conditions, and provides real-time fire status updates and system information.

B. Multi-Zone Monitoring: This feature supports multiple fire detection zones and has customizable settings for various facility layouts, enabling precise monitoring and alarm response.

C. Reliable Communication: Utilizes Siemens’ proprietary communication protocols for secure and reliable data transfer, ensuring the integrity of fire alarm information.

D. User-Friendly Controls: The simple interface has clearly labeled buttons for navigation and configuration, making it easy to operate and manage.

E. Durable and Safe Design: Constructed with high-quality flame-retardant materials, the FT1810 is built to withstand demanding environments and ensure continuous operation.

F. Scalable Integration: It is compatible with Siemens fire alarm systems and third-party equipment, making it ideal for small-scale and large-scale fire safety networks.

Applications of Siemens FT1810

The Siemens FT1810 Fire Indicator Panel is ideal for:

1. Office buildings and corporate facilities

2. Industrial complexes and manufacturing plants

3. Hospitals and healthcare centers

4. Educational institutions and universities

5. Commercial spaces such as malls and retail stores

6. Public infrastructure, including airports, train stations, and government buildings

Related Part Numbers of Siemens FT1810

l FT1820 - Advanced Fire Indicator Panel with touch-screen interface

l FT1830 - Multi-zone Fire Indicator Panel with extended connectivity options

l FT1840 - High-Capacity Fire Indicator Panel for large-scale installations

For the previous part, please refer to the link: Siemens HI820
