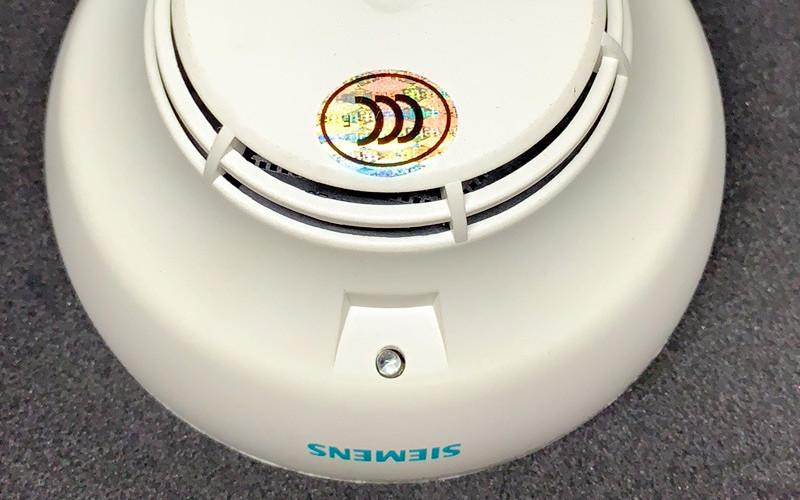

Siemens JTY-GDIBDS051 Point Type Photoelectric Smoke Fire Detector

Product Description of Siemens JTY-GDIBDS051 :

The Siemens JTY-GDIBDS051 is a point-type photoelectric smoke fire detector designed for the early detection of fires in various industrial and commercial settings. It features an optical sensor that uses light scattering to detect smoke particles effectively. The detector is equipped with a microprocessor for intelligent signal processing and boasts a high level of immunity to false alarms due to its advanced algorithms and wavelet analysis technology.

Application Scenarios of Siemens JTY-GDIBDS051:

It is ideal for use in public places such as hotels, office buildings, libraries, theatres, post office buildings, and other indoor areas with a fire risk but not typically filled with smoke. It is suitable for detecting fires in their early stages or smouldering fires that produce smoke.

Technical Specifications:

l Operating Voltage: DC 24V (19V to 27V) modulated, provided by the controller

l Monitoring Current: ≤0.3mA (DC24V)

l Alarm Current: ≤1mA (DC24V)

l Confirmation Light: Monitor status with momentary dim, alarm with constant bright (red)

l Communication Characteristics: Two-wire system (polarized)

l Addressing Range: 1-200

l Addressing Method: Electronic encoder

l Maximum transmission distance: 1000m

l Compatibility: JBF-11SF, JBF50XX and other series controllers

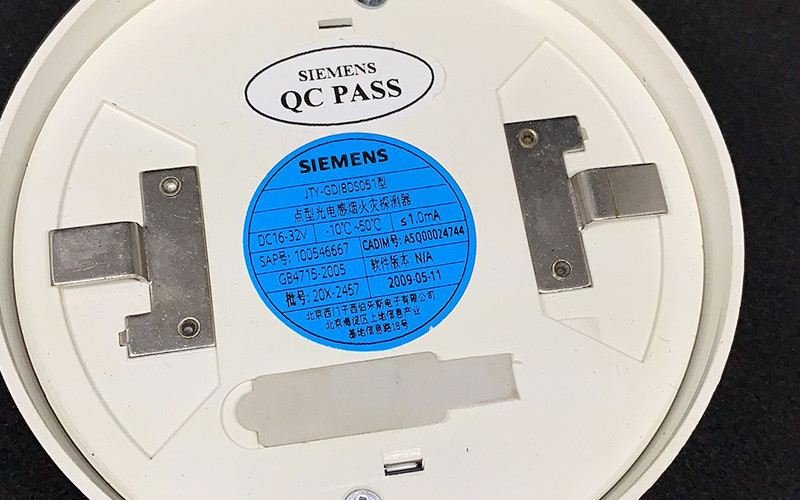

l Mechanical Characteristics: PANTONE Warm Gray 1 C beige colour, ABS shell material, product quality 92.5g, size Φ100mm × H 46mm (with base)

l Environmental Characteristics: Operating temperature -10～+55℃, Storage temperature -20～+65℃, Relative humidity ≤95% (no condensation)

l Explosion Protection Characteristics: Not applicable

l Certification Characteristics: Fire certification complies with GB 4715-2005 “Point Type Smoke Fire Detector.”

Installation and Maintenance of Siemens JTY-GDIBDS051:

The detector is installed using a base, and the wiring uses a two-wire system without polarity consideration. Regular checks and maintenance should be performed to ensure the detector’s functionality and to prevent false alarms.

Compatibility of Siemens JTY-GDIBDS051 :

Compatible with various controllers, ensuring seamless integration into existing fire alarm systems.

Maintenance:

Regular maintenance should be performed by专业人员 to ensure the device’s safety and functionality. This includes checking the detector’s integrity, cleaning contact points, and ensuring all connections are secure and correct.

Environmental Impact of Siemens JTY-GDIBDS051:

Siemens considers environmental factors in the design of the JTY-GDIBDS051, ensuring that the product has a minimal impact on the environment during production, use, and disposal.

Certifications and Standards:

The detector meets national standards such as GB 4715-2005 for point-type smoke fire detectors.
