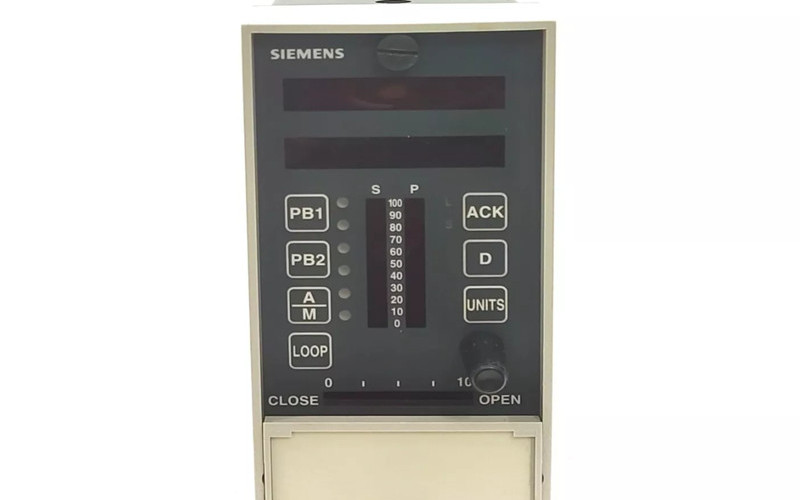

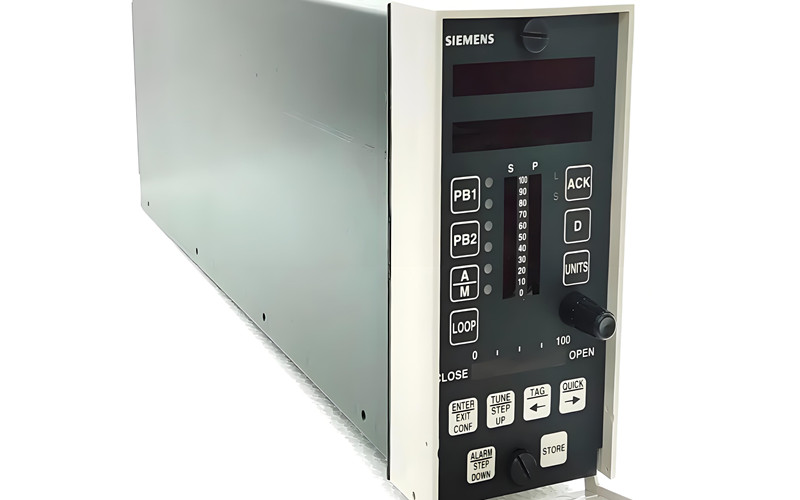

SIEMENS MOORE 15738-119 Digital Single Loop Controller

The Siemens Moore 15738-119 is part of the reliable Moore controller family, known for providing consistent, high-performance single-loop control in a wide range of industrial environments.

Technical Specifications of MOORE 15738-119 :

ü Manufacturer: Siemens

ü Model Number: 15738-119

ü Type: Digital Single Loop Controller

ü Input Types: Accepts various input signals, including thermocouples, RTDs, and analog signals (4-20 mA, 0-5V, etc.).

ü Output Types: Configurable analog and relay outputs for control applications.

ü Control Algorithms: Supports advanced PID control, on/off control, and other custom control algorithms.

ü Display: High-contrast digital display for easy monitoring of process variables, setpoints, and outputs.

ü Power Supply: It typically operates with a standard AC/DC power supply (consult the datasheet for the voltage range).

ü Communication Protocols are compatible with industrial communication protocols, such as Modbus, RS-485, or Ethernet, for integration into distributed control systems (DCS).

ü Mounting Type: Panel-mounted design for easy installation in control cabinets.

ü Operating Temperature: Designed to operate within a temperature range of -10°C to 50°C for demanding industrial environments.

ü Enclosure: Rugged, industrial-grade housing for protection against dust, vibration, and harsh conditions.

ü Certifications: CE, UL, and CSA certified, ensuring compliance with international safety and performance standards.

Detailed Features of MOORE 15738-119:

1. Advanced PID Control: The Siemens Moore 15738-119 offers precise PID control capabilities, accurately regulating process variables in single-loop control applications.

2. Flexible Input/Output Configurations: The controller supports multiple input and output types, allowing it to handle various process signals and quickly adapt to different control requirements.

3. Easy-to-Use Interface: A user-friendly interface with a digital display simplifies setting, configuring, and monitoring control parameters.

4. Customizable Control Modes: Configurable for on/off, proportional, integral, derivative (PID), and cascade control modes, offering versatility in various applications.

5. Industrial Communications: The controller supports modern industrial communication protocols, allowing it to be integrated into broader automation systems such as PLCs and DCS.

6. Diagnostics and Alarms: In real-time, built-in diagnostics and alarm functions help detect faults or abnormal conditions, enhancing operational reliability.

7. Robust Design: Designed for industrial environments, the controller has a durable build that can withstand harsh operational conditions such as temperature extremes and electrical noise.

8. Programmable Setpoints and Parameters: Users can program various setpoints, alarms, and control parameters to suit specific application needs.

Applications of MOORE 15738-119:

² Process Control: Ideal for controlling temperature, pressure, level, and flow in industrial processes.

² HVAC Systems: Can be used in heating, ventilation, and air conditioning systems to regulate temperature and airflow.

² Chemical Processing: Suitable for controlling chemical reactions where precise regulation of variables is crucial.

² Power Generation: Used in boiler control and other power generation applications where tight control of operational parameters is required.

² Water and Wastewater Treatment: This system provides reliable control of flow rates, levels, and chemical dosing in water treatment facilities.

² Manufacturing Automation: Integrates seamlessly with other automation systems in manufacturing plants for process control and quality assurance.

Related Part Numbers of MOORE 15738-119:

Ø 15738-118: Alternative model with slightly different input/output configurations.

Ø 15738-120: Upgraded version with enhanced communication capabilities.

Ø 1500-5000 Series: General family of Moore controllers that offer similar functionality with varying features.
