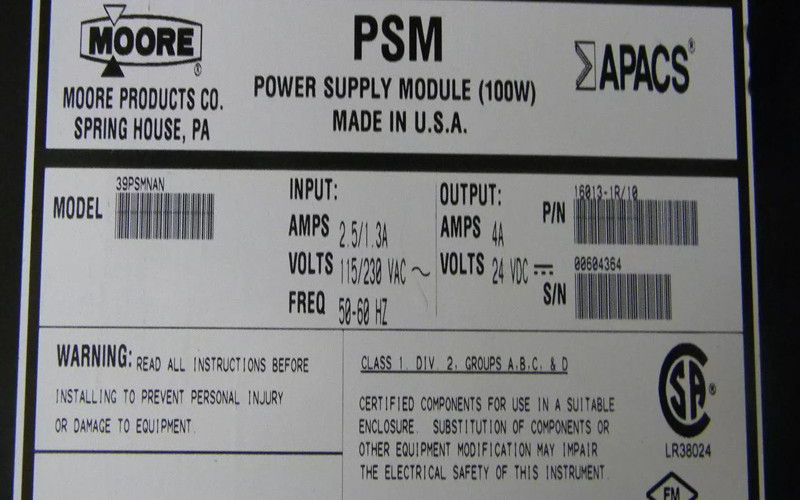

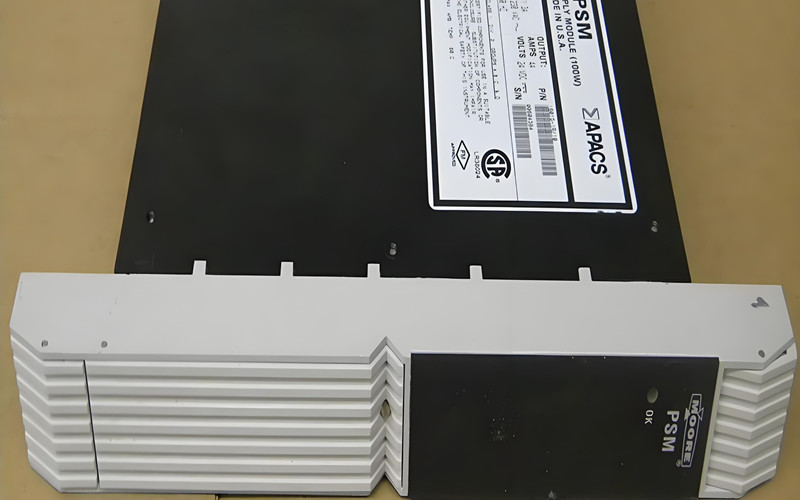

Siemens Moore APACS 39PSMNAN Power Supply Module

The Siemens Moore 39PSMNAN power supply module is a versatile and reliable component designed for demanding industrial control environments. Its robust design, high efficiency, and advanced protection mechanisms make it an ideal choice for powering control systems across various industries.

Technical Specifications of Moore APACS 39PSMNAN :

v Manufacturer: Siemens

v Series: Moore APACS+

v Model Number: 39PSMNAN

v Type: Power Supply Module

v Input Voltage Range:

v AC: 85 V to 264 V AC

v DC: 100 V to 300 V DC

v Output Voltage: 5 V DC

v Output Power Rating: 50 W

v Power Efficiency: > 85%

v Input Frequency: 47 Hz to 63 Hz

v Ripple and Noise: < 50 mV (Peak to Peak)

v Operating Temperature Range: 0°C to +50°C

v Storage Temperature Range: -40°C to +85°C

v Dimensions (W x H x D): 175 x 90 x 225 mm (approximate)

v Weight: Approx. 2.5 kg

v Mounting: Rack-mounted

v Protection Features:

v Overload Protection

v Overvoltage Protection

v Short-circuit Protection

v Cooling Method: Natural convection cooling

v Certifications: CE, UL, CSA

Detailed Features of Moore APACS 39PSMNAN:

1. Wide Input Voltage Range:

The Siemens Moore 39PSMNAN power supply module supports AC and DC input voltage, allowing for versatile deployment in various industrial environments and power conditions.

2. Stable Output Power:

Provides a reliable 5 V DC output with a 50 W power rating, ensuring consistent performance for the connected modules and devices.

3. High Efficiency:

With over 85% efficiency, this power supply minimizes energy loss, reducing operational costs and heat generation.

4. Advanced Protection Mechanisms:

It includes built-in protection features like overload, overvoltage, and short-circuit protection to safeguard the power supply and connected equipment.

5. Rugged and Durable Design:

Designed for harsh industrial conditions, the 39PSMNAN operates reliably within a wide temperature range and is constructed with high-quality materials to ensure long-term durability.

6. Compact Form Factor:

Despite its robust capabilities, the module is compact, making it suitable for space-constrained applications in industrial control systems.

7. Ease of Installation and Integration:

Rack-mountable design with standardized connectors ensures easy integration into existing Siemens Moore APACS+ systems and quick replacement or expansion.

8. Natural Convection Cooling:

The cooling system eliminates the need for fans, reduces Noise, and increases reliability by minimizing moving parts.

Applications of Moore APACS 39PSMNAN:

ü Process Control Systems:They are commonly used in distributed control systems (DCS) for process industries such as oil & gas, chemical, and petrochemical plants.

ü Manufacturing Automation:Suitable for use in automated manufacturing systems requiring stable and reliable power to control equipment and monitor production processes.

ü Power Generation:They are used in power plants to provide regulated power to critical control equipment, ensuring uninterrupted operation and system stability.

ü Building Automation:It is integrated into building management systems to power essential control and monitoring devices for HVAC, lighting, and security systems.

ü Water and Wastewater Treatment:She deployed SCADA systems to ensure the reliable operation of pumps, sensors, and control panels in water treatment and distribution facilities.

Related Part Numbers of Moore APACS 39PSMNAN :

A. 39PSRANAN: A similar power supply module with redundant capabilities.

B. 39PSMNAN-01: Enhanced version with higher efficiency and diagnostics.

C. 39PSMNAN-02: Extended temperature range model for extreme environments.

D. 39PSRSNBN: Dual-redundant power supply with hot-swap capabilities for mission-critical applications.
