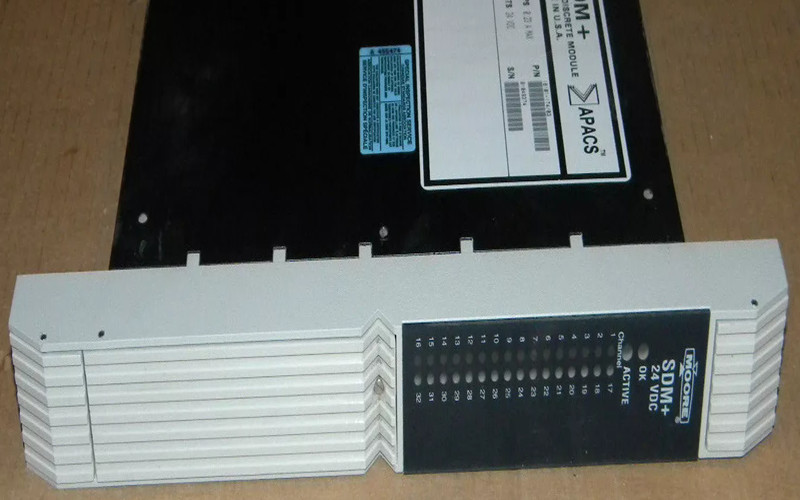

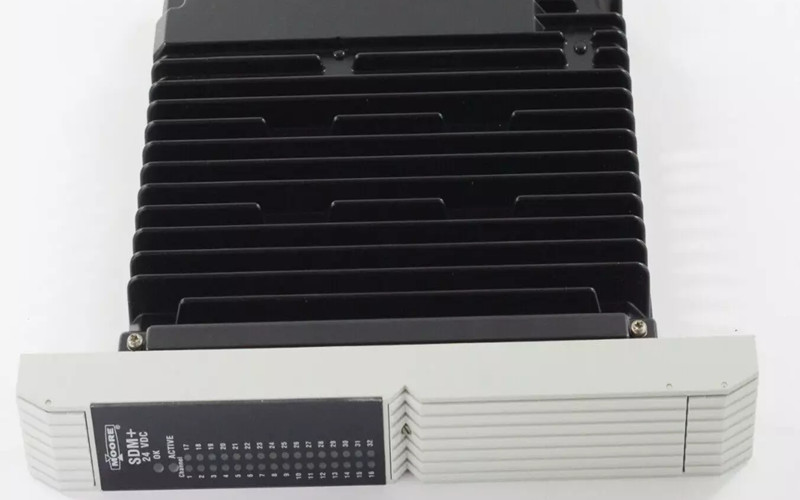

Siemens Moore APACS 39SDM024DCCBN Digital Control Module

The Moore 39SDM024DCCBN is a versatile and reliable digital control module designed for demanding industrial environments. With 16 digital inputs and outputs, high isolation, and diagnostic capabilities, it is ideal for a wide range of automation and process control applications, ensuring robust and efficient system performance.

Technical Specifications of Moore APACS 39SDM024DCCBN :

ü Manufacturer: Siemens Moore

ü Model Number: 39SDM024DCCBN

ü Series: Moore APACS+

ü Type: Digital Control Module

ü Input Voltage: 24 V DC

ü Digital Input Channels: 16 digital inputs

ü Digital Output Channels: 16 digital outputs

ü Input/Output Type:

n Inputs: Dry contact

n Outputs: Transistor

ü Signal Isolation:

n Isolation between input and output channels

n Isolation between I/O channels and system bus: 1500 V AC

ü Input Signal Delay: 1-5 ms (configurable)

ü Output Current Rating (per channel): 0.5 A at 24 V DC

ü Power Consumption: 5 W (typical)

ü Communication: High-speed backplane bus communication

ü Operating Temperature: 0°C to +60°C

ü Storage Temperature: -40°C to +85°C

ü Protection Rating: IP20

ü Certifications: CE, UL, CSA, ATEX

ü Dimensions (W x H x D): 175 x 90 x 225 mm (approximate)

ü Weight: Approx. 1.8 kg

ü Mounting: Rack-mountable

Detailed Features of Moore APACS 39SDM024DCCBN:

1. 16 Digital Inputs and Outputs:

The 39SDM024DCCBN provides 16 digital input channels and 16 digital output channels, making it an efficient solution for controlling and monitoring various discrete signals in industrial automation systems.

2. 24 V DC Input Power:

The module operates on a 24 V DC input, standard for industrial control systems, providing flexibility and compatibility with various power supplies.

3. Configurable Input Signal Delay:

The input signal delay can be adjusted between 1 and 5 ms, allowing flexibility in handling noisy or fluctuating signals and ensuring reliable data acquisition and control.

4. High Isolation:

The module features high isolation levels between channels and the system bus (1500 V AC), which protects sensitive electronics from voltage spikes and interference, enhancing system safety and reliability.

5. Transistor Outputs:

The outputs are designed as transistor switches, capable of handling 0.5 A per channel at 24 V DC, suitable for driving relays, solenoids, and other actuators.

6. Compact and Rugged Design:

The 39SDM024DCCBN is compact and rugged, designed to withstand harsh industrial conditions while minimizing space usage in control cabinets.

7. Backplane Bus Communication:

The module communicates over the high-speed backplane bus, ensuring rapid and reliable data exchange with other system components and optimizing system performance.

8. Diagnostic Capabilities:

Built-in diagnostic functions allow the system to monitor the health of the module and connected devices, ensuring prompt fault identification and resolution.

9. Hot-swappable Design:

The module can be hot-swapped without shutting down the entire system, reducing downtime during maintenance or upgrades.

Applications of Moore APACS 39SDM024DCCBN :

①　Industrial Automation:

It is ideal for applications in manufacturing, automotive, and material handling industries where real-time control and monitoring of digital signals are essential.

Process Control Systems:

They are commonly used in process automation systems such as APACS+ for controlling valves, motors, and other digital devices in industries like oil & gas, chemical, and pharmaceuticals.

②　Building Automation:

It is used in building management systems to monitor and control digital devices such as lighting systems, HVAC equipment, and security systems.

③　Power Generation:

She deployed power plants to control digital actuators, relays, and sensors within SCADA and control systems.

④　Water and Wastewater Treatment:

Suitable for controlling and monitoring pumps, motors, and sensors in water and wastewater treatment facilities.

Related Part Numbers of Moore APACS 39SDM024DCCBN:

l 39SDM024DCCAN: Similar digital control module with slightly different power ratings.

l 39SDM024DCCDN: Extended version with additional diagnostic features.

l 39SDM048DCCBN: Higher voltage version, supporting 48 V DC input.

l 39ADM024DCCBN: Analog and digital mixed module for more flexible I/O options.
