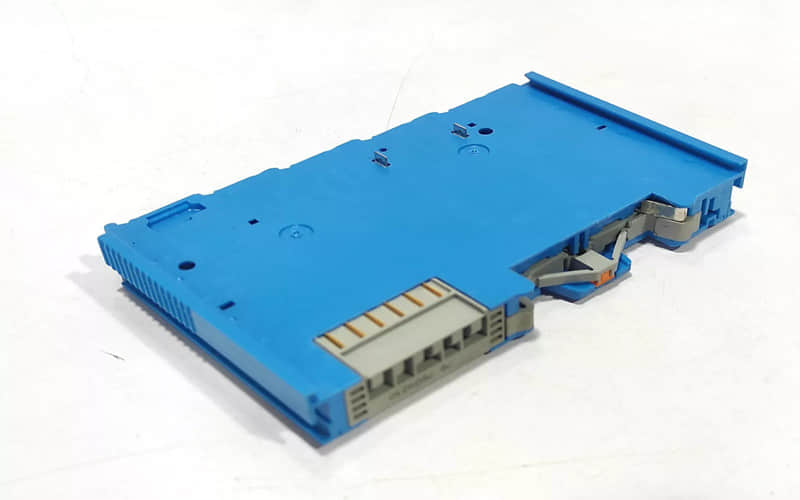

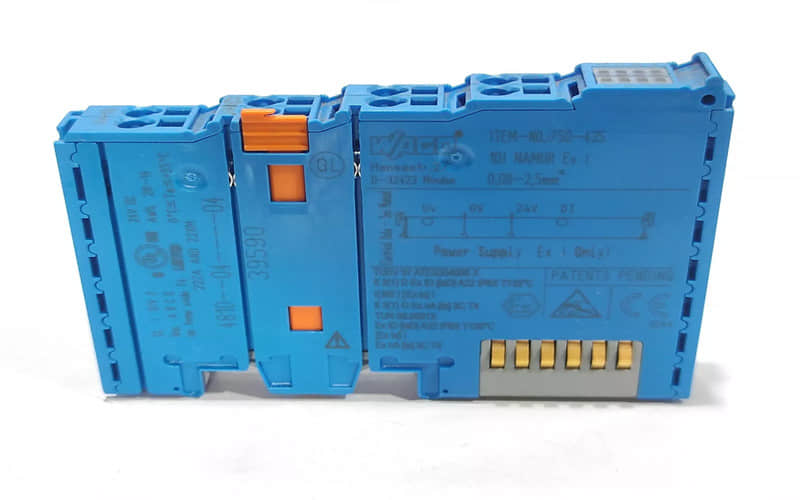

WAGO 750-435 1-Channel Digital Input Module
General Description:
The WAGO 750-435 is a 1-channel digital input module that records binary signals from sensors operating in Zone 0+1 hazardous areas. It is suitable for NAMUR sensors, optocouplers, mechanical contacts (in conjunction with a resistance coupling module, available as an accessory), or other actuating elements connected via intrinsically safe devices. The module is part of the WAGO I/O System 750, which must be installed in Zone 2 or a non-hazardous area.
Technical Specifications:
- Each sensor is supplied with a short-circuit-protected voltage of 8.2 V.
- Indicators include a Green LED for a signal and a Red LED for a short circuit or wire breakage.
- Field and system levels are electrically isolated for safety.
- The module is designed for intrinsic safety, allowing it to be used in hazardous areas without the risk of ignition.
Detailed Features of 750-435:
- The module records binary signals, making it ideal for various sensing applications in industrial environments.
- It provides visual feedback through LED indicators, simplifying diagnostics and status checks.
- The intrinsic safety design ensures the module can be used in environments with explosive gases, dust, or vapours.
Applications of Details:
The WAGO 750-435 is used in applications where binary signal recording is required in hazardous areas, such as in the石油化工、制药、食品加工和能源行业. Its intrinsic safety certification makes it suitable for use in environments where the risk of explosion is high due to flammable substances.
Installation in More Details of 750-435:
The WAGO 750-435 installation must be performed by the WAGO I/O System 750 guidelines, ensuring that the module is either installed in Zone 2 or in a non-hazardous area. The module should be securely mounted on a 35mm DIN rail, and all connections should be made using the CLAMP connection technology, which ensures a secure and reliable connection.
