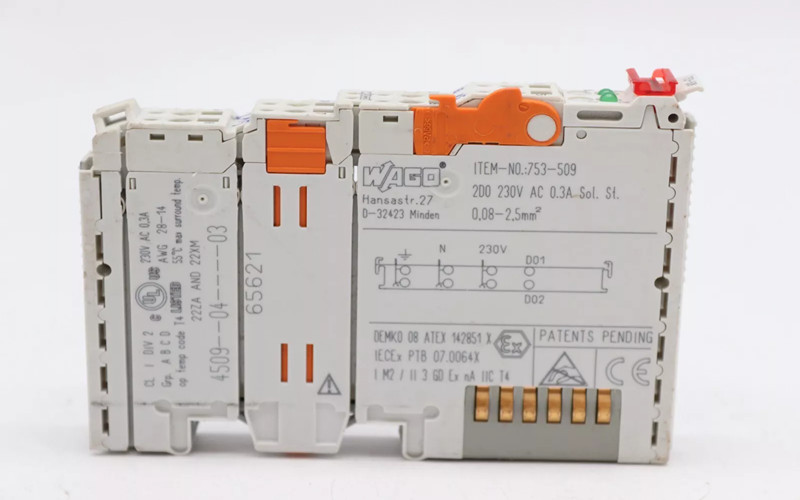

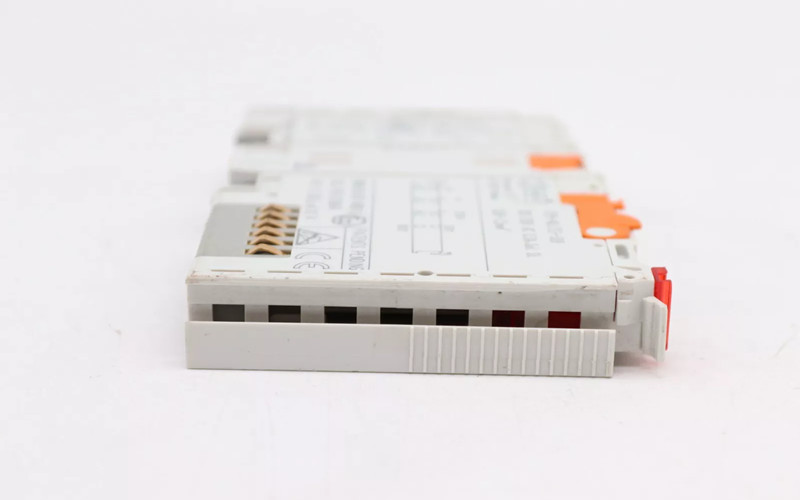

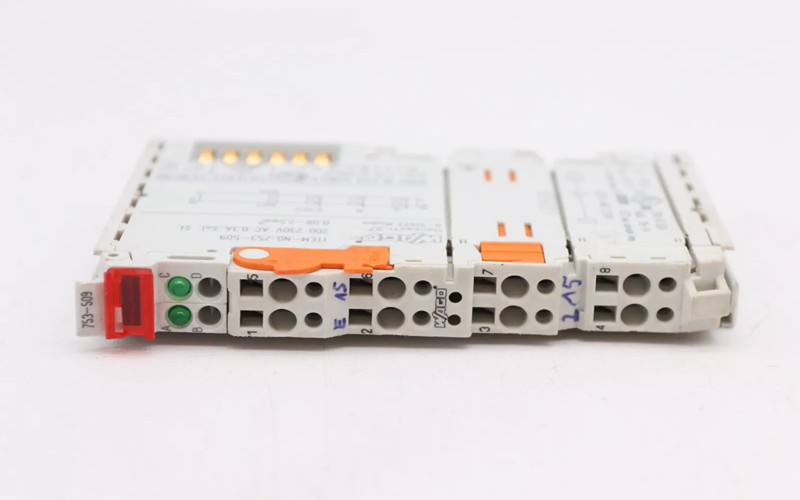

WAGO 753-509 2-Channel Digital Output Terminal AC/DC 230V 0.3A

General Description:

The WAGO 753-509 is a 2-channel digital output terminal designed for industrial automation and control systems. It supports AC and DC voltage up to 230V with a current rating of 0.3A per channel. It is suitable for controlling various devices, including relays, contactors, and small actuators. Its compact design and push-in connection technology ensure easy installation and efficient use of space in control cabinets.

Technical Specifications:

- Channels: 2

- Output Type: Digital (AC/DC)

- Voltage Rating: 230V AC/DC

- Current Rating: 0.3A per channel

- Connection Technology: Push-in

- Operating Temperature: -25°C to +60°C

- Wire Size: 0.08 to 2.5 mm² (AWG 28-12)

- Dimensions: 7.5 mm x 100 mm x 12 mm

- Weight: Approx. 20 g

Features of 753-509 :

- Versatile AC/DC 230V output for flexible applications

- Compact design for space-saving installation

- Push-in connection technology for quick and secure wiring

- Reliable performance in industrial environments

- LED indicators for channel status monitoring

Applications of 753-509:

- Industrial automation and control systems

- Relay and contactor control

- Machine and process automation

- Building automation and energy management

Installation Procedure (Step by Step):

1. Mounting: Secure the WAGO 753-509 terminal onto a DIN rail using the mounting clip.

2. Wiring: Strip the wire ends to the recommended length (7-9 mm). Insert the wires into the push-in terminals until they click into place.

3. Power Connection: Connect the AC/DC power supply (up to 230V) to the designated terminals.

4. Output Connection: Connect the output channels to the controlled devices (e.g., relays, contactors).

5. Verification: Power on the system and check the LED indicators to ensure proper operation.

Related Part Numbers of 753-509:

- 753-508: 1-Channel Digital Output Terminal (AC/DC 230V)

- 753-510: 4-Channel Digital Output Terminal (AC/DC 230V)

- 750-600: Power Supply Module

- 750-430: Digital Input Module
