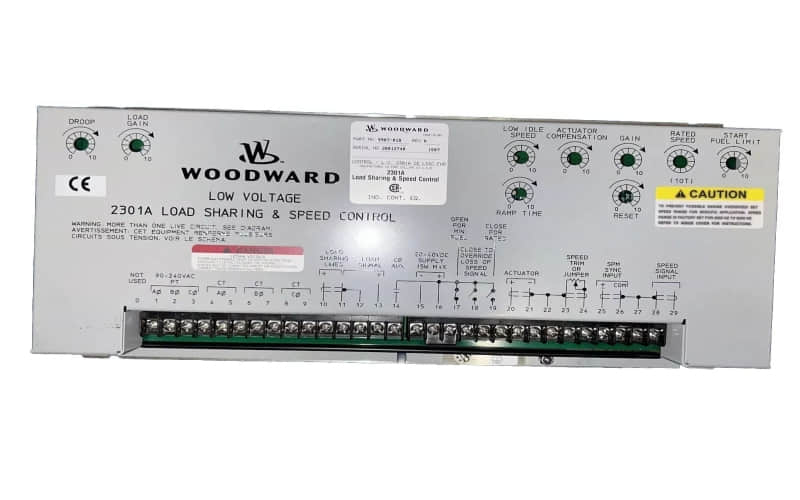

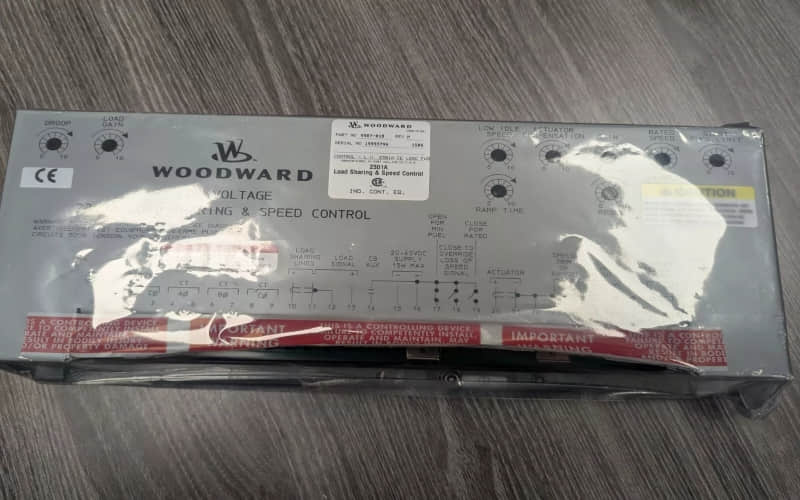

Woodward 9907-018 Load Sharing Speed Control 2301A

General Description:

The Woodward 9907-018 Load Sharing Speed Control 2301A is a high-performance electronic governor designed for industrial and power generation applications. It provides precise speed regulation and load sharing for engines, ensuring optimal performance and efficiency under varying load conditions. With its robust design and advanced features, the 2301A is ideal for applications requiring reliable and accurate control in demanding environments.

Technical Specifications of 9907-018:

- Input Voltage: 18-32 VDC

- Operating Temperature: -40°C to +85°C

- Speed Range: 0-10,000 RPM

- Communication Interfaces: CAN, J1939, RS-232, RS-485

- Dimensions: 150 x 100 x 50 mm

- Weight: 0.5 kg

- Certifications: CE, UL, and RoHS compliant

Detailed Features of 9907-018:

1. Precise Load Sharing: Ensures balanced load distribution between multiple generators.

2. Accurate Speed Regulation: Maintains stable engine speed under varying load conditions.

3. Advanced Diagnostics: Provides real-time monitoring and fault detection for proactive maintenance.

4. User-Friendly Interface: Easy-to-use controls and configuration options.

5. Robust Construction: Designed to withstand harsh environments, including vibration and extreme temperatures.

6. Flexible Integration: Compatible with various engines and control systems.

7. Customizable Settings: Adjustable parameters to meet specific application requirements.

Applications:

- Industrial Engines: Ensures precise speed control for generators, compressors, and pumps.

- Power Generation: Maintains stable engine speed for standby and prime power systems.

- Marine Propulsion: Provides reliable speed regulation for marine vessels.

- Oil and Gas: Ideal for offshore platforms and remote installations requiring robust performance.

- Rail and Transportation: Ensures efficient operation of locomotives and heavy-duty vehicles.

Installation of 9907-018:

1. Mounting: Securely mount the speed control unit in a clean, dry, and vibration-free location.

2. Wiring: Connect the power, communication, and sensor cables according to the wiring diagram provided in the manual.

3. Configuration: Use the integrated interface or software to configure settings such as speed range, gain, and stability parameters.

4. Testing: Perform a thorough system test to ensure proper operation and communication.

5. Commissioning: Verify all functions, including speed regulation and diagnostics, before installing the system.

Related Part Numbers in the Same Series :

- 9907-017 Load Sharing Speed Control 2301A

- 9907-019 Load Sharing Speed Control 2301A

- 9907-020 Load Sharing Speed Control 2301A

- 9907-021 Load Sharing Speed Control 2301A
