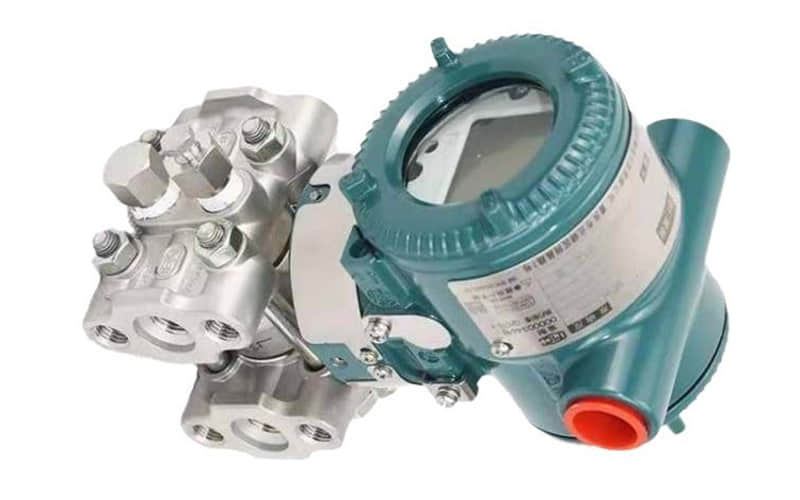

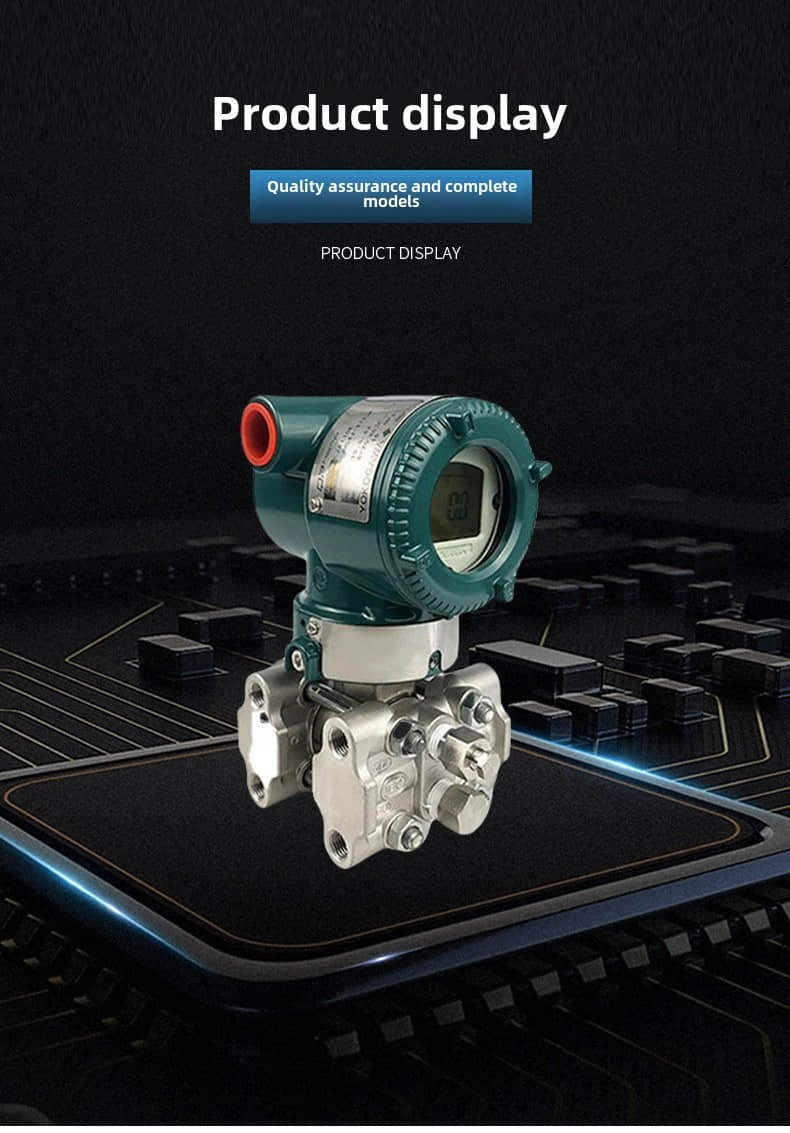

Yokogawa EJA120E Differential Pressure Transmitter Technical Guide

General Description

The Yokogawa EJA120E is an industry-standard differential pressure transmitter built on Yokogawa's field-proven DPharp digital sensor technology. Designed specifically for low-pressure draft measurements, this device bridges rugged mechanical durability with advanced signal processing. Whether applied as an efficient modern replacement for legacy infrastructure like the eja120a series or integrated into automated control loops, the EJA120E ensures exceptional measurement stability and operational reliability in demanding industrial environments.

Technical Specifications

Core Features & Operational Benefits

• Local Parameter Setting (LPS): Simplifies field configuration, zero adjustments, and parameter tweaking without requiring a dedicated handheld communicator.

• Signal Characterization: Enables custom linear or non-linear output compensation to match specialized process tanks and flow elements.

• Advanced Self-Diagnostics: Continuously monitors internal CPU health, memory integrity, hardware status, and over-range limits to prevent unexpected downtime.

• Integral LCD Indicator (Optional): Provides clear, real-time local monitoring of process variables on the shop floor.

Industrial Applications

As a premier yokogawa transmitter, the EJA120E model is widely deployed across critical process engineering sectors:

• Oil and Gas: Furnace draft monitoring, flare stack scrubbers, and low-pressure gas distribution lines.

• Water & Wastewater Treatment: Filter differential pressure tracking and aeration basin airflow monitoring.

• Chemical Processing: Reactor pressure drop tracking and specialized vapor containment loops.

• HVAC Systems: Cleanroom pressure differentials, building management static pressure, and large-scale air handling unit duct control.

Installation Procedure

1. Preparation: Review the official Yokogawa technical documentation, verify process parameters, and gather necessary installation tools.

2. Mounting Location: Select a stable mounting bracket location away from excessive vibration, ensuring clear visibility and easy technician access for maintenance.

3. Pressure Connection: Plumb impulse piping securely to the high and low-pressure sides of the transmitter using appropriate thread sealants to prevent leaks.

4. Electrical Wiring: Connect power loops in accordance with the wiring diagrams provided in the device manual, ensuring proper shielding and load resistance.

5. Zero-Point Adjustment: Perform a zero adjustment under balanced static pressure conditions to calibrate baseline readings.

6. Testing & Commissioning: Conduct an automated loop test to confirm signal transmission accuracy across your control system architecture.

7. Final Documentation: Secure all housing covers, verify weatherproofing, and log the calibration details for long-term plant asset management.

Related Part Numbers & Technical Data

• EJA120E-HAC (High Accuracy Variant)

• EJA120E-FB (FOUNDATION Fieldbus Protocol)

• EJA120E-PB (PROFIBUS PA Protocol)

Legacy Cross-Reference & Part Number Inquiries

When performing plant maintenance upgrades or auditing bills of materials for instrumentation networks, procurement teams frequently evaluate specific legacy strings, serial codes, and catalog designations.

• Legacy Compatibility: If your facility operates older generation inventory such as the legacy eja120a, the modern EJA120E series provides an electrically and dimensionally compatible drop-in migration path.

• Stock & Catalog Codes: For internal warehouse tracking, inventory auditing, or cross-referencing truncated database strings—including legacy reference codes like eja02, catalog prefixes like eja120a09, or factory tracking codes like eja120e08—compatibility relies on verifying exact wetted materials, flange ratings, and communication protocols.

For official Yokogawa datasheets, custom flange configurations, or bulk quotation requests for your plant upgrade project, please contact our technical support team directly.
