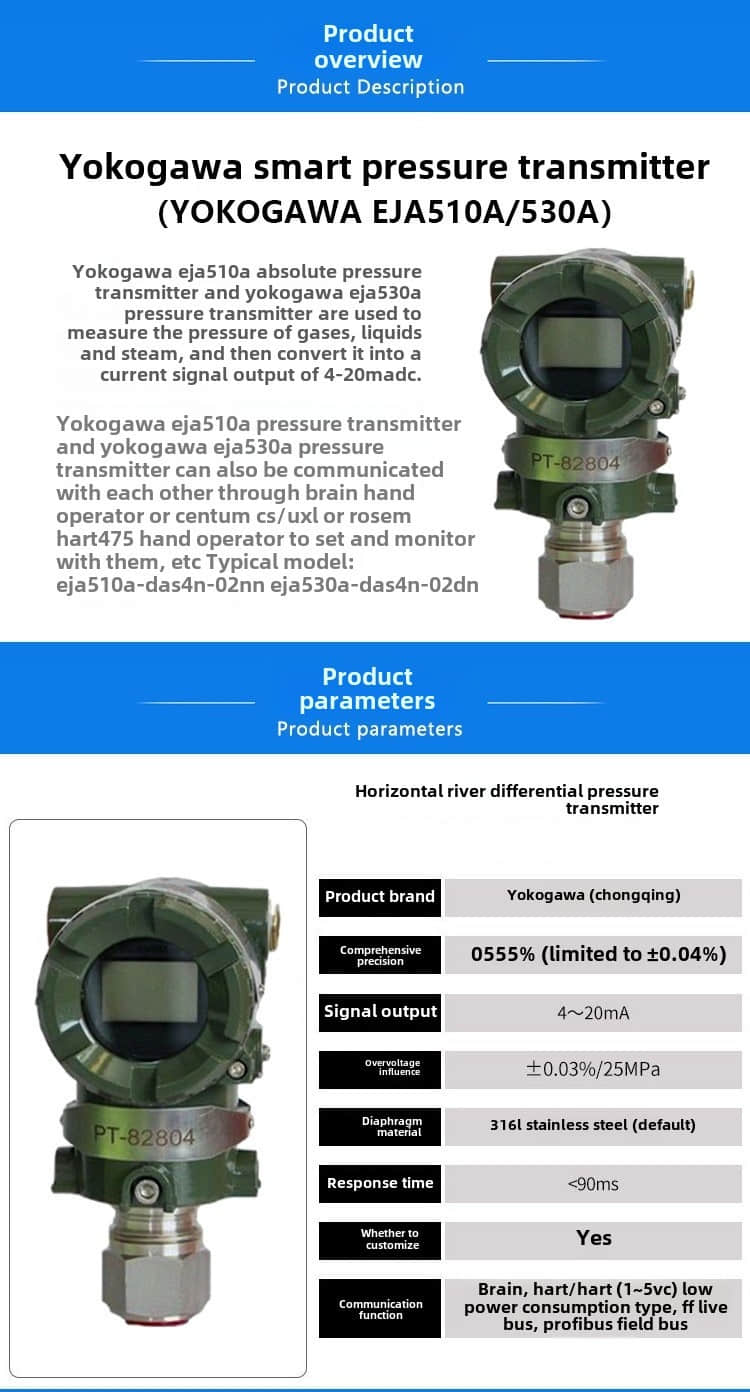

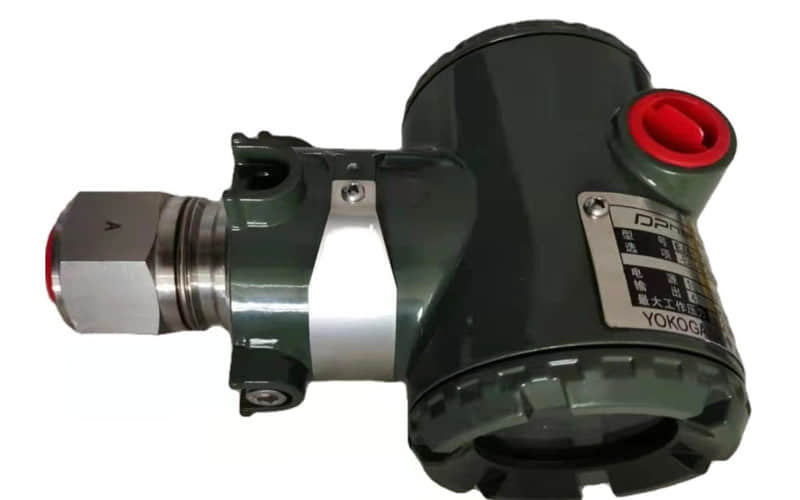

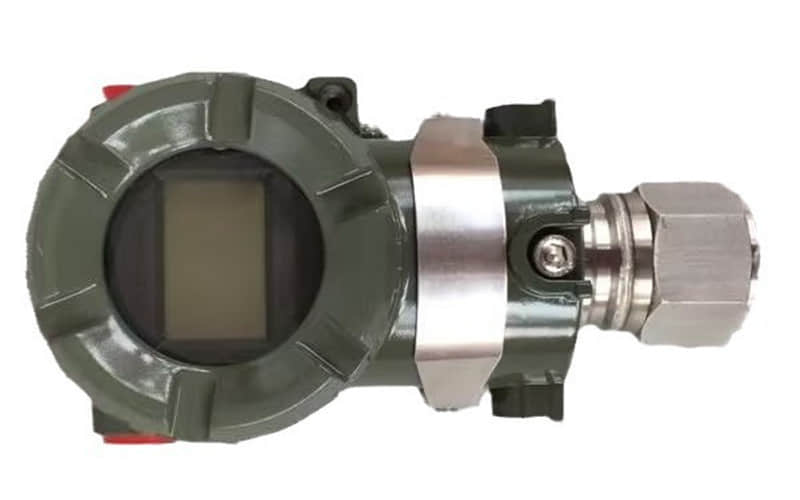

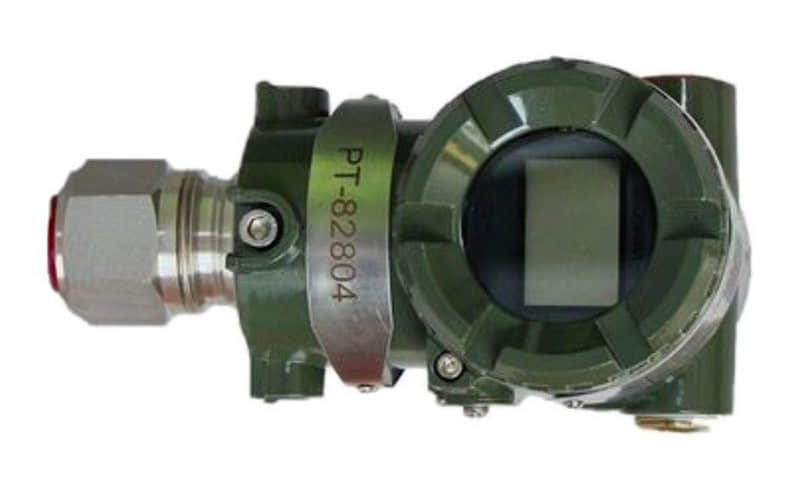

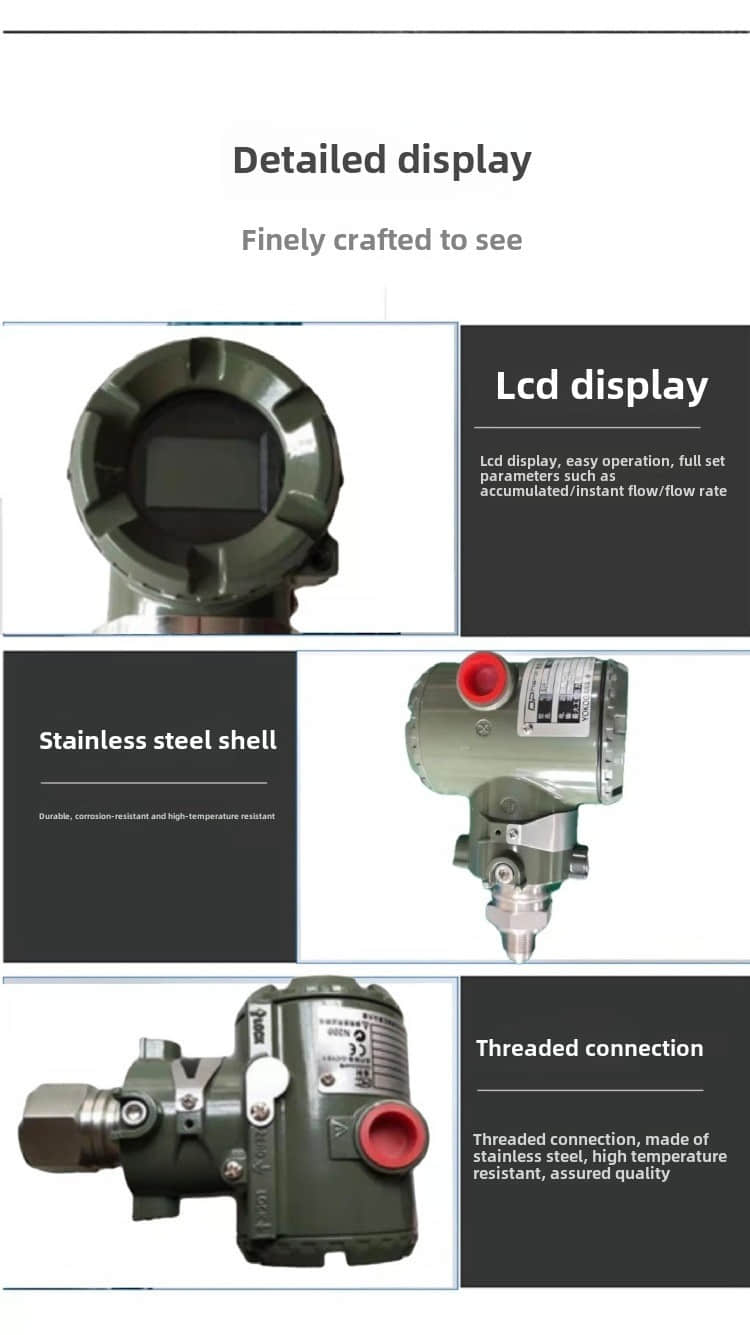

Yokogawa EJA510A Absolute Pressure Transmitter

General Description:

The Yokogawa EJA510A is a high-performance absolute pressure transmitter measuring liquid, gas, or steam pressure1. It utilizes a DPharp digital sensor to offer accuracy and stability3. The transmitter outputs a 4 to 20 mA DC signal corresponding to the measured pressure14. It also allows for remote setup and monitoring through communication with devices and systems like the BRAIN™ terminal, CENTUM CS™, or µXL™1.

Yokogawa EJA510A Technical Specifications:

l Reference Accuracy:

n ±0.2% of Span

l Stability: ±0.1% of URL (Upper Range Limit) per 12 months

l Vibration Effect: ±0.1 % of URL (5 to 15Hz; 4mm peak-to-peak constant displacement, 15 to 150Hz; 2g, 150 to 2000Hz; 1g)1

l Power Supply Effect: ±0.005 % per Volt (from 21.6 to 32 V DC, 350 Ω)1

l Supply Voltage: 10.5 to 42 V DC for general and flameproof types; 10.5 to 32 V DC for lightning protector1

l Output Signal: 4 to 20 mA DC14

l Span & Range Limits:

n Capsule A: Span 10 to 200 kPa, Range 0 to 200 kPa1

n Capsule B: Span 0.1 to 2 MPa, Range 0 to 2 MPa1

n Capsule C: Span 0.5 to 10 MPa, Range 0 to 10 MPa1

n Capsule D: Span 5 to 50 MPa, Range 0 to 50 MPa1

l Measurement values: Measurement values are absolute1.

Yokogawa EJA510A Features:

A. Remote monitoring: Remote setup and monitoring through BRAIN™14.

B. Output signal: 4 to 20 mA DC signal corresponding to the measured pressure14.

C. Self-diagnostics: Features self-diagnostics4.

Applications:

1) Measurement of liquid, gas, or steam pressure1.

2) Suitable for various industrial processes requiring accurate pressure monitoring1.

Installation Procedure:

l Model and Specifications Check: Verify the model name and specifications on the nameplate attached to the transmitter case.

l Location Selection: Choose an appropriate installation location.

l Wiring Precautions: Take necessary precautions during wiring2.

l Connections: Connect external wiring to terminal box 2.

l Grounding: Ensure proper grounding2.

l Power Supply: Use the correct power supply voltage and load resistance2.

l Process Piping Installation: Pay attention to piping installation, specifically for models like EJ¨115¨2.

l Mounting: Use appropriate mounting hardware like brackets, U-bolts, and bolts7.

l Terminal Wiring: When using an external indicator or a check meter, the internal resistance must be 10Ω or less1.

Yokogawa EJA510A Related Part Numbers:

l EJA510A1

l EJA530A (Gauge Pressure Transmitter)1
