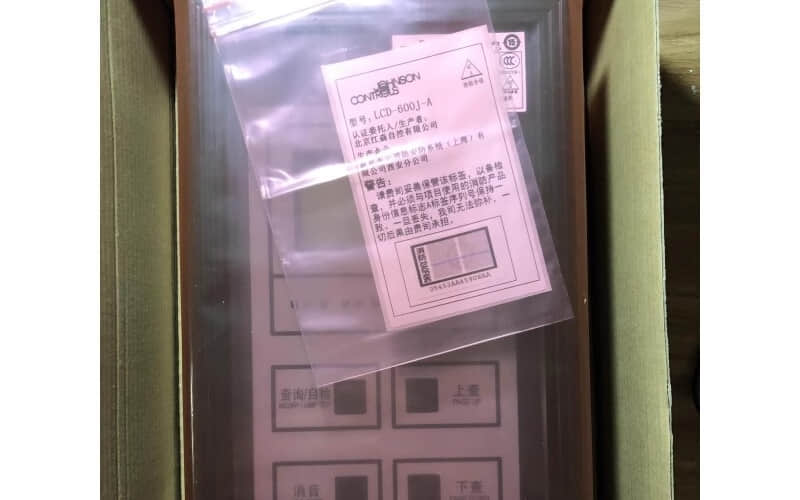

Johnson Controls IFC2-3030 System LCD-600J-A/256 Floor Indicator

1. Features of the LCD-600J-A Floor Display

l 50 Chinese character LCD with backlight support

l Automatic backlight shutdown feature

l LED status indicator

l Touch-sensitive buttons

l Local speaker for fire alarm and fault reminders

l Self-test and local mute functions

l Communication distance of up to 1800 meters

l Fire alarm/fault counting

l Fire alarm/fault inquiry function

l Terminal program configuration for ACS point labels

l Support for text-based label downloading

l EIA-485 interface in ACS mode, allowing up to 32 devices (including other ACS devices) per controller

l 256 points, occupying four ACS addresses

l Monitoring function

2. Technical Parameters of the LCD-600J-A Floor Display

A. Voltage Range: 18–27VDC

B. Compliance Standard: GB17429-2011

C. Static Current: 40mA @ 24VDC (backlight off)

D. Rated Operating Voltage: DC24V

E. Alarm Current: 70mA @ 24VDC (LED status indicator fully lit, backlight on)

F. Ambient Temperature: -10–50℃

G. Relative Humidity: 10%–95% (non-condensing)

H. Dimensions: 270mm × 155mm × 78.5mm

I. Enclosure Material: Metal

J. Connection Method: Connected to the fire alarm controller (linked type) via bus (RS485)

K. Power Supply Method: Powered by the DC 24V from the fire alarm controller (linked type)
