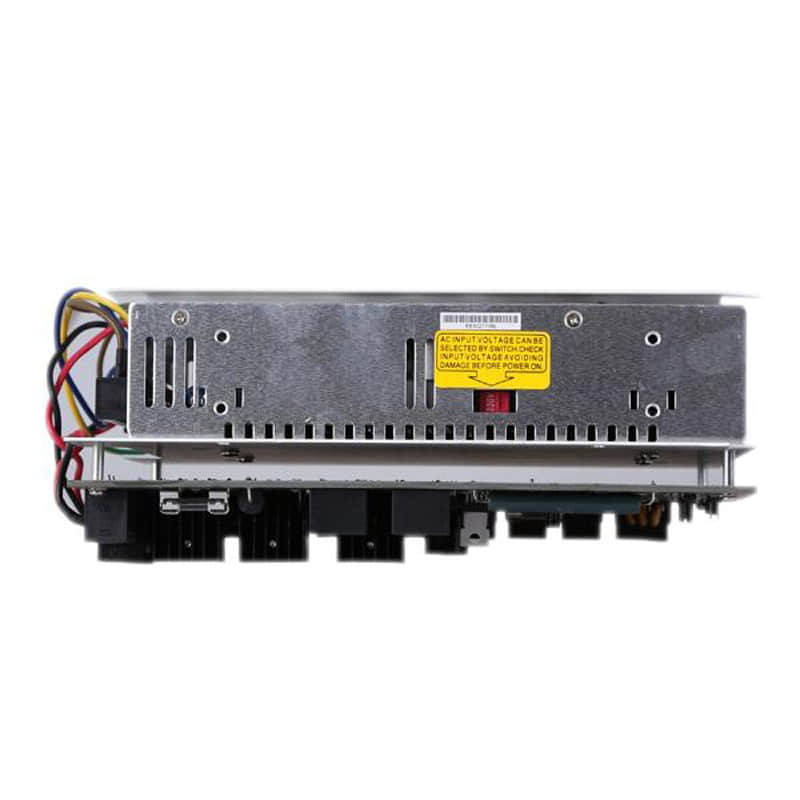

Johnson IFC-6060 MPS-350W Power System Technical Guide

Overview

The Johnson IFC-6060 MPS-350W is an intelligent power supply engineered for high-performance industrial applications. Delivering a reliable output of 350 watts, it ensures connected automation infrastructure receives stable power without voltage fluctuations.

Designed for seamless integration within standard rack enclosures, this power system often serves alongside internal cabinet distribution hardware, matching the specifications of related bus components such as the johnson controls c878-10, johnson controls c878-33, and johnson controls g339-10 units used in complex control architectures.

Technical Specifications

• Output Power: 350W

• Input Voltage: 100-240V AC

• Output Voltage: Adjustable (typically 12V, 24V)

• Efficiency: >90%

• Dimensions: Compact form factor, suitable for standard rack mounting

• Cooling Method: Active cooling with built-in fans

• Weight: Approx. 2.5 kg

Key Features & Cabinet Compatibility

1. Innovative Control Technology: Actively monitors output load and adjusts performance to maintain high operational efficiency.

2. Comprehensive Protection: Includes integrated over-voltage, over-current, and short-circuit safeguards to protect sensitive industrial electronics.

3. Modular Enclosure Integration: Engineered to fit alongside essential bus and control card sub-assemblies, including cabinet distribution lines like the johnson controls c878-33 and johnson controls c878-10, ensuring organized power distribution across enclosures.

4. Diagnostic LED Interface: Provides real-time status indicators for power, load levels, and fault conditions.

Industrial Applications

• Industrial Automation: Supplying stable power to PLC control panels, sensors, and actuators.

• Telecommunications: Maintaining uninterrupted service for remote communication hardware and associated interface modules like the johnson controls g339-10 bus components.

• Medical Equipment: Delivering regulated power to critical healthcare devices requiring high reliability.

Installation Guidelines

1. Location Selection: Choose a well-ventilated cabinet space to prevent thermal buildup and ensure proper airflow for active cooling fans.

2. Mounting: Secure the power supply unit using standard brackets within your equipment rack or control enclosure.

3. Electrical Wiring: Connect the 100-240V AC input safely, and attach low-voltage outputs with correct polarity.

4. System Verification: Power on the system and check front-panel LED indicators to confirm proper operation.

Related Part Numbers

• Johnson IFC-6060 MPS-200W (200W version)

• Johnson IFC-6060 MPS-500W (500W version)
