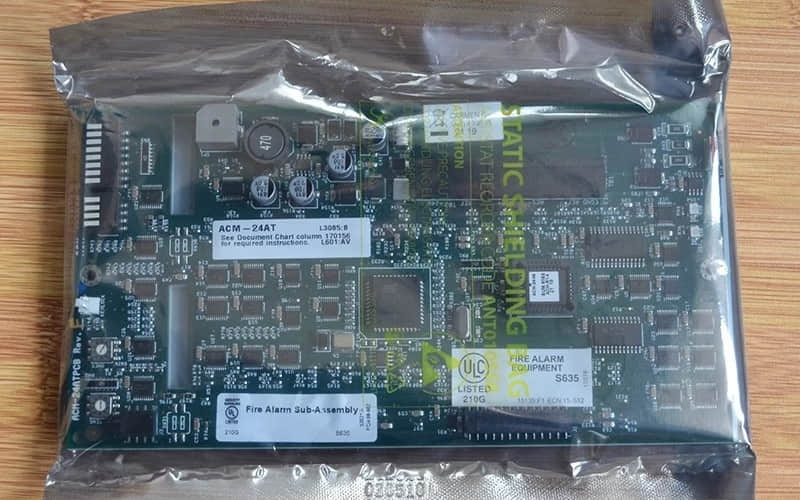

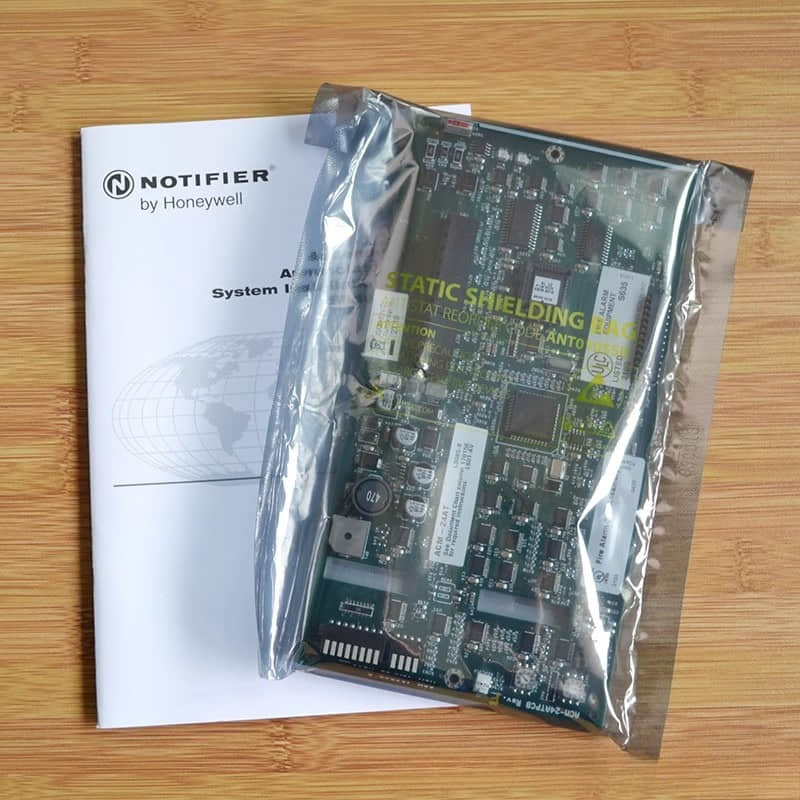

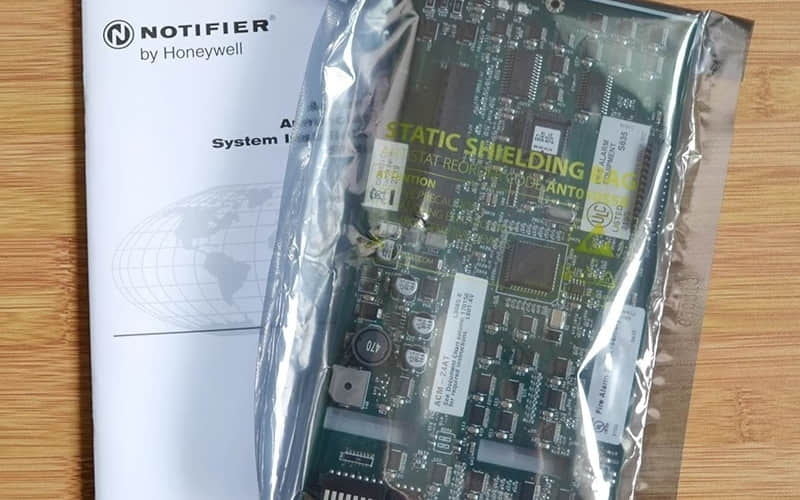

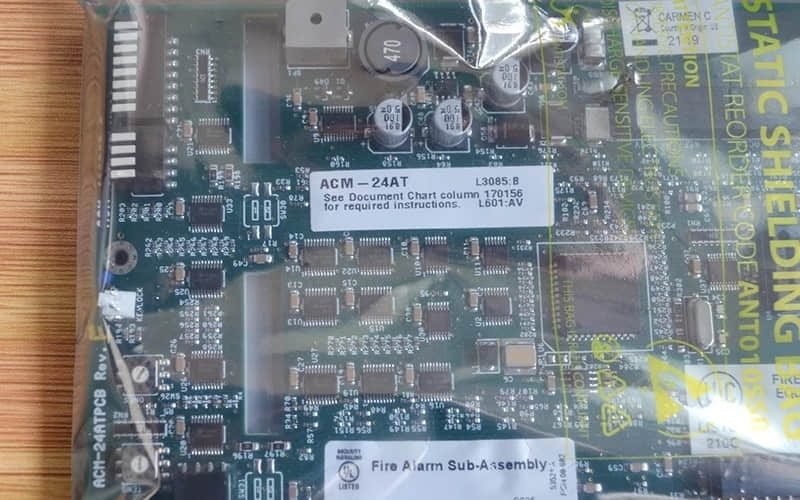

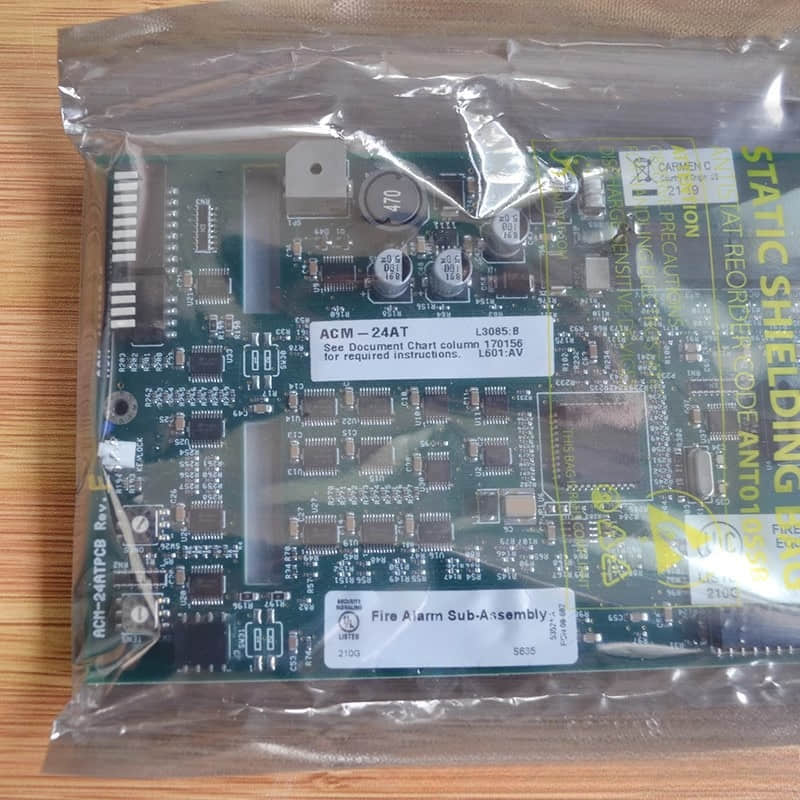

Nodifil ACM-24AT Bus Control Panel

General Description:

The Nodifil ACM-24AT Bus Control Panel is a state-of-the-art annunciator control module for effective fire alarm management. It provides 24 annunciation and control points, each with color-programmable LEDs to indicate alarm and trouble conditions. The panel is engineered for ease of use and installation, making it an ideal choice for modern fire safety systems.

Technical Specifications of Nodifil ACM-24AT :

l Power Supply: 24V DC nominal (17V DC to 28V DC)

l Current Draw:

l On-line flashing (all other LEDs off): 0.016 A

l Alarm (all LEDs on): 0.070 A

l Temperature Range: 0°C to 49°C (32°F to 120°F)

l Humidity Range: Up to 93% ± 2% RH (non-condensing)

l Dimensions: 8.375" (21.27 cm) high; 4.375" (11.11 cm) wide

l LEDs: 24 color-programmable active LEDs (red/green/yellow) and 24 yellow trouble LEDs

l Sounder: Local piezo sounder with silence/acknowledge switch

Detailed Features of Nodifil ACM-24AT :

A. Colour Programmable LEDs: Each of the 24 active LEDs can be programmed to display red, green, or yellow, allowing for customizable status indications.

B. Touch-Pad Control Switches: The module includes momentary touch-pad switches for remote control of system relays, silence, reset, and evacuation functions.

C. Local Sounder: The built-in sounder provides audible alerts for alarm and trouble conditions, enhancing situational awareness.

D. Microprocessor-Controlled Electronics: Ensures full supervision and reliability of the system operations.

E. Easy Installation: Utilizes plug-in terminal blocks and slip-in custom labels for straightforward setup and maintenance.

Applications:

The ACM-24AT is suitable for various applications in fire safety systems, including:

1) Commercial Buildings: Effective in managing alarms in office spaces, retail environments, and public facilities.

2) Industrial Sites: Monitors fire safety conditions in factories and warehouses where quick response is critical.

3) Educational Institutions: Provides reliable alarm management in schools and universities to ensure student safety.

4) Healthcare Facilities: Essential for hospitals and clinics where timely alerts can save lives.

Installation:

The ACM-24AT is designed for easy installation in various environments:

l Wiring Configuration: Four wires are required for EIA-485 communications (twisted pair) and two for regulated power supply (24V DC).

l Mounting Options: These can be mounted using standard backboxes or enclosures that fit project-specific requirements.

l Field-Wiring Terminations: Removable compression-type terminal blocks facilitate easy wiring and circuit testing.

l Programming Setup: DIP switches allow for straightforward addressing of modules within the system.

Related Part Numbers:

l ACM-48A: Annunciator Control Module with 48 points

l AEM-24AT: Annunciator Expander Module that expands the ACM-24AT by an additional 24 points

l AEM-48A: Annunciator Expander Module that expands the ACM-48A by an additional 48 points
