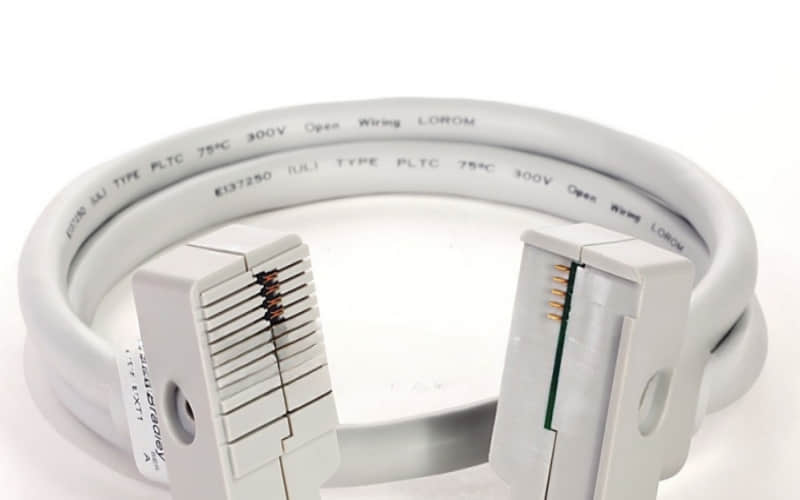

Allen-Bradley 1734-EXT1 Point I/O bus extension cord

General Description

The Allen-Bradley 1734-EXT1 is a critical link in the Point I/O architecture, enabling users to connect multiple I/O modules to a controller while maintaining signal integrity. This extension cord is handy in applications where space constraints or layout changes require additional flexibility in module placement. Its robust design ensures that it can withstand the rigours of industrial use while providing reliable communication between devices.

Technical Specifications of 1734-EXT1

l Part Number: 1734-EXT1

l Type: Point I/O Bus Extension Cord

l Length: 1 meter (3.28 feet)

l Connector Type: Standard connectors for Point I/O modules

l Compatibility: Designed for use with Allen-Bradley Point I/O systems

l Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)

l Weight: Approximately 0.5 kg (1.1 lbs)

Detailed Features

A. Modular Design: Allows for easy addition or removal of I/O modules without disrupting the entire system.

B. High Durability: Constructed to endure harsh industrial environments, ensuring long-term reliability.

C. Signal Integrity: Maintains high-quality signal transmission between connected devices, reducing the risk of communication errors.

D. Easy Installation: Plug-and-play functionality simplifies the setup process, minimizing downtime during installation.

Applications of 1734-EXT1

1. The Allen-Bradley 1734-EXT1 is utilized in various industrial applications, including:

l Manufacturing Automation: Extending the reach of I/O modules in assembly lines or production facilities.

l Process Control Systems: Facilitating connections in chemical processing plants where equipment may be spread over larger areas.

l Building Automation: Connecting sensors and controllers across different sections of commercial buildings.

l Robotics Systems: Enabling flexible configurations for robotic arms and their associated control systems.

2. Detailed Application Examples:

l Automated Assembly Lines: The extension cord allows for optimal positioning of sensors and actuators, enhancing the efficiency of production processes.

l Environmental Monitoring Systems: These connect remote sensors that monitor environmental conditions in extensive facilities, ensuring accurate data collection.

Installation

l Preparation:

Gather necessary tools such as screwdrivers and wire strippers.

Review installation guidelines specific to your Point I/O configuration.

l Mounting:

Determine the optimal location for the extension cord based on your system layout.

Securely mount any necessary brackets or supports to hold the extension cord in place.

l Wiring:

Connect one end of the extension cord to an existing Point I/O module and the other to a new module or terminal base.

Ensure that all connections are tight and secure to prevent signal loss.

l Powering Up:

Once all connections are made, power up the system.

Check for any error indicators on connected devices to confirm proper operation.

l Testing:

Use diagnostic tools within your control software to test communication between connected modules.

Verify that all inputs and outputs are functioning as expected.

Related Part Numbers

The following part numbers are related to the same series:

l 1734-TOP: One-piece terminal base with screw or spring clamp for Point I/O modules.

l 1734-AENT: EtherNet/IP adapter module for connecting Point I/O systems to Ethernet networks.

l 1734-ACNR: ControlNet adapter module that facilitates high-speed data transfer between controllers and Point I/O devices.
