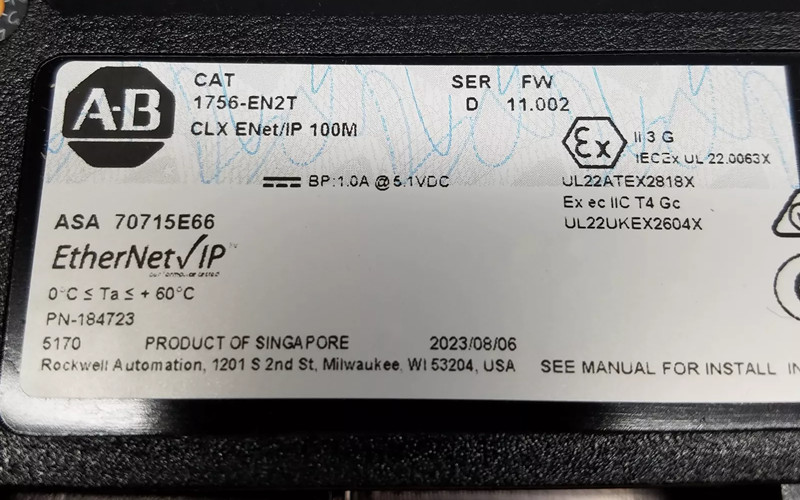

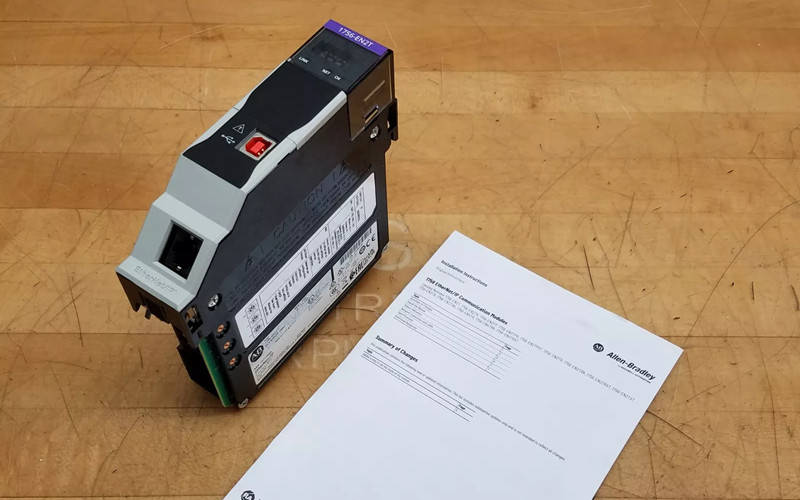

Allen-Bradley 1756-EN2T Module
People also call the Allen-Bradley 1756 EN2T the 1756 en2t allen bradley or ab 1756 en2t. This module is a ControlLogix® Communication Interface.
Engineers design it for fast and reliable communication in industrial automation systems. As an Ethernet 10-100M Interface Module, it supports the EtherNet/IP protocol. This allows smooth real-time data exchange between controllers, I/O devices, and other networked equipment.
The module is perfect for high-performance ControlLogix systems. Part of the 1757-EN2T PLCs/Machine Control from ALLEN BRADLEY.
1.General Description of the rockwell 1756 en2t
The Allen-Bradley 1756-EN2T provides robust Ethernet connectivity for complex automation environments. It functions as an Allen-Bradley communication module that supports Ethernet I/P communication protocol and is an Allen-Bradley ControlLogix series communication adapter.
The module supports Ethernet 10-100 M interface standards. It can manage a lot of network traffic. This makes it great for applications that need real-time data processing, accurate control, and high reliability.
2.1756-ENBT vs 1756-EN2T
The Allen-Bradley 1756-ENBT and 1756-EN2T are both ControlLogix Ethernet/IP communication modules. The 1756-ENBT is an earlier-generation module with standard 100 Mbps Ethernet, suitable for moderate data exchange.
The 1756-EN2T is part of the Enhanced Series. It offers faster communication and better bandwidth. It allows for more connections and supports advanced diagnostics, CIP motion, and CIP Sync. The EN2T delivers higher efficiency and network capacity, making it better suited for demanding industrial automation environments.
3.1756-EN2T vs 1756-EN2TR
Both modules are EtherNet/IP communication/adaptor modules for ControlLogix. The EN2T offers a single Ethernet port with 10/100 Mbps connectivity for standard network setups.
The EN2TR has a built-in Ethernet switch with two ports. It supports Device-Level Ring (DLR) redundancy for reliable, high-availability networks. Use EN2T for typical single-port setups and EN2TR for redundant or ring network topologies.
4.Technical Specifications of the 1756-EN2T Module
l Manufacturer: Rockwell Automation
l Part Number: 1756-EN2T
l Module Type: Communication Module for ControlLogix
l Communication Protocols: Ethernet/IP, TCP/IP
l Communication Speed: 10/100 Mbps
l Maximum Connections: 128 TCP/IP connections, 256 CIP connections
l Operating Temperature Range: 0 to 60°C (32 to 140°F)
l Power Supply Requirement: 5.1V DC @ 1A, 24V DC @ 3mA
l Detailed Features
l High-Speed Communication: Low-latency data transfer for time-sensitive applications.
l Flexible Connectivity: Equipped with RJ45 and USB ports for easy configuration.
l Robust Diagnostics: Built-in tools to identify and resolve network issues quickly.
l Scalable Integration: Compatible with existing systems and future expansion.
l Reliable Ethernet/IP Interface: Provides secure, real-time communication across industrial networks.
5.Applications of the 1756-EN2T Module
The Allen-Bradley 1756-EN2T is widely used in:
l Manufacturing Automation: Real-time control and monitoring of production processes.
l Oil and Gas Industry: Efficient data exchange between controllers and field devices.
l Automotive Manufacturing: Coordination of robotic systems and assembly lines.
l Pharmaceutical Production: Precise monitoring and regulatory-compliant process control.
6.Installation Details
l Choose a Slot: Insert the module into an available ControlLogix chassis slot.
l Secure the Module: Ensure it is flush with other modules.
l Connect Network Cables: Use the RJ45 port for Ethernet connections.
l Configure via RSLinx: Set IP addresses and network parameters as required.
7.Related Part Numbers
l 1756-A4: ControlLogix Chassis
l 1756-A7: ControlLogix Chassis
l 1756-A10: ControlLogix Chassis
