A Comprehensive Guide of Allen-Bradley 1771 and 1771-a4b

1. Introduction

Rockwell Automation’s Allen-Bradley 1771 series represents one of the most trusted families of PLC-5 I/O modules in industrial automation. Known for its modular design, long-term durability, and broad compatibility, this series remains a mainstay in legacy and retrofit control systems.

The Allen-Bradley 1771 product line was engineered for medium- to large-scale control architectures, supporting a wide variety of analog, digital, and specialty I/O modules. Users continue to rely on it for dependable performance in environments that demand stability and predictable operation.

Even though newer platforms like ControlLogix and CompactLogix have evolved, the 1771 family remains widely used globally. This is thanks to its proven reliability and ability to integrate with contemporary Allen-Bradley programmable controllers through standardized backplane communication and flexible chassis options.

This guide explores the features, specifications, and applications of the Allen-Bradley 1771 system. It provides essential information on installing, programming, calibrating, and troubleshooting your module effectively for maximum uptime and safety.

2. Product Overview of Allen-Bradley PLC

2.1 Rockwell Automation and Its Role

Rockwell Automation, headquartered in Milwaukee, Wisconsin, is a global leader in industrial automation and digital transformation. Through brands such as Allen-Bradley and FactoryTalk, Rockwell delivers complete control systems, industrial software, and connected-enterprise solutions that enable manufacturers to meet the demands of Industry 4.0.

The company’s platforms—including the Allen-Bradley 1771 series, ControlLogix, and CompactLogix—combine hardware reliability with data-driven intelligence. They empower operators to monitor, analyze, and optimize performance while maintaining top-tier safety and cybersecurity.

Suppose you encounter an issue with a 1771 module or related Allen-Bradley DC input modules. In that case, Rockwell Automation offers comprehensive repair, calibration, and technical support services to keep your systems running efficiently.

2.2 Importance in Industrial Automation

The Allen-Bradley 1771 series plays a pivotal role in global industrial automation. By merging dependable hardware with configurable software, it supports real-time process control, robust communication, and integration with SCADA and HMI systems. These capabilities help industries achieve higher productivity, tighter safety compliance, and seamless scalability as plant requirements evolve.

3. Allen-Bradley 1771 Series in Detail

3.1 Key Features of the 1771 Series

Modular Design: Expand your control system with interchangeable analog, digital, and specialty I/O modules.

Compatibility: Fully compatible with all contemporary Allen-Bradley programmable controllers.

Backplane Communication: Chassis-based bus ensures reliable data exchange between modules.

High Reliability: Built for continuous operation in harsh environments.

Diagnostics & Status Indicators: LED indicators simplify maintenance and troubleshooting.

Redundancy Support: Optional redundant power supplies, such as Allen-Bradley 1771-P4S and 1771-P7, ensure stable voltage to critical systems.

Field Wiring Terminal Blocks: Removable wiring assemblies streamline installation and reduce downtime during upgrades.

These modules often appear in the 1771 product bulletin, which documents every output module, input card, and related accessory.

3.2 Different Models within the 1771 Series

l Allen Bradley 1771-A2B

Type: I/O Chassis (Backplane)

Slots: 8 module slots

Compatibility: Supports all 1771 I/O and PLC-5 modules

Power Supplies: External options include 1771-P4S and 1771-P7

Use Case: Ideal for medium control systems needing reliable expansion

l Allen Bradley 1771-A4B

A flagship 16-slot chassis known for its high-density I/O support. The 1771-A4B supports modules such as 1771-IFE, 1771-OAD, 1771-IBD, 1771-OW, and 1771-OFE2, making it suitable for large automation frameworks that require both analog and digital control.

l Allen Bradley 1771-IFE and 1771-IFE C

These analog input modules measure voltage inputs (±1 V, ±5 V, ±10 V) with 12-bit resolution. They allow precise data acquisition for temperature, pressure, and flow monitoring. Each module is factory-calibrated but can also be recalibrated in the field.

l Allen Bradley 1771-OAD and 1771-IAD

The 1771-OAD is a digital AC output module, while the 1771-IAD handles AC input signals. Together, they form part of the Allen-Bradley DC input/output module family, designed for rugged process environments.

l Allen Bradley 1771-IBD and 1771-IB**

These DC input modules detect low-voltage logic states for sensors and limit switches. Often used with a 1771 16-Point Digital Output Module, they deliver precise control feedback within automation loops.

l Allen Bradley 1771-ASB

A remote I/O adapter module that connects multiple 1771 chassis via the Remote I/O network. It enables distributed architectures and long-distance communication—up to 10,000 ft, depending on baud rate.

l Allen Bradley 1771-OW and 1771-OFE2

The 1771-OW is a relay output module for controlling solenoids and actuators, while the 1771-OFE2 provides analog output capabilities for continuous process control. Both are essential when installing, programming, calibrating, and troubleshooting your module in complex control systems.

3.3 Applications of Allen-Bradley 1771

The 1771 series remains widely adopted across manufacturing, oil & gas, chemical processing, and packaging. Engineers deploy it for:

Process control and data acquisition

Machinery monitoring and safety interlocks

Analog signal conditioning through modules like 1771-IFE and 1771-OFE2

Distributed control using 1771-ASB remote adapters

Because of its robustness, many facilities continue to maintain 1771 installations while integrating them with modern HMI and SCADA solutions.

4. Integration into Control Systems

4.1 Use Cases in Various Industries

The Allen-Bradley 1771 system demonstrates flexibility across diverse industrial sectors:

Manufacturing: controls assembly lines, robotics, and packaging.

Energy and Utilities: interfaces with analog sensors for power management.

Chemical Processing: uses 1771-IFE and 1771-OFE2 modules to measure precise process variables.

Food & Beverage: employs 1771-IAD and 1771-OAD for batch control and quality assurance.

Its rugged design enables continued service in heavy industries such as mining and steel production, where vibration resistance and immunity to electrical noise are critical.

4.2 Comparisons and Alternatives

While the 1771 family has set a reliability standard, modern automation increasingly relies on ControlLogix and CompactLogix controllers for higher processing power and enhanced communication.

However, the 1771 output modules and chassis remain vital for legacy systems needing stable operation. Competing platforms such as Siemens S7, Schneider Modicon, and Mitsubishi Q-Series also provide strong process-control solutions, but 1771’s ease of maintenance and broad documentation make it one of the most serviceable legacy systems available today.

5. Benefits of Choosing Allen-Bradley 1771

Selecting the Allen-Bradley 1771 I/O system ensures enduring reliability, straightforward maintenance, and field-proven performance.

Key advantages include:

Proven durability: The 1771-A4B chassis and modules, such as 1771-P7 and 1771-OAD, are built for decades of service.

Comprehensive compatibility: Each output module from the 1771 product bulletin fits seamlessly within existing chassis configurations.

Ease of service: Clear labeling and diagnostic LEDs help technicians install, program, calibrate, and troubleshoot modules quickly.

Extensive support: Rockwell Automation maintains manuals and technical notes for every variant—including the Allen Bradley 1771-P4S, 1771-OW, and 1771-OFE2.

Legacy integration: Fully interoperable with PLC-5 processors and many contemporary Allen-Bradley programmable controllers, allowing cost-effective system modernization.

6. Related part numbers:

l 1771-NBSE

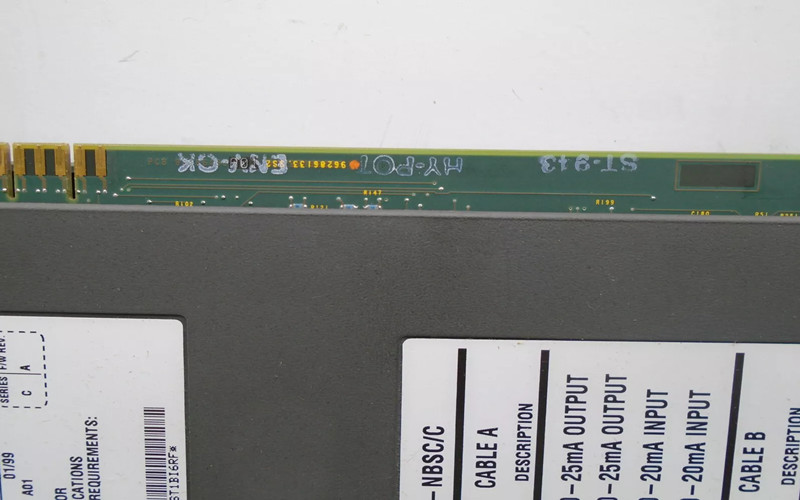

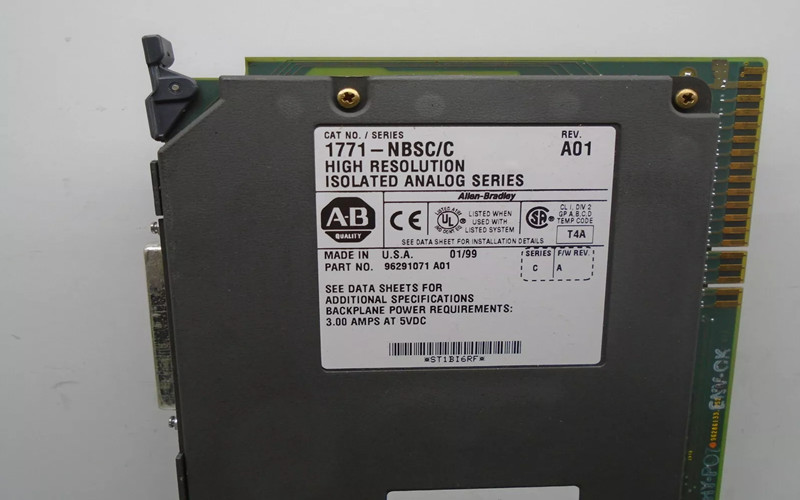

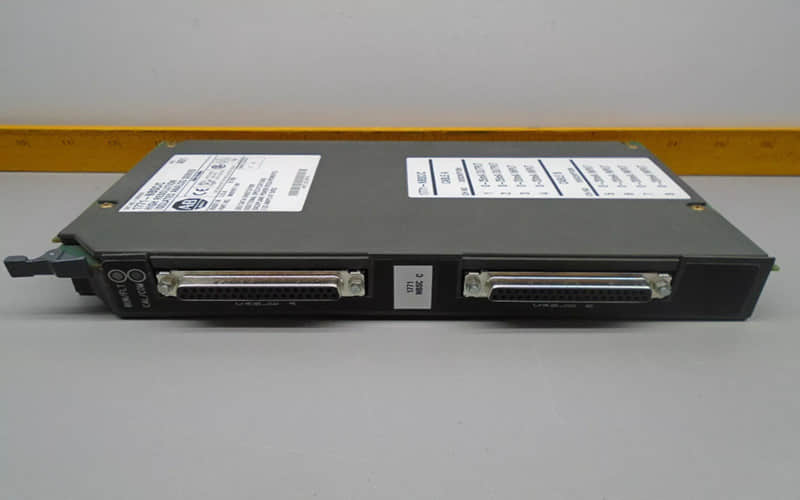

l 1771-NBSC2

l 1771-NBSA
