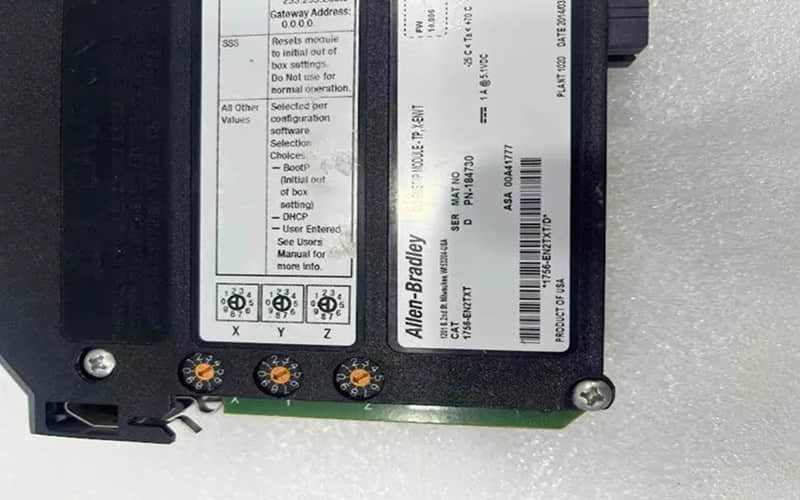

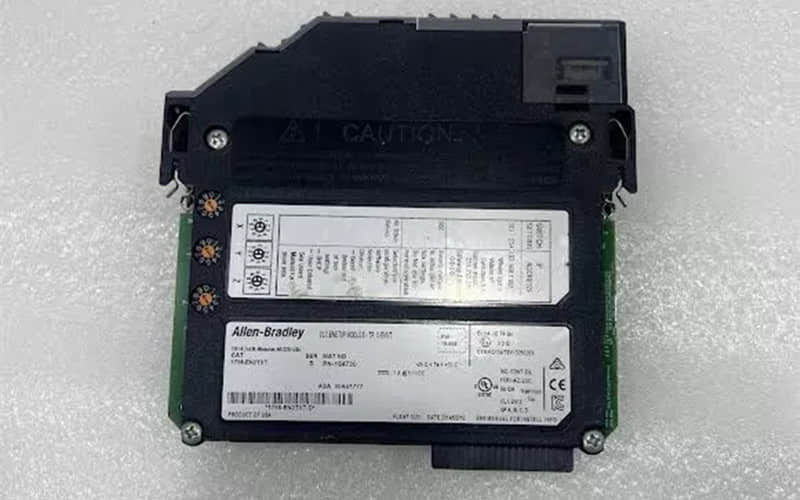

Allen-Bradley 1756-EN2TXT Communication Module

General Description

The Allen-Bradley 1756-EN2TXT Communication Module is a high-performance EtherNet/IP interface designed for ControlLogix systems. This module enables seamless communication between controllers and devices over Ethernet networks, providing essential connectivity for industrial automation applications. Its robust design suits harsh environments, making it an ideal choice for demanding industrial settings.

Technical Specifications

l Part Number: 1756-EN2TXT

l Type: EtherNet/IP Communication Module

l Communication Rate: 10/100 Mbps

l Connections Supported:

l TCP/IP: Up to 128 connections

l CIP: Up to 259 connections

l Isolation Voltage: 30V (continuous), basic insulation type

l Operating Temperature Range: 0 to 60 °C (32 to 140 °F)

l Power Dissipation: 3.7 W

l Thermal Dissipation: 12.6 BTU/hr

l Module Location: Chassis-based, any slot

Detailed Features of Allen-Bradley 1756-EN2TXT

1. High-Speed Communication: Facilitates fast data transfer rates of up to 100 Mbps, ensuring efficient operation of connected devices.

2. Multiple Connection Support: Can handle a significant number of TCP/IP and CIP connections, allowing for extensive network integration.

3. Robust Design: Engineered for durability in harsh and corrosive environments, making it suitable for various industrial applications.

4. Easy Integration: Compatible with ControlLogix systems, simplifying users' setup and configuration process.

Applications

The Allen-Bradley 1756-EN2TXT Communication Module is widely used in various industrial applications, including:

1) Industrial Automation Systems: Provides reliable communication between PLCs and field devices, enhancing overall system performance.

2) Remote Monitoring Systems: Enables remote access and monitoring of equipment and processes through Ethernet connectivity.

3) Data Acquisition Systems: Facilitates real-time data collection from multiple sources for analysis and reporting.

4) Process Control Applications: Supports integration with various protocols and devices, ensuring efficient control of manufacturing processes.

Installation

To install the Allen-Bradley 1756-EN2TXT module:

l Ensure the ControlLogix chassis is appropriately mounted and powered.

l Insert the module into any available slot within the chassis.

l Connect Ethernet cables to the module's RJ45 ports per your network requirements.

l Configure the module settings using the appropriate programming software.

Related Part Numbers

Compatible Modules: 1756-EN2T, 1756-ENBT, 1756-EWEB
