Discover the Power of Allen Bradley 1756 ControlLogix and 1756-enbt a

1. Introduction to Allen-Bradley PLCs

1.1 Overview of Allen Bradley

The Allen-Bradley 1756 ControlLogix system serves as a versatile and robust solution for industrial automation. It offers different I/O modules, including digital, analog, motion control, and specialty types. These modules cater to the diverse needs of various industrial applications. These modules deliver high reliability and integrate easily into multiple systems, making them ideal for manufacturing, energy, and process automation applications.

Users support multiple communication protocols and integrate seamlessly with other Rockwell Automation products. This modular system enables users to easily expand and maintain operations, ensuring that industrial processes remain efficient and reliable.

1.2 Importance of Logix Series

l The Allen-Bradley Logix series anchors modern industrial automation. It offers scalable, high-performance control across numerous applications.

l Users enjoy the advantages of a unified programming environment, Studio 5000.

l In this environment, Logix PLCs—including ControlLogix, CompactLogix, and GuardLogix—integrate seamlessly with Rockwell Automation products.

l These products include the 1734 I/O series, drives, and HMIs.

l These controllers ensure precision in complex tasks, processing, and control. Engineers gain flexibility and readiness for the future with the Logix sDesign. Its modular Design, featuring movable terminal blocks (RTB), enhances ease of maintenance and scalability. The built-in safety features in GuardLogix meet SIL 3/PLe standards, ensuring operational reliability and safety.

l The Logix series offers robust thermal dissipation and high isolation voltage, ensuring stable performance even under operational shock. Compatibility with the FactoryTalk Suite simplifies data visualization and analytics, while PlantPAx integration enhances process control efficiency.

l Users can reduce total ownership costs through energy efficiency, simplified wiring with removable terminal blocks, and predictive maintenance. Supply Tech’s internal review process ensures each controller meets the highest standards of quality and performance. As smart manufacturing evolves, industries trust the Logix series to drive productivity, safety, and innovation.

2. Key Features of 1756 Allen Design

2.1Modular Design

Its moduDesignsign supports expansion and customization without major overhauls.

This interoperability creates a unified, scalable automation architecture that simplifies system management and lowers integration costs. Users mix and match modules with ease, ensuring adaptability and reliability in new installations or system upgrades.

Advanced processors and optimized firmware handle complex tasks and large data volumes in real-time. This capability ensures precise control and rapid response in dynamic manufacturing environments, boosting overall productivity and efficiency.

Users depend on the 1756 modules to handle multiple processes simultaneously without any delay. This is particularly important in applications like robotics and high-speed machinery.

These modules work seamlessly with Rockwell Automation’s system and utilize fast communication methods, including EtherNet/IP and DeviceNet. This enables seamless data transfer, coordinated operations, and real-time monitoring.

3. Deep Dive into Specific Models

3.1Allen Bradley 1756-L61

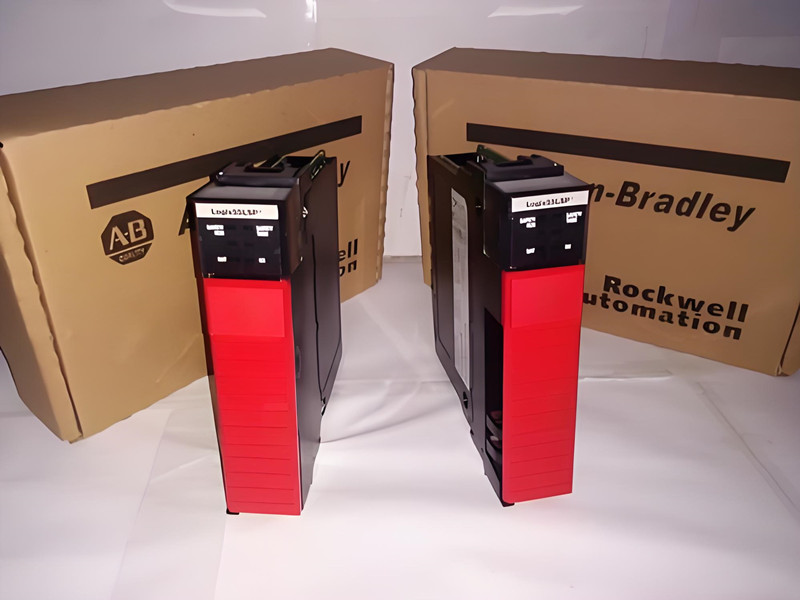

The Allen-Bradley 1756-L61. Its ability to manage complex tasks with real-time control makes it ideal for highly automated systems. This sets it apart from other controllers.

3.2Allen Bradley 1756-L71

The Allen-Bradley 1756-L71 stands out with its enhanced memory, faster processing speed, and improved communication capabilities. It supports complex control tasks and has built-in motion and safety features. This makes it ideal for large, high-performance automation systems across various industries.

3.3Allen Bradley 1756-PA72

The Allen-Bradley 1756-PA72  key advantage is delivering stable, redundant-ready power for demanding applications, ensuring uninterrupted operation in critical industrial automation environments.

3.4 Allen Bradley 1756 en2t

The Allen-Bradley 1756-EN2T Communication Module has two Ethernet module ports. These ports help create strong network connections. They ensure smooth communication between controllers, I/O devices, and other networked equipment.

Supporting EtherNet/IP and CIP protocols, the 1756-EN2T ensures efficient data transfer and real-time control. Engineers benefit from the dual-port Design, which provides eDesigns’ redundancy and reliability in critical industrial applications. The module’s easy configuration and integration capabilities effectively support connected automation systems.

3.5 Allen-Bradley 1756 ba2

The 1756-BA2 ensures uninterrupted ControlLogix memory backup with reliable lithium battery power. This device features a compact design, allowing for easy mounting on a DIN rail.

Engineers design it to last in harsh conditions. It protects essential data during power outages. This ensures systems run smoothly and maintains operations in challenging automation settings.

3.6 Allen-Bradley 1756 l82e

The 1756-L82E delivers high-performance automation with 3.5 MB of memory, 10,000 I/O points, and embedded Gigabit Ethernet. Engineered for scalability, security, and precision, it excels in complex control applications, ensuring seamless, real-time processing and reliability.

3.7 Allen-Bradley 1756 l75

The 1756-L75 combines robust processing power with 1.5 MB of memory, supporting up to 4,000 I/O points. Ideal for demanding automation, it delivers high-speed control, seamless integration, and Rockwell’s trusted reliability, optimized for precision in complex industrial applications.

3.8 Allen-Bradley 1756-ba2

The 1756-BA2 safeguards critical ControlLogix memory with a long-life lithium battery. This device features a compact design, allowing for easy mounting on a DIN rail. Engineers design it to withstand the rigors of strict industrial settings.

It prevents data loss during power outages. This ensures that operations continue smoothly and that the system remains reliable in important automation tasks.

3.9 allen bradley 1756 ia16i

The 1756-IA16I delivers 16-channel, 120VAC isolated digital input control with robust industrial protection. Featuring LED status indicators, high noise immunity, and seamless ControlLogix integration, it ensures reliable signal processing in harsh environments, maximizing uptime and system performance.

3.10 Allen-Bradley 1756 l73

The 1756-L73 delivers high-speed control with 3 MB memory and 10,000 I/O capacity. This device has built-in Ethernet/IP, motion control, and strong security. It works well in complex automation. It ensures precision, scalability, and Rockwell’s famous reliability for important industrial tasks.

3.11 allen bradley 1756-oa16

The 1756-OA16 provides 16-channel, 120VAC isolated digital output control with rugged industrial durability. This device has LED diagnostics, short-circuit protection, and easy ControlLogix integration. It provides reliable power switching in harsh environments. This helps improve performance and reduce downtime for critical automation systems.

3.12 allen bradley 1756 pb75

The 1756-PB75 delivers 75W of ultra-stable power to ControlLogix systems, with 90% efficiency and 5V/1.2V DC outputs. Engineered for industrial harshness, it features DIN-rail mounting, thermal overload protection, and surge immunity, ensuring uninterrupted automation performance in mission-critical applications.

3.13 Allen-Bradley 1756-tech

The 1756-TBCH provides a high-density, 32-point screw-terminal interface for ControlLogix I/O modules. This product has strong construction, clear labels, and easy wiring. It simplifies installation and ensures secure connections in challenging industrial settings. This helps improve the efficiency and reliability of your automation system.

3.14 Allen-Bradley 1756-en2tr

The 1756-EN2TR provides dual-port Gigabit Ethernet/IP connections for ControlLogix systems. It supports 10/100/1000 Mbps auto-negotiation and DLR. With advanced diagnostics and CIP Sync support, it offers 50 µs of real-time performance. This allows fast and reliable communication for critical industrial networks.

3.15 Allen-Bradley 1756 pa75r

The 1756-PA75R delivers 75W of reliable AC/DC power (85-265VAC input) for ControlLogix systems, featuring 5V/1.2V DC outputs with ±1% regulation. Engineered for industrial resilience, it offers DIN-rail mounting, thermal overload protection, and 90% efficiency, ensuring stable performance in harsh environments.

3.16 Allen-Bradley 1756-if8i

The 1756-IF8I delivers 8-channel, high-resolution (16-bit) analog input processing with ±0.05% accuracy. The device supports voltage and current signals like 0-10V, ±10V, and 0-20mA.

It has isolation between channels. This ensures accurate measurements in noisy industrial settings. Perfect for process control and important monitoring tasks.

3.17 Allen-Bradley 1756-pa75

The 1756-PA75 provides 75W of stable AC/DC power (85-265VAC input) for Allen Bradley ControlLogix systems, delivering precision 5V/1.2V DC outputs with ±1% regulation. Built for harsh industrial environments, it features thermal protection, 90% efficiency, and DIN-rail mounting, ensuring reliable operation in mission-critical applications.

3.18 Allen-Bradley 1756-l82e

The 1756-L82E combines 3.5MB of memory, 10,000 I/O points, and embedded Gigabit Ethernet/IP for high-performance automation. With CIP Motion, CIP Safety, and robust security, it excels in complex control and safety tasks. It offers precision, scalability, and Rockwell’s trusted reliability.

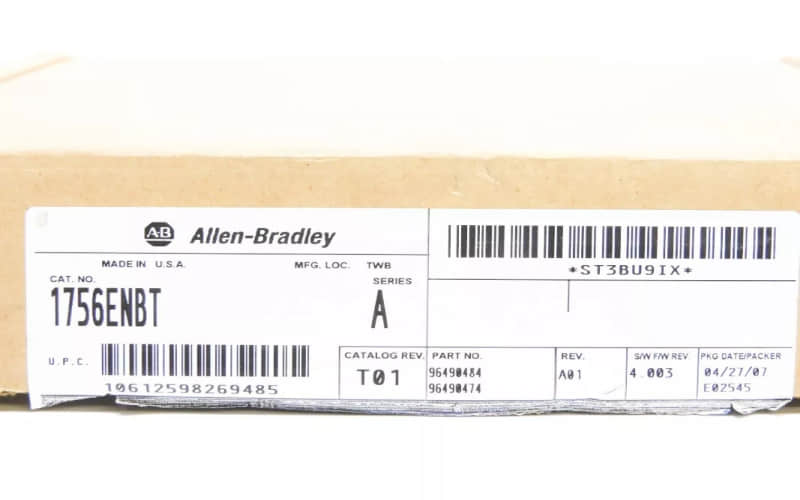

3.19 Allen-Bradley 1756-enbt

Allen-Bradley 1756-ENBT EtherNet/IP module: 10/100 Mbit, 128 CIP/256 TCP connections, half/full duplex, DIN mount, 0–60 °C, UL/CE.

4. Functional Modules and Applications

4.1 Allen Bradley 1756 Analog Input Modules

1756 a4 Allen-Bradley

The Allen-Bradley 1756 a4 stands out with its compact 4-slot chassis, supporting modular system design. It enables flexible configuration, high backplane power distribution, and RIUP functionality, making it ideal for space-limited, high-performance ControlLogix automation applications.

1757-A7

The Allen-Bradley 1756-A7 offers a 7-slot chassis with enhanced capacity for ControlLogix systems. It stands out because it supports larger applications.

It provides reliable backplane power. It also allows module expansion. High-performance communication and flexible maintenance achieve this through RIUP and electronic keying.

Allen Bradley 1756 ent

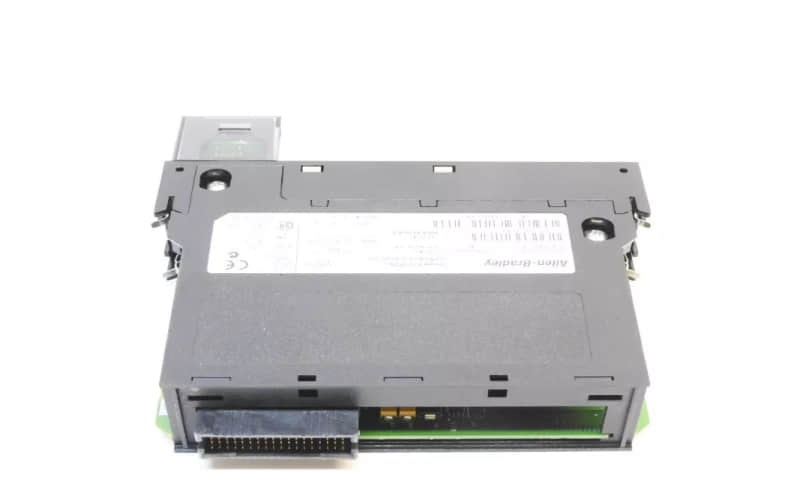

The Allen Bradley 1756-ENBT is a powerhouse in industrial automation. It seamlessly integrates Ethernet module connectivity with robust PLC functionality. Its reliability and versatility make it a standout choice for optimizing complex systems, ensuring seamless communication, and maximizing efficiency in diverse industrial applications.

Allen Bradley 1756 a10

The Allen-Bradley 1756-A10 is a strong and flexible 10-slot ControlLogix chassis. It provides reliable connections and housing for ControlLogix modules. It supports high backplane current ratings, ensuring efficient power distribution and compatibility with various modules. Its open-style enclosure and wide operating temperature range make it suitable for diverse industrial environments.

Allen-Bradley 1756-psca2

Reliable 1756-PSCA2 delivers robust 5V/10A power, ensuring seamless ControlLogix performance. Engineers designed it with excellent efficiency, thermal protection, and DIN-rail mounting for industrial strength and accuracy. This keeps your automation system running smoothly, even under harsh conditions.

4.2 Bradley 1756 Digital Output Modules

1756-OW16I

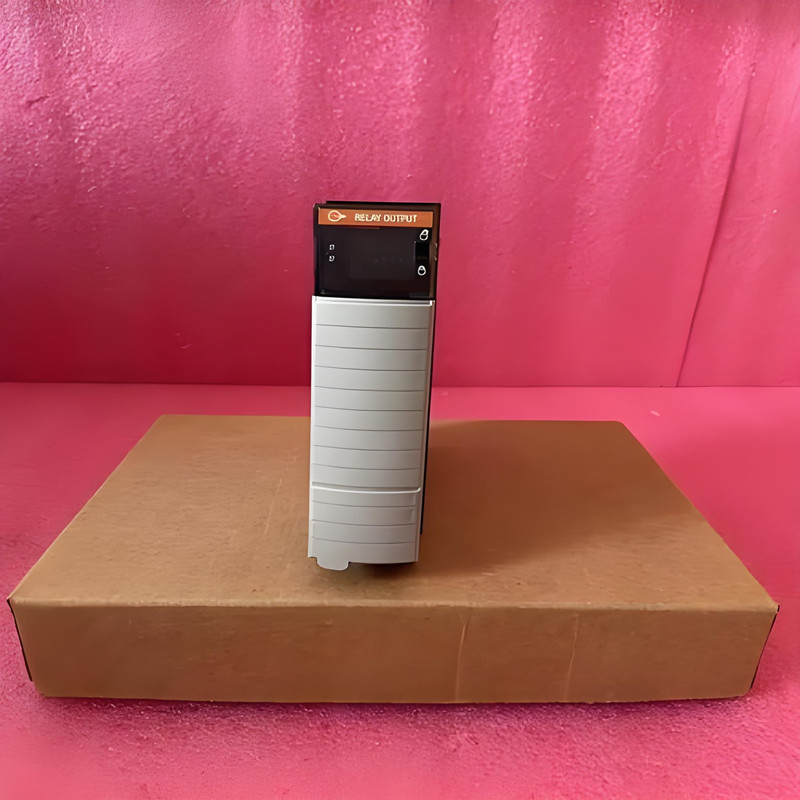

The Allen-Bradley 1756-OW16I features 16 individually isolated relay outputs, supporting both AC and DC loads. Its unique isolation per channel allows mixed-voltage applications, enhancing flexibility, reliability, and safety in complex industrial control environments.

Allen-Bradley 1756-pb75

The 1756-PB75 delivers robust 75W power for ControlLogix systems, ensuring stable 1.2V-5V DC outputs with 90% efficiency. Engineered for industrial resilience, it features DIN-rail mounting, thermal protection, and noise immunity, guaranteeing uninterrupted performance in harsh automation environments.

Allen Bradley 1756 en2tr

The 1756-EN2TR dual-port Ethernet/IP module delivers high-speed 10/100/1000 Mbps connectivity for ControlLogix systems. With advanced diagnostics, DLR support, and seamless integration, it ensures real-time data exchange and network resilience in mission-critical industrial automation applications.

Allen Bradley 1756 ib32

The 1756-IB32 offers 32-channel, 24VDC sinking digital input control with ultra-fast response (<1ms). This product serves tough industrial use. It has LED diagnostics and high noise immunity.

It also integrates easily with ControlLogix. This ensures it works reliably in busy automation and harsh conditions.

allen bradley 1756 oa16

The 1756-OA16 provides 16-channel, 120VAC isolated relay output control with robust industrial protection. This device has individual LED status lights, short-circuit tolerance, and easy integration with ControlLogix. It provides reliable switching performance in challenging situations. This helps reduce downtime and increase operational efficiency.

5. Programming Allen-Bradley PLCs

5.1Programming Software Compatibility

l Rockwell Automation designs Allen-Bradley automation products for seamless compatibility with Studio 5000 and Studio 5000 Logix Designer. Engineers utilize these platforms to configure, program, and manage Allen-Bradley controllers, I/O modules, and devices.

l User-friendly interfaces and extensive function block libraries simplify the development process. Offline simulation and online troubleshooting features further enhance productivity.

l This software works well with Allen-Bradley systems. It allows for easy integration and maintenance. This makes it a top choice for automation professionals.

5.2 Support for Allen-Bradley 1756 IF16

l Engineers use the Allen-Bradley 1756-IF16 analog input module for high-precision signal conversion. It supports 16 single-ended channels or eight differential channels. It handles voltage inputs of ±10V and current inputs of 0-20mA. It also provides 16-bit resolution.

l The module offers channel-level diagnostics and electronic fusing for added protection. Users integrate the 1756-IF16 seamlessly into ControlLogix systems using Studio 5000, ensuring real-time data accuracy and reliability.

l This module works well in harsh environments. It makes configuration and maintenance easier. This makes it great for process control and monitoring.

5.3Reliability and Support

l Robust Construction and Testing Rockwell Automation builds the Allen-Bradley 1756 series for industrial durability. Engineers rely on its rugged metal chassis and high-grade components to withstand harsh environments.

l Each module undergoes rigorous testing—vibration, shock, and temperature cycling—to ensure reliability under extreme conditions. Conformal-coated PCBs and EMI/RFI shielding protect against dust, moisture, and interference.

l The system meets UL, CE, and ATEX standards, which guarantee safe, long-term operation. Its strong Design reduces Designme. It also extends the life of automation systems. This is especially important in industries such as oil, gas, mining, and heavy manufacturing.

6. Purchase Policy

l All BTU hour modules purchased from Zhenyoumei are guaranteed to be original factory products. Each module is brand new and purchased with a warranty.

l We offer a variety of high-quality modules and repair services. Each one comes with a free one-year warranty from Zhenyoumei. This warranty backs your purchase with our commitment to quality and customer satisfaction.

If you have a question, need a repair, or want product reviews, please send us a note or email. We will get back to you as soon as possible.
