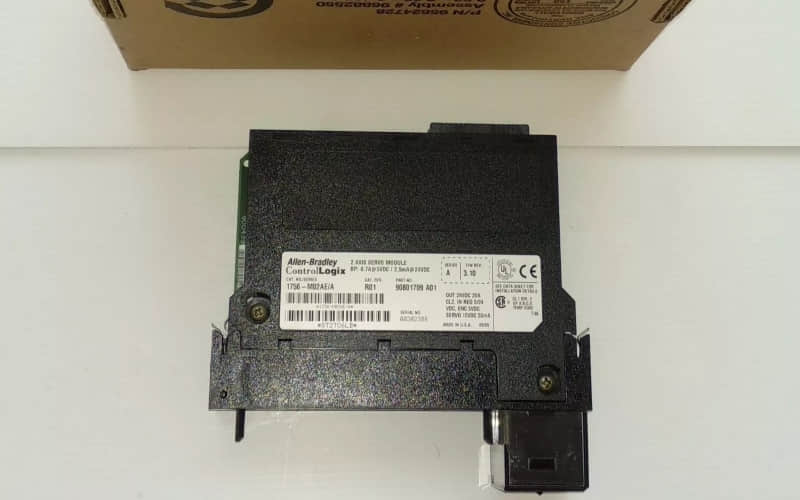

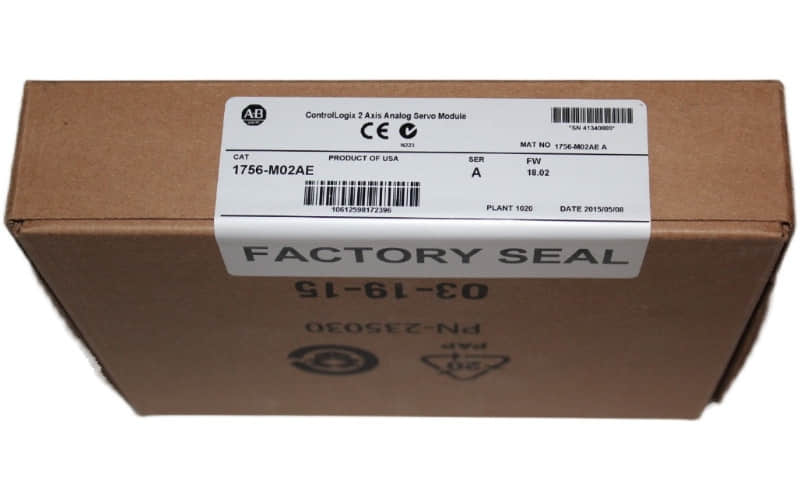

Allen-Bradley 1756-M02AE ControlLogix Servo Module

1.General Description

The Allen-Bradley 1756-M02AE ControlLogix Analog Motion Servo Module is a high-quality motion control device.  Part of the ControlLogix family by Allen-Bradley. Designed for precision position and velocity loop motion control, it provides advanced motion capabilities for demanding industrial applications.

This closed-loop module is perfect for systems that need accurate positioning. It handles registration input and gets position feedback from encoders or other devices.

The 1756-M02AE supports both open-loop and closed-loop setups. It allows smooth control of up to 32 axes in coordinated motion systems. This is possible when using multiple modules in the same chassis.

The Allen-Bradley 1756-M02AE Series A Cat Rev G01 provides fast updates for position and speed. This makes it ideal for servo-driven machines that need real-time syncing and precision.

2.Technical Specifications of Allen-Bradley 1756-M02AE

l Number of Axes per Module: 2

l Servo Loop Type: Nested PI digital position and velocity servo (closed loop)

l Gain Resolution: 32-bit floating point

l Absolute Position Range: ±1,000,000,000 encoder counts

l Update Rate: 5 kHz

l Current Draw @ 5.1V DC: 700 mA

l Current Draw @ 24V DC: 2.5 mA

l Power Dissipation: 5.5 W

l Isolation Voltage: 30V continuous

l Slot Width: 1

l Module Location: Chassis-based, any slot

3.Detailed Features for 1757-m02ae plcs/machine control from allen bradley

l Integrated Home and Limit Switch Inputs – Simplifies setup and provides reliable motion boundaries for safety.

l Drive Fault Inputs and Enable Outputs – Offers immediate feedback to enhance system reliability and fault detection.

l Position Registration Inputs – Supports 5V and 24V signals for flexible integration with external sensors or devices.

l Analogue Servo Control – Enables high-precision analogue motion management for servo systems.

l Fast Response Times – The 1756-M02AE updates its position and velocity loops quickly, ensuring responsive, accurate control.

l Loop Motion Control Flexibility – Supports open-loop and closed-loop motion control. This allows easy adaptation to different machine needs.

4.Applications of Allen Bradley 1756 M02AE

A. Robotics Automation: Provides coordinated control for robotic arms and AGVs, ensuring smooth and repeatable motion.

 B. CNC Machinery: Delivers precise position and velocity control essential for high-speed machining and toolpath accuracy.

 C. Packaging Equipment: Handles synchronised movements for labelling, cutting, and filling systems.

 D. Material Handling Systems: Enhances conveyor and sorting systems through reliable loop motion control.

 E. PLCs and Machine Control Systems: Integrates seamlessly with other Allen-Bradley ControlLogix PLCs for centralised automation and diagnostics.

5.Installation of Allen-Bradley 1756-M02AE

l Preparation:

Power down all connected systems before installation.

Gather necessary tools (screwdrivers, wiring materials, RTB connectors).

l Mounting the Module:

Align the 1756-M02AE with the designated slot in the ControlLogix chassis.

Slide and lock the module until it clicks securely in place.

l Wiring Connections:

Use a removable terminal block (RTB) for all wiring connections.

Follow the wiring diagram to connect the analogue feedback, encoder, and registration inputs correctly.

l Configuration:

Use Rockwell Automation software tools to configure motion parameters (loop gains, feedback type, axis setup).

Clearly label all connections for maintenance efficiency.

l Testing and Power-Up:

Reapply power and verify LED status indicators.

Confirm communication with the ControlLogix controller and check motion loop stability.

6.Related Part Numbers of 1756 m02as

l Allen-Bradley 1756-M02AS – For SSI (Synchronous Serial Interface) position feedback applications.

l Allen-Bradley 1756-HYD02 – Designed for hydraulic motion control systems.

l Allen-Bradley 1756-M03SE – Advanced motion control supporting extended servo applications.

l Allen-Bradley 1757-M02AE – Related model offering similar analogue servo module functionality.
