Allen-Bradley 1762-L24BWA MicroLogix 1200 PLC

General Description

The Allen-Bradley 1762-L24BWA is part of the MicroLogix 1200 series, known for its high performance and ease of use. This PLC has 24 I/O points, comprising 16 discrete inputs and 8 relay outputs. It is ideal for applications requiring precise control and monitoring of processes in manufacturing, packaging, and other industrial sectors. The controller supports various programming languages via RSLogix 500 software, allowing users to implement complex automation solutions efficiently.

Technical Specifications of 1762-L24BWA

l Part Number: 1762-L24BWA

l Series: MicroLogix 1200

l Input/Output Configuration:

l Inputs: 16 digital inputs (24V DC)

l Outputs: 8 relay outputs (10A at 120/240V AC)

l Power Supply Voltage: 85-265V AC

l Memory:

n Program Memory: Up to 4 KB

n Data Memory: Up to 1 KB

l Operating Temperature Range: 0°C to 60°C (32°F to 140°F)

l Dimensions:

l Height: 90 mm (3.54 in)

l Width: 110 mm (4.33 in)

l Depth: 87 mm (3.43 in)

l Weight: Approximately 1 kg (2.2 lbs)

Detailed Features of 1762-L24BWA

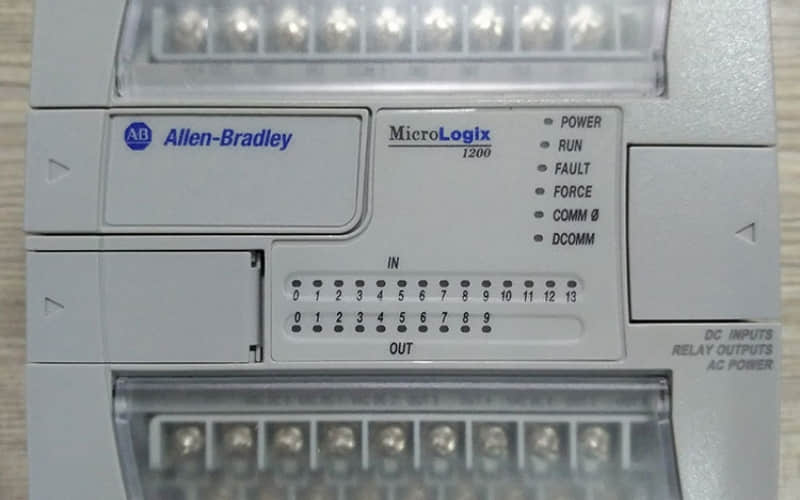

l Integrated LCD Display: Provides real-time status updates and allows users to configure settings directly on the device.

l Extensive Diagnostics: Built-in diagnostic capabilities help troubleshoot issues quickly, enhancing reliability.

l Multiple Communication Options: Supports RS-232 and DH-485 protocols for seamless integration with other devices and networks.

l Flexible I/O Expansion: Can accommodate additional I/O modules, allowing customization based on specific application needs.

Applications of 1762-L24BWA

A. The Allen-Bradley 1762-L24BWA is suitable for various applications across multiple industries:

l Manufacturing Automation: Controls machinery and processes in production lines, enhancing efficiency and reducing downtime.

l Building Automation: Manages commercial buildings' HVAC systems, lighting controls, and security systems.

l Packaging Systems: Automates food and beverage industries' labeling, filling, and packing processes.

l Water Treatment Facilities: Monitors and controls pumps, valves, and other equipment in water treatment processes.

B. Detailed Application Examples:

l Automated Conveyor Systems: The controller can manage the operation of conveyor belts by controlling motors based on sensor inputs.

l Temperature Control Systems: These are used in HVAC applications to maintain desired temperature levels by regulating heating or cooling units.

Installation

l Preparation:

Ensure that all necessary tools are available, including screwdrivers and wire strippers.

Review the installation manual for specific wiring diagrams.

l Mounting:

Mount the controller on a DIN rail or panel per the installation guidelines.

Ensure that there is adequate space around the unit for ventilation.

l Wiring:

Connect power supply wires to the designated terminals according to the wiring diagram.

Wire the input devices to the input terminals and output devices to the relay output terminals as specified.

l Powering Up:

Once all connections are secure, power is applied to the unit.

Observe the LCD for any error messages or status indicators.

l Configuration:

Use RSLogix 500 software to program the controller according to your application requirements.

Test inputs and outputs using built-in diagnostic tools to ensure proper operation.

Related Part Numbers

The following part numbers are related to the same series:

l 1762-L24AWA: Similar model with different output configurations.

l 1762-L40BWA: A higher capacity model with more I/O points.

l 1762-L40BXB: Another variant with enhanced features for advanced applications.
