Allen-Bradley 1769-ECL Compact I/O Series A essential component

General Description

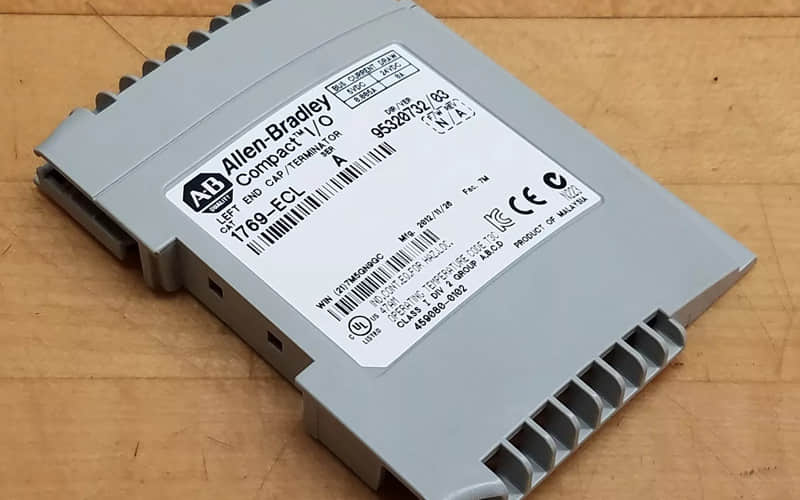

The 1769-ECL module is specifically designed to cap the left end of a communication bus. It ensures the system maintains proper communication integrity and electrical isolation, which are crucial for optimal performance in automation tasks. The compact design allows for efficient use of space in control panels while maintaining high operational standards.

Technical Specifications

l Specification Details

l Part Number 1769-ECL

l Series A and B

l Manufacturer Rockwell Automation

l Module Type Left End Cap Module

l Dimensions (L x W x H) 87 mm x 15 mm x 118 mm

l Weight 0.2 kg

l Operating Temperature 0 - 60 °C (32 - 140 °F)

l Maximum Bus Current Draw 5 mA at 5 volts DC

l Backplane Current 1.4 Amps at 24 Volts

l Power Consumption 33.6 Watts

l Enclosure Type Rating None (Open Style)

Detailed Features

A. Durable Construction: Built to withstand industrial environments with a temperature range of -40 to +185 °F.

B. Electrical Isolation: Provides necessary isolation for safe operation and protection against electrical faults.

C. User-Friendly Installation: The tongue-and-groove design simplifies module installation and ensures secure connections.

D. Compatibility: Designed to work with various Allen-Bradley control systems, including CompactLogix and MicroLogix series.

Applications of 1769-ECL

1. Manufacturing Control Systems: Integrates seamlessly into production lines, requiring reliable I/O communication.

2. Process Automation: Supports monitoring and control in chemical, food, and beverage processing environments.

3. Building Automation: Utilized in HVAC systems for efficient environmental control.

4. Machine Control Systems: Enhances functionality in machinery requiring precise input/output operations.

Installation

To install the Allen-Bradley 1769-ECL module:

l Ensure that the power supply is turned off before installation.

l Align the module with the tongue-and-groove slots on the existing I/O rack.

l Slide the module into place until it locks securely into position.

l Connect any necessary wiring to ensure proper communication with other modules.

Related Part Numbers

l 1769-ECLK: Right End Cap Module

l 1769-IA8I: AC Input Module

l 1769-OA8: AC Output Module
