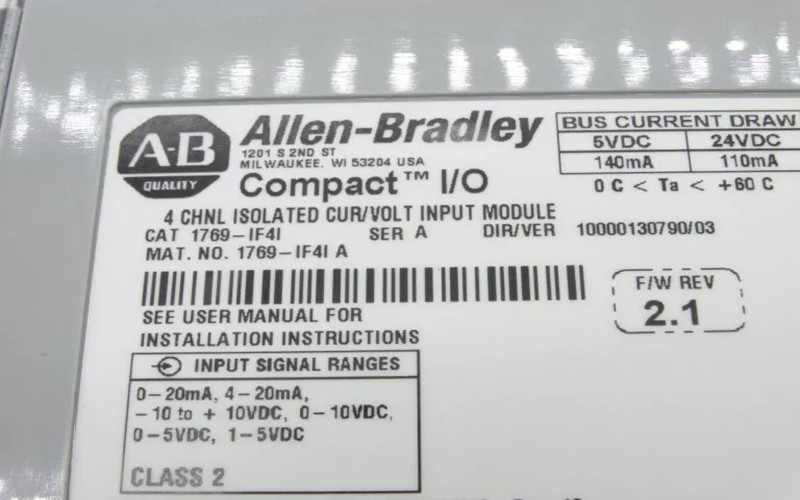

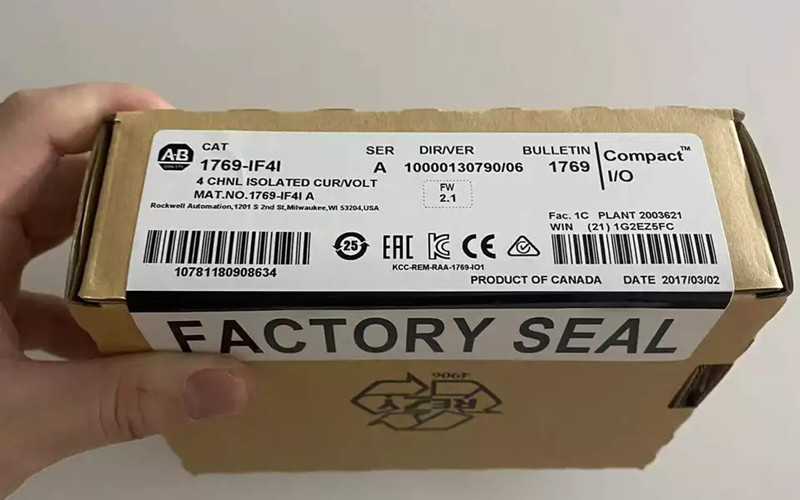

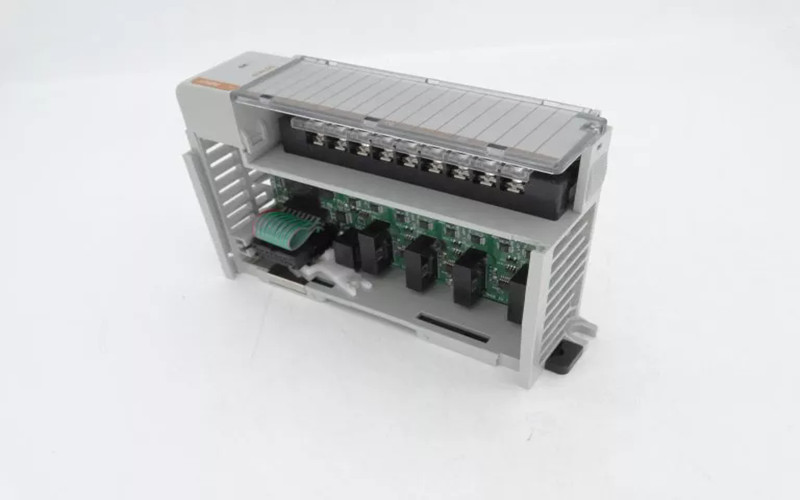

Allen-Bradley 1769-IF4I PLC Module

The Allen-Bradley 1769-IF4I is a CompactLogix analog input module that provides four isolated input channels for measuring voltage and current signals. This module is ideal for applications requiring precise analog data acquisition and is compatible with the ControlLogix platform.

General Description of the 1769-IF4I module

The 1769-IF4I module enables users to connect various sensors and transmitters, providing flexibility in monitoring processes. It features isolated inputs to minimize interference from electrical noise, ensuring reliable performance in demanding industrial environments.

Technical Specifications

l Manufacturer: Rockwell Automation

l Part Number: 1769-IF4I

l Input Channels: 4 isolated channels

l Input Types: Voltage (0-10V, 0-5V, etc.) and Current (4-20 mA)

l Resolution: 16 bits

l Operating Temperature Range: 0 to 60 °C (32 to 140 °F)

l Power Supply Requirement: 5V DC @ 145 mA; 24V DC @ 125 mA

l Enclosure Type Rating: None (open-style)

l Dimensions: 118 mm (H) x 35 mm (W) x 87 mm (D)

Detailed Features

A. Isolated Inputs: Each channel is electrically isolated, reducing the risk of ground loops and improving signal integrity.

B. Multiple Input Configurations: Supports various sensor types, allowing for versatile application in different environments.

C. Status LEDs: Provide visual feedback on module status and operational conditions.

D. Compact Design: Facilitates easy installation in control panels or on DIN rails without occupying excessive space.

Applications of the 1769-IF4I module

The Allen-Bradley 1769-IF4I module is widely used in various industrial applications, including:

l Process Control Systems: Ideal for monitoring temperature, pressure, and flow rates using compatible sensors.

l Manufacturing Automation: Integrates with machinery to collect real-time data for operational efficiency.

l Environmental Monitoring: Utilizes voltage and current inputs from environmental sensors to ensure compliance with safety standards.

l Building Automation Systems: Connects to HVAC systems for monitoring and controlling environmental conditions.

Installation Details of 1769-IF4I module

To install the Allen-Bradley 1769-IF4I module:

1. Mounting Location Selection: Choose a suitable location on a DIN rail or panel mount.

2. Secure the Module: Ensure the module is firmly attached using the provided mounting tabs.

3. Wiring Connections:

4. Connect input signals to the terminal block using the wiring diagram.

5. Ensure that power supply connections are made correctly, observing polarity.

6. Configuration Setup: Use Rockwell software tools to configure the module settings and calibrate inputs as necessary.

Related Part Numbers

Compatible components include:

l 1769-TB3 (Terminal Block for CompactLogix)

l 1769-PB2 (Power Supply for CompactLogix)
