Unleashing the Potential of Allen-Bradley 1761

1. Introduction

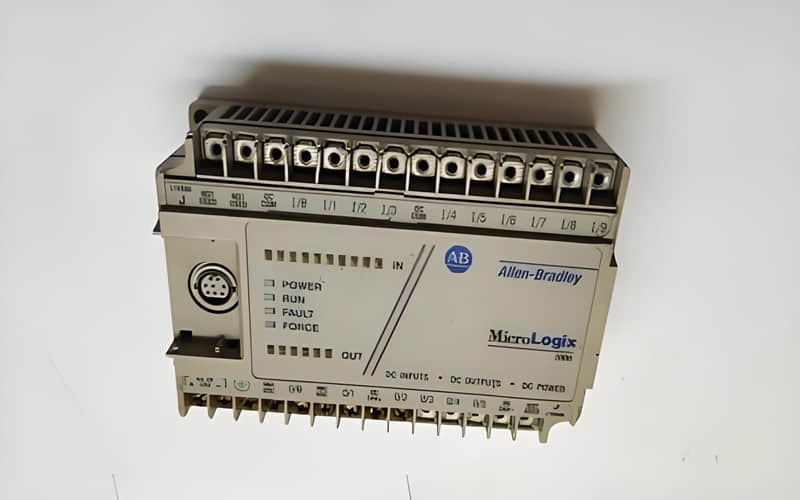

1.1 Overview of Allen-Bradley 1761 Series

The Allen-Bradley 1761 Series is part of the Allen-Bradley MicroLogix 1000 family. It provides a small and affordable solution for basic automation systems. This series supports supervisory control and data acquisition (SCADA) applications with reliable performance.

The 1761 modules offer both digital and analogue I/O in a compact design. You can easily mount them on a DIN rail.

Using the DF1 protocol over RS-232 or DH-485 ports, these controllers enable peer-to-peer communication, allowing seamless connectivity with operator interfaces and other devices. Supply Inc. offers a variety of 1761-net AIC and other connectivity options to expand system capabilities. The rugged build ensures dependable use in packaging, HVAC, and material handling industries.

1.2 Importance of CompactLogix in Modern Automation

CompactLogix bridges the gap between small standalone systems and large-scale automation, offering scalable, high-performance control. Its Ethernet/IP connectivity enhances data exchange across machines and enterprise networks, boosting response time and efficiency. Supply Tech professionals rely on CompactLogix for smart manufacturing, delivering flexibility and integration essential for digital transformation.

2. Features and Specifications

2.1 1761 L16BWA Allen-Bradley

Series: MicroLogix 1000

Power Supply: 120/240V AC

Inputs: 10 Digital Inputs (120V AC)

Outputs: 6 Relay Outputs

Memory: 1 KB user program, 0.5 KB data

Communication: RS-232 Port (DF1 protocol)

Mounting: DIN Rail or Panel Mount

Programming: RSLogix 500

2.2 Allen-Bradley 1761-L16AWA

Series: MicroLogix 1000

I/O Count: 16 I/O (8 digital inputs, 8 relay outputs)

Input Voltage: 120/240V AC

Output Type: Relay

Power Supply: Integrated

Communication Port: RS-232 (DF1 protocol)

Mounting: DIN rail or panel

2.3 Allen-Bradley 1761-L32BWA

32 I/O (19 digital inputs, 13 relay outputs)

120V AC input voltage

Relay output type

RS-232 communication (DF1 protocol)

DIN rail or panel mount

2.4 Allen-Bradley 1761-L32BWB

32 I/O (19 digital inputs, 13 relay outputs)

240V AC input voltage

Relay output

RS-232 communication (DF1 protocol)

DIN rail or panel mount

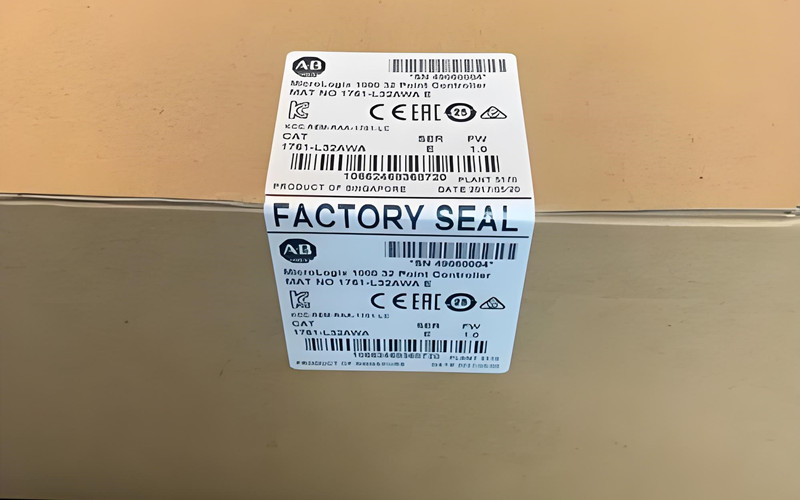

2.5 Allen Bradley 1761 L32AWA

The 1761-L32AWA controller includes 32 I/O points, with 16 digital inputs and 16 relay outputs. It operates on 120/240V AC and communicates via RS-232 using DF1 protocol. Its compact design supports DIN rail or panel mounting, offering installation flexibility.

3. Connectivity Options

3.1 Allen-Bradley 1761 NET AIC

This adapter provides reliable, high-speed connections, supporting efficient data exchange. Supply Inc. offers a variety of repair services and technical notes for this module.

3.2 Allen-Bradley 1761 NET ENI

This enhances communication between devices and facilitates system integration. It supports standard Ethernet protocols, enhancing response time and simplifying SCADA connectivity in modern automation setups.

4. Wiring and Configuration

4.1 Allen-Bradley 1761 CBL PM02

With RS-232 and mini-DIN connectors, it enables smooth programming and troubleshooting using RSLogix 500 software. Supply Tech recommends securing connections and following proper wiring guidelines.

4.2 Pinout Configuration for 1761 CBL PM02

Connect the RS-232 end of the cable to your PC’s serial port, and the mini-DIN end to the controller. Select the correct COM port in RSLogix 500 and configure the baud rate and parity (typically 19200 baud, no parity). This setup ensures reliable DF1 protocol communication.

4.3 Installation Best Practices

Avoid routing the cable near high-voltage lines to minimise electrical noise interference. Use strain relief to protect the cable and keep connectors clean.

Maintain recommended cable lengths to guarantee communication integrity. Always power down equipment before connecting or disconnecting the cable. Supply Inc. offers a free one-year warranty on cables purchased through their supply services.

5. Future of Allen-Bradley 1761 Series in Automation

The 1761 Series is a reliable choice for small to medium programmable logic controllers PLCs). People recognise it for its simplicity and dependability in automation tasks.

Newer platforms, such as CompactLogix and ControlLogix, offer advanced features. However, many industries still use the Allen-Bradley MicroLogix 1000. This is because it works well for older systems and simple applications.

Supply Inc provides repair services, warranty from Do Supply, and technical support to ensure these modules remain operational. The 1761 Series will continue playing a key role in bridging traditional PLC functionality with future automation demands.
