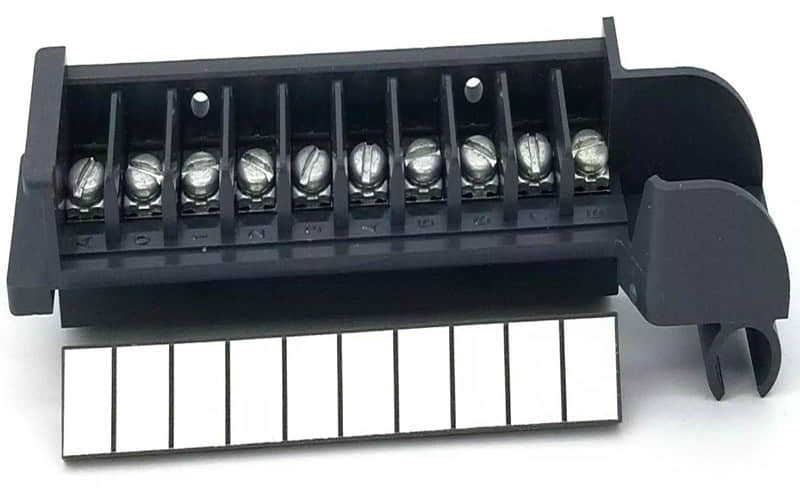

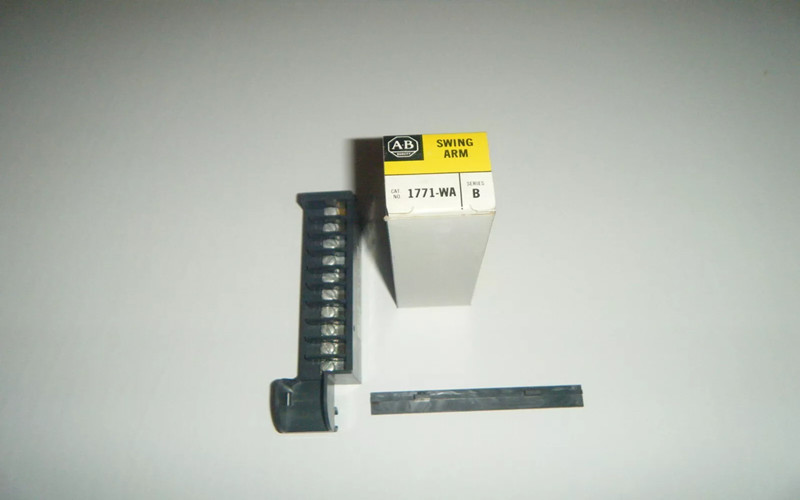

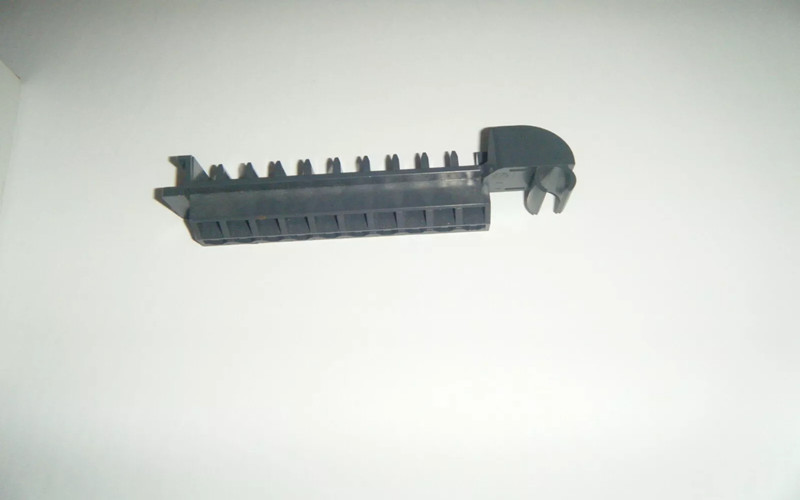

Allen-Bradley 1771-WA Wiring Arm

General Description:

The Allen-Bradley 1771-WA Wiring Arm is essential for the PLC-5 family of programmable logic controllers. This wiring arm provides a convenient interface for connecting field devices to the I/O modules, ensuring reliable and efficient signal transmission in industrial automation applications.

Technical Specifications of 1771-WA Wiring Arm

l Manufacturer: Rockwell Automation

l Brand: Allen-Bradley

l Part Number: 1771-WA

l Type: Field Wiring Arm

l Number of Terminals: 10 terminals

l Connection Type: Screw terminals

l Material: Tin-plated for corrosion resistance

l Compatibility: Works with various I/O modules, including 1771-DW, 1771-IA, 1771-IB, 1771-IC, and others.

Detailed Features:

1. Pivoting Design: The wiring arm pivots on the chassis, allowing easy access to wiring connections without removing the module from the chassis.

2. Durable Construction: Built with high-quality materials to withstand harsh industrial environments and ensure long-lasting performance.

3. Simplified Maintenance: Facilitates quick module replacement and maintenance by providing direct access to terminal connections.

4. Clear Labeling: Each terminal is clearly labeled, making it easier for technicians to identify connections during installation and troubleshooting.

Applications of 1771-WA Wiring Arm:

The Allen-Bradley 1771-WA Wiring Arm is utilized in various applications, including:

A. Industrial Automation Systems: Connects field devices such as sensors, actuators, and switches to PLC modules, enabling seamless data acquisition and control.

B. Process Control Applications: Facilitates reliable communication between I/O modules and process instrumentation in manufacturing environments.

C. Machine Control Systems: Integrates with various Allen-Bradley I/O modules to create efficient machine control solutions tailored to specific operational needs.

D. Maintenance and Upgrades: Simplifies the process of upgrading or replacing I/O modules in existing systems, reducing downtime and enhancing productivity.

Installation:

To install the Allen-Bradley 1771-WA Wiring Arm:

l Ensure power is turned off to avoid electrical shock or damage during installation.

l Align the wiring arm with the designated mounting points on the I/O module and secure it using the provided screws or locking mechanisms.

l Connect field wiring to each terminal according to the application requirements. Ensure all connections are tight and secure to prevent signal loss or interference.

l After completing the wiring connections, pivot the arm against the module.

l Power on the system and verify proper operation through diagnostic indicators on the connected modules.

Related Part Numbers:

l 1771-WHF: Fused Wiring Arm providing additional fuse protection for output circuits.

l 1771-WHFB: Fused Wiring Arm with enhanced features for specific applications.

l 1771-WH: Standard Wiring Arm compatible with various I/O modules in the PLC-5 series.
