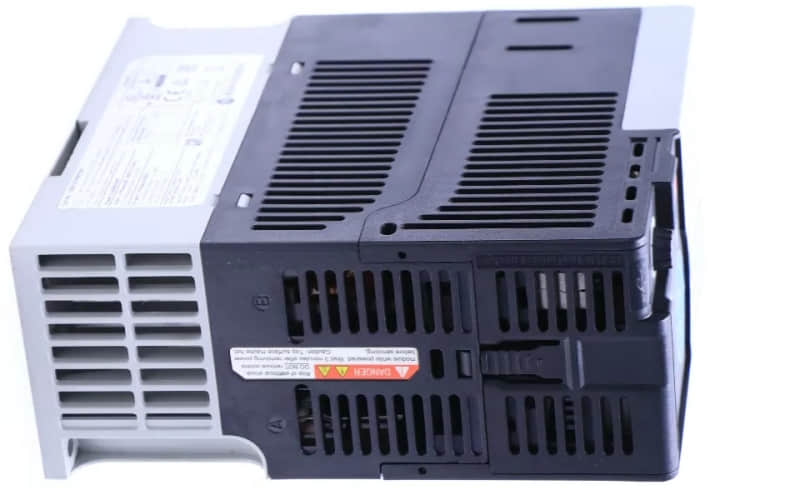

Allen-Bradley 25B-D1P4N104 PowerFlex 525 AC Drive 0.5 HP

General Description:

The Allen-Bradley 25B-D1P4N104 is a PowerFlex 525 AC Drive with a power rating of 0.4 kW (0.5 HP), designed for industrial automation and motion control applications. This drive offers a compact design, embedded EtherNet/IP for easy integration into existing networks, and advanced safety features to ensure reliable operation in various environments.

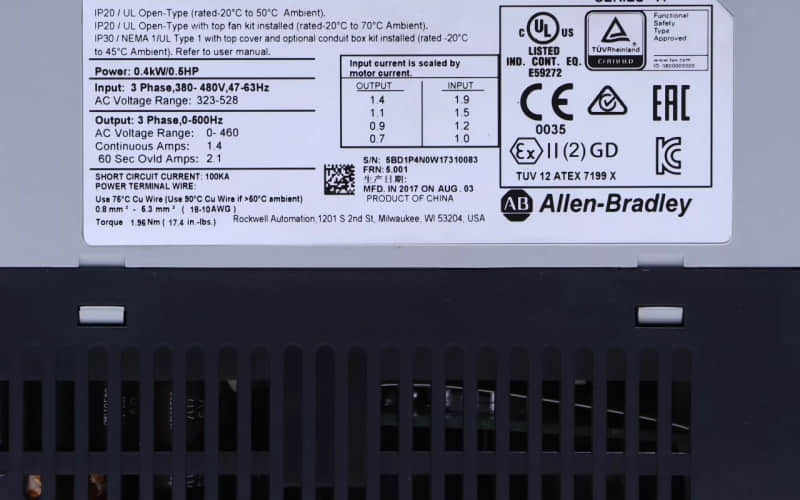

Technical Specifications of 25B-D1P4N104 PowerFlex:

l Power Rating: 0.4 kW (0.5 HP)

l Input Voltage: 480 VAC, 3 Phase

l Frequency Range: 50/60 Hz

l Output Current: 1.4 Amps

l Frame Size: A-Frame

l Mounting Type: Panel Mounting

l IP Rating: IP20/NEMA Open Type

l Duty: Normal Duty; Heavy Duty

l Enclosure Type: UL NEMA Type Open

Detailed Features of 25B-D1P4N104 PowerFlex:

1. The 25B-D1P4N104 has advanced control algorithms for precise motor control, providing smooth acceleration and deceleration profiles.

2. It features a user-friendly interface for easy setup and configuration, with local or remote operation options.

3. The drive supports various motor types and applications, making it a versatile choice for different industrial processes.

4. The embedded EtherNet/IP allows seamless integration with other devices and systems, enabling efficient data transfer and control.

Applications of 25B-D1P4N104 PowerFlex :

The 25B-D1P4N104 is suitable for various applications, including conveyor systems, pumping systems, and other processes that require variable speed control of motors. Its compact design and advanced features make it ideal for space-constrained environments where precise motor control is essential.

Installation:

Installation involves mounting the drive on a panel and connecting the input power, motor connections, and control inputs according to the manufacturer's guidelines. It is important to ensure proper grounding and cable management to prevent electrical noise and ensure safe operation.

Related Part Numbers of the Same Series:

l 25B-D1P4N110

l 25B-D1P4N160

l 25B-D1P4N200

l 25B-D017N104

l 25B-D024n104

l 25B-D030N104

l 25B-D010N104
