Endress+Hauser FMR52-AAACCABPCGK+AK

FMR52-AAACCABPCGK+AK Product Details:

Radar Measurement Time-of-Flight Principle Micropilot FMR52

For level measurement in corrosive liquids or applications with hygiene requirements

Product Specifications

Measurement accuracy +/- 2 mm (0.08 in)

Process temperature -40...+200 °C (-40...+392 °F)

Process pressure (absolute) / Maximum overpressure limit Vacuum...25 bar (Vacuum...363 psi)

Maximum measuring distance Standard: 40 m (131 ft) With advanced dynamics: 60 m (197 ft)

Main wetted parts PTFE

FMR52-AAACCABPCGK+AK Application field

The Micropilot FMR52 uses a flush-mounted horn antenna made of integral PTFE material, which has excellent corrosion resistance advantages and is used for the level measurement of highly corrosive liquids. The FMR52 sensor is certified by ASME BPE, USP VI, 3-A, and EHEDG and is also suitable for hygiene-sensitive measurement applications in the food and life science industries. Micropilot is used for continuous, non-contact level measurement of liquids, slurries, and mud. Changes in media, temperature, gas phase media, or steam do not affect the measurement.

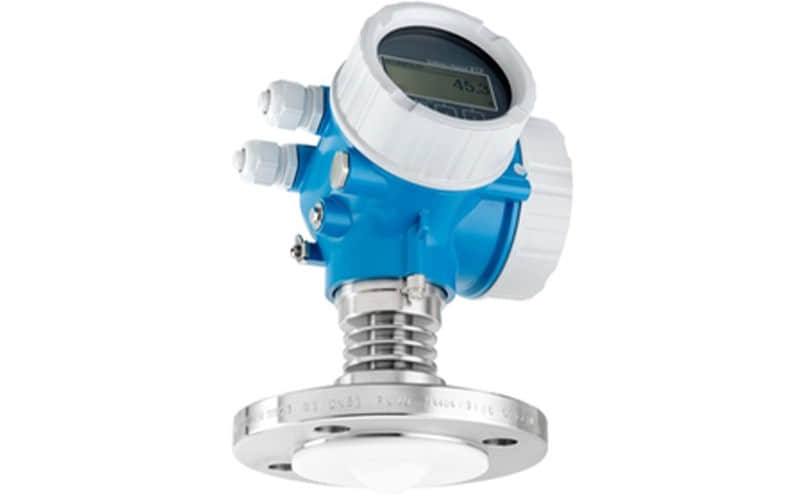

Flush-mounted, PTFE perfectly sealed horn antenna.

l Process connection: flush-mounted composite flange, process connection that meets hygiene requirements (clamp type, 11851)

l Temperature range: -196°C to +200°C (-320,8 to +392°F)

l Pressure range: -1 to +25bar (-14.5 to +362psi)

l Maximum measuring range: 40m (131ft), advanced dynamic response 60m (197ft)

l Accuracy error: ±2mm

l K-band: 26GHz

l International explosion-proof certification, WHG overflow protection, SIL, hygienic certification, marine certification

FMR52-AAACCABPCGK+AK Advantage

l Hardware and software development process complies with IEC 61508 standard, a single instrument meets SIL2, and SIL3 can be achieved under homogeneous redundancy conditions.

l Stable and reliable non-contact measurement, not affected by changes in media and process conditions

l HistoROM integrated data storage unit to help with quick commissioning, maintenance, and diagnosis

l High measurement reliability, based on multi-echo tracking calculation, accurate measurement can still be achieved even if there are obstacles in the tank

l Heartbeat technology enables efficient and safe plant operation throughout the entire life cycle

l Seamless integration into control or asset management systems, intuitive menu-guided operation concept (on-site or through the control system)

l Saves you time and money with world-renowned SIL and WHG experimental certifications

Level measurement

l Continuous level measurement and limit detection of liquids and solid particles

l Level measurement ensures stable product quality, plant safety, and economic efficiency. Liquid, slurry, solid particle, and liquefied gas level measurements are commonly used in storage tanks, silos, and tankers. Various measurement principles exist for continuous level, interface, density measurement, and limit detection. Endress+Hauser provides complete services from measurement point planning and commissioning to maintenance.

Advantage

l Provides the right solution for every measurement task

l As one of the world's leading level measurement technology companies, Endress+Hauser is committed to ensuring the safety of your assets.

l Global support and services

l Technical support throughout the product life cycle
