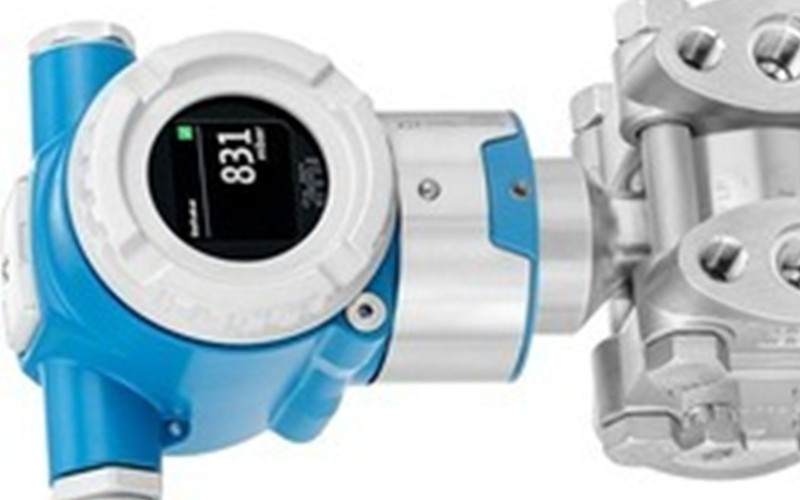

Endress+Hauser PMP71-GBA1W21GHAAA Digital Pressure Transmitter

General Description:

The Endress+Hauser PMP71-GBA1W21GHAAA measures pressure, level, volume, or mass in liquids or gases. This device features a metallic membrane and a two-chamber aluminium or stainless steel housing. It also supports various process connections, including threads and flanges.

Technical Specifications:

l Pressure Range: 100 bar to 700 bar (1.5 to 10,500 psi)

l Process Temperature: -40°C to 125°C (-40°F to 257°F)

l Accuracy: ±0.05%, "Platinum" ±0.025%

l Process Membrane Material: 316L, Alloy C, Rhodium > Gold

l Communication Protocols: 4-20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Features:

1. High accuracy and long-term stability

2. Quick setup menu for easy commissioning

4. Available with mounted manifolds for leak testing

5. Seamless system integration with HART/PA/FF

6. Endress+Hauser PMP71-GBA1W21GHAAA Applications:

7. Pressure measurement in liquids and gases

8. Level, volume, and mass measurement in process industries

9. Suitable for high-pressure applications up to 700 bar

10. Ideal for SIL2/3 safety systems and custody transfer applications

Installation Procedure Step by Step:

A. Preparation: Ensure the process connection is clean and free of debris.

B. Mounting: Attach the transmitter to the process using the appropriate thread or flange connection.

C. Electrical Connection: Connect the transmitter to the control system using the specified wiring diagram. Ensure grounding if required.

D. Initial Setup: Power the transmitter and use the local display or FieldCare software to configure the device.

E. Calibration: Perform zero and span calibration using reference pressure sources.

F. Final Check: Verify the measurements and ensure the transmitter operates within the specified range.

Endress+Hauser PMP71-GBA1W21GHAAA Related Part Numbers:

l PMP71-AAA1WB1GAAAA

l PMP71-AAA-1U21-RHAA-U

l PMP71-GBA1W21GHAAA
