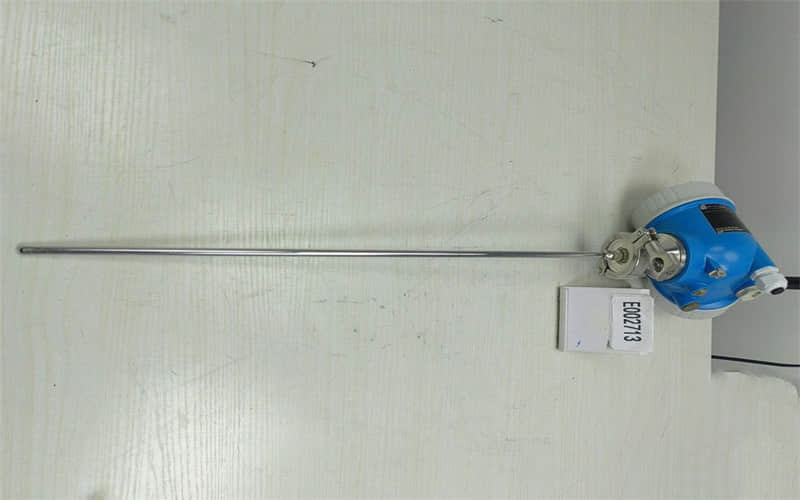

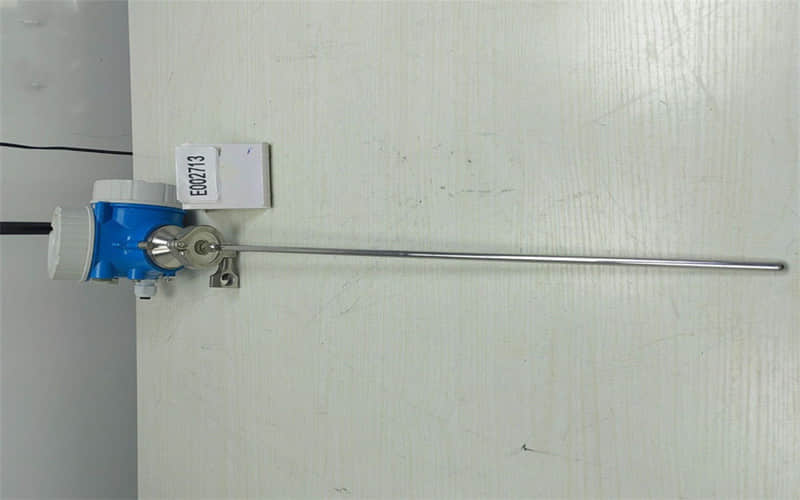

Endress Hauser FMP53-AAAACADAB5TOJ Guidance Radar
1. General Description
The Endress Hauser Levelflex FMP53 (FMP53-AAAACADAB5TOJ) is a guided wave radar level transmitter designed for continuous level measurement in hygienically sensitive environments. This radar sensor uses guided radar measurement and the Time-of-Flight (ToF) principle. It works well even in high-pressure, high-temperature, or foaming conditions.
The FMP53 is part of the Endress+Hauser guided wave radar level transmitter family. It helps you manage your main processes easily. The design targets the food and beverage, pharmaceutical, and chemical industries, where hygienic applications are critical.
The device is simple to choose, set up, and use. This makes it a dependable option for measuring liquid levels in tanks or silos.
2.FMP53 Product Specifications and Parameters
l Measuring Principle: Guided wave radar level measurement (ToF principle)
l Measuring Range: Up to 6 m (20 ft) with rod probe
l Accuracy: ±2 mm (0.08 in)
l Process Temperature Range: -20 to +150 °C (-4 to +302 °F)
l Process Pressure Range: Vacuum to 16 bar (Vacuum to 232 psi)
l Max Pressure Rating: Supports high-pressure operations
l Materials: 304, 304L, 316L stainless steel, PEEK (meets hygienic requirements)
l Output/Protocols: 4–20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus, Bluetooth®
l Certifications: ATEX, FM, CSA, IECEx, WHG overfill protection
l Performance: Optimized for continuous level measurement in storage tanks or process vessels
3. Application Fields
The Levelflex FMP53 is ideal for:
Food and beverage processing, where hygienic design is critical
Pharmaceutical manufacturing with strict quality standards
Chemical and biotechnology operations with changing product conditions
Storage tanks requiring accurate level detection and monitoring
Environments where differential pressure transmitters are less effective
It ensures reliable operation for measuring principles such as point level detection, continuous level monitoring, and liquid measurement under high-performance demands.
4.FMP53 Device Properties
Guided Wave Radar Level Transmitter – Delivers accurate results regardless of foam, vapor, or agitation.
Hygienic Approvals – Compliant with ASME BPE and USP Class VI standards.
Multi-Echo Tracking – Improves signal clarity by filtering out false echoes.
Remote Monitoring – Configure via SmartBlue app with Bluetooth® connectivity.
Easy Integration – Works seamlessly with any modern control system.
5 . Benefit from an accurate level sensor for liquid levels in dynamic conditions
sensor suitable for high-temperature and high-pressure processes
, a solution with reduced downtime and easy diagnostics
l Delivers reliable results compared to older differential pressure or mechanical devices
“Helps users compare radar and guided wave radar level transmitters. This helps them choose the right measurement technology.”
6. Comparison to Other Guided Wave Radar Level Transmitters
l Guided wave radar level transmitter Endress Hauser – Industry-leading hygienic design
l Guided wave radar level transmitter Emerson – Widely used in oil & gas
l Vega guided wave radar level transmitter – Known for chemical applications
Rosemount guided wave radar level transmitter – Strong in refinery processes
l Eclipse guided wave radar level transmitter – Focuses on industrial tank measurements
l E&H guided wave radar level transmitter – Specializes in hygienic and process applications
Standard radar sensors (80 GHz free-space radar) are effective in certain tanks. However, guided wave radar level transmitters perform better in narrow vessels, foaming liquids, and changing media.
