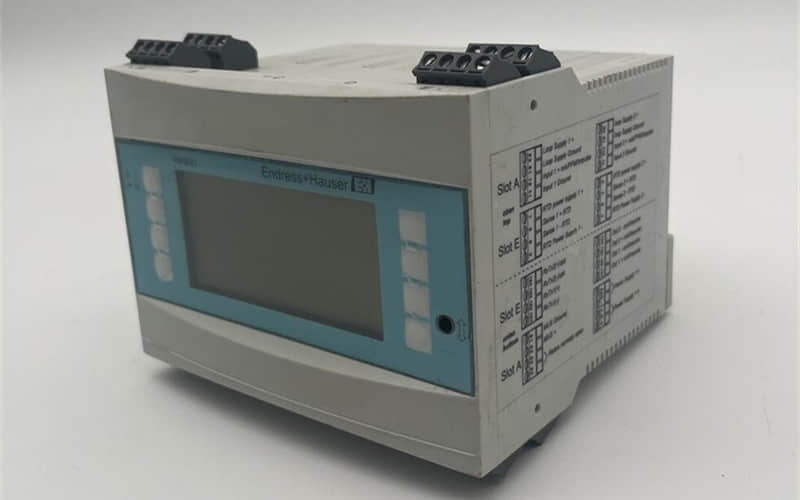

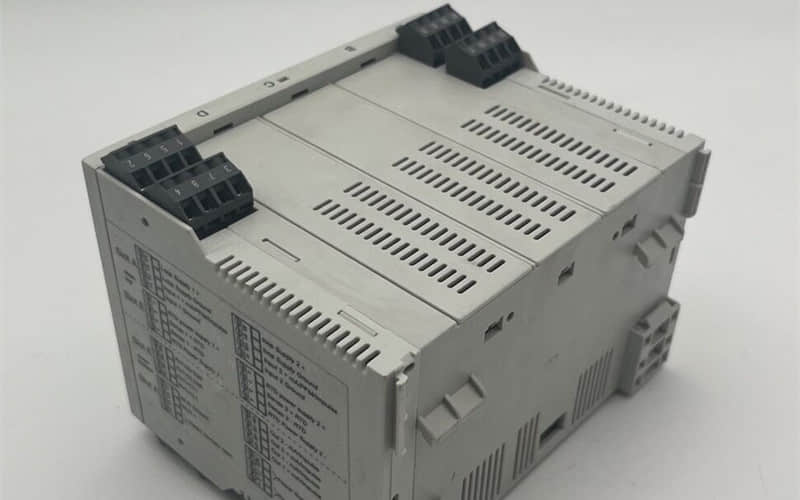

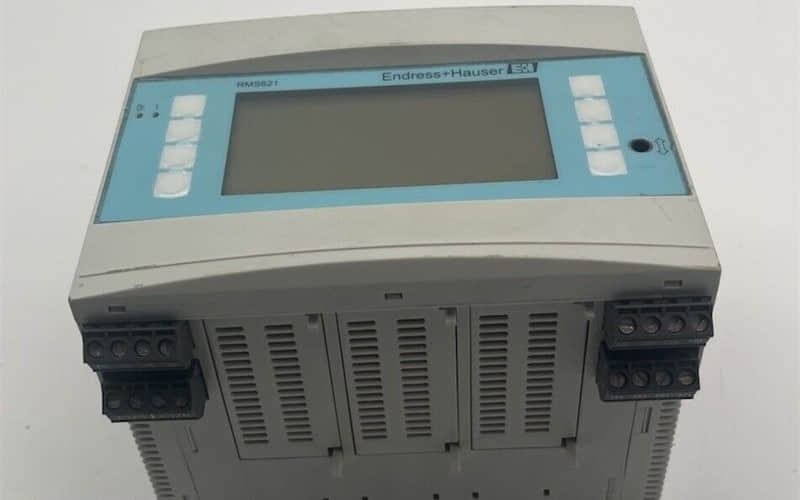

Endress+Hauser RMS621 Energy Manager

1.General Description:

The Endress+Hauser RMS621 Energy Manager, also called the RMS621 Steam and Heat Computer, is a high-quality tool. People use it for calculating energy in steam and water in industrial settings.

This device allows for accurate monitoring of energy and flows. It calculates steam mass, steam heat, and net steam quantity. It also measures standard volume, mass, and energy flows in gas, liquid, and steam systems.

The RMS621 helps industries reduce energy usage and improve energy efficiency through accurate data processing and advanced connectivity. Compatible with Modbus communication and ReadWin 2000 software, it supports easy configuration, monitoring, and data acquisition.

This product is no longer available. Endress+Hauser suggests looking for new alternatives. These can help you save energy and improve your skills in process control.

2.endress hauser rms621 modbus Product Specifications and Parameters:

l Inputs:

l Current: 0/4 to 20 mA (+10% over range), max input current 150 mA, input impedance < 10 Ω

l PFM: Frequency range of 0.25 Hz to 12.5 kHz (mainboard)

l Temperature: Supports Pt100, Pt500, Pt1000 (3- or 4-wire configuration)

l Pulse input

l Outputs:

l Current: 0/4 to 20 mA

l Pulse: Frequency range up to 2 kHz

l Digital: Passive, open collector (Imax = 200 mA, Umax = 24 V ±15%)

l Relay outputs

l Measuring Ranges:

l Steam Temperature: 0 to 800 °C (32 to 1472 °F)

l Pressure: 0 to 1000 bar (0 to 14503.8 psi)

l Accuracy:

l Arithmetic unit accuracy class as per EN 1434-1 / OIML R75 (<1.5%)

l Power Supply:

l 90 to 250 VAC, 50/60 Hz or 20 to 36 VDC, 20 to 28 VAC, 50/60 Hz

l Interfaces:

l RS232: 3.5 mm jack plug on the front panel, up to 57600 Baud

l RS485: Plug-in terminals, up to 57600 Baud

l Modbus Communication: Supported for system integration and remote data access

l Environmental Conditions:

l Ambient Temperature: -20 to 60 °C (-4 to 140 °F)

l Storage Temperature: -30 to 70 °C (-22 to 158 °F)

3.endress und hauser rms621 Application Fields:

Users commonly utilize the Endress+Hauser RMS621 in water and steam applications. It helps with energy management, flow monitoring, and process optimization. Typical use cases include:

l Steam and heat measurement systems in industrial facilities

l Water and energy consumption tracking for efficiency management

l Flow measurement using differential pressure, vortex, turbine, or orifice technologies

l Temperature and heat difference applications with Pt100, Pt500, and Pt1000 sensors

l Heating and cooling system monitoring

l Industrial energy efficiency projects aimed at reducing energy consumption

4.RMS621 Device Properties:

A. The RMS621 can process up to three applications simultaneously, with two resettable counters per application.

B. Each analog or pulse input features a dedicated transmitter power supply.

C. Provides galvanic isolation between expansion cards and the base unit for reliable operation.

D. Implements mathematical flow and differential pressure calculations per EN ISO 5167.

E. Calculates mass, density, enthalpy, and heat using algorithms and tables that follow IAPWS-IF97 water and steam standards.

F. The RMS621 calculates steam mass, steam heat quantity, and net steam quantity with high accuracy and stability.

G. Designed for use with ReadWin 2000 software for easy data visualization, configuration, and reporting.

5.endress hauser rms621 handbuch Benefits:

l Comprehensive Energy Management:

Enables monitoring of energy flows in water and steam applications for improved energy efficiency.

l Accurate Calculations:

The Endress+Hauser RMS621 Energy Manager gives accurate calculations of steam mass, heat amount, and net steam energy. This ensures reliable process data.

l Connectivity and Integration:

Supports RS485, Modbus, and RS232 interfaces, allowing seamless integration into existing energy management systems.

l Reduced Energy Usage:

Continuous monitoring helps reduce energy consumption and identify process inefficiencies.

l Ease of Operation:

Comprehensive operating manual (handbuch) and operating instructions make setup and calibration simple and intuitive.

l Professional Development:

Endress+Hauser supports professional development through technical documentation, ReadWin 2000 software, and application training programs.
