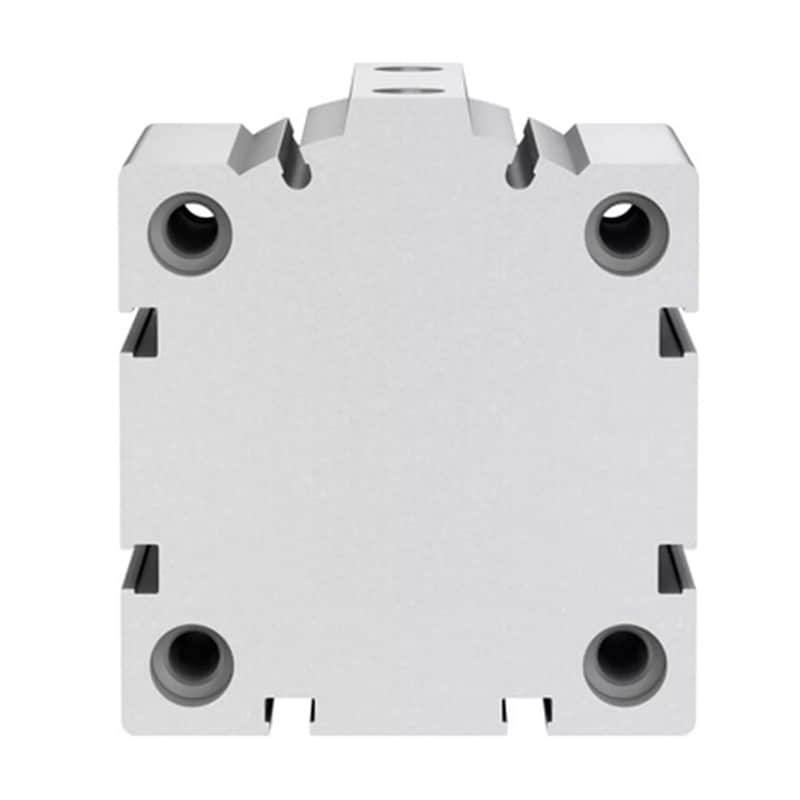

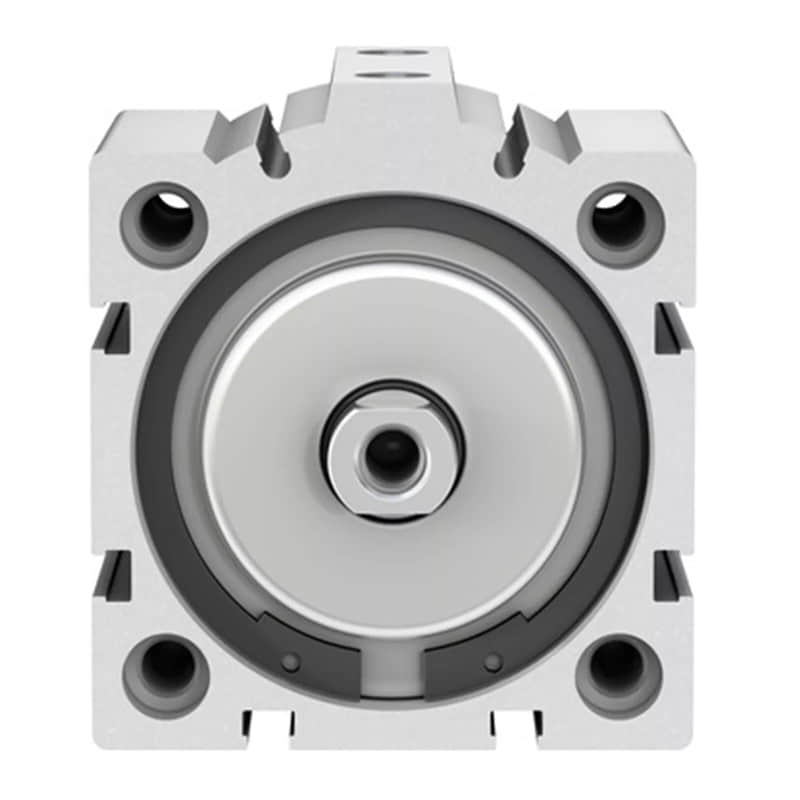

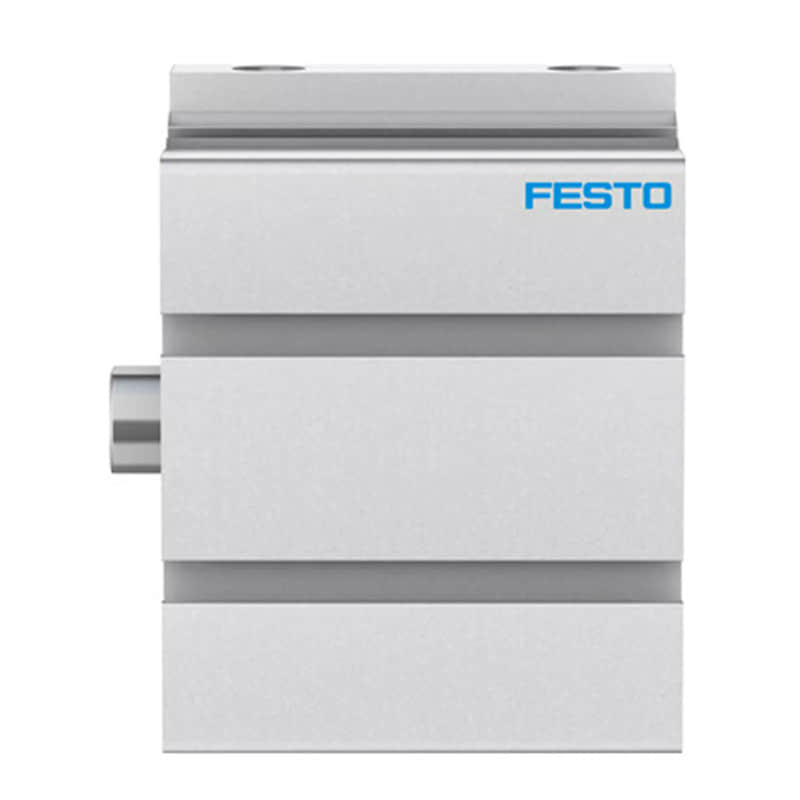

Festo ADVC-63-25-I-P Short-Stroke Cylinder 188291

General Description

The Festo ADVC-63-25-I-P is a double-acting short-stroke cylinder designed to meet the demands of modern automation systems. With a piston diameter of 63 mm and a stroke length of 25 mm, this cylinder provides significant force output while maintaining a compact footprint. It complies with ISO 6431 standards and features elastic cushioning rings for smooth operation.

Festo ADVC-63-25-I-P Technical Specifications

l Feature Specification

l Stroke 25 mm

l Piston Diameter 63 mm

l Operating Pressure 0.06 MPa to 1 MPa (0.6 to 10 bar)

l Ambient Temperature -20 °C to +80 °C

l Theoretical Force (Advance) 1870 N at 0.6 MPa

l Theoretical Force (Return) 1750 N at 0.6 MPa

l Material Wrought aluminum alloy, anodized

l Corrosion Resistance Class CRC 1 - Low corrosion stress

l Mounting Type Through-hole or accessories

l Pneumatic Connection G1/8

Features

1. Double-Acting Design: Provides efficient operation in both directions.

2. Elastic Cushioning: Ensures gentle deceleration at the end of the stroke.

3. Flexible Mounting Position: This can be installed in various orientations.

4. RoHS Compliant: Meets environmental safety standards.

Festo ADVC-63-25-I-P Applications

The Festo ADVC-63-25-I-P is widely used in:

A. Automation systems

B. Material Handling

C. Robotics

D. Packaging machinery

E. Assembly lines

Installation Procedure

l Preparation:

Gather necessary tools (screwdriver, wrench).

Ensure the installation area is clean and accessible.

l Mounting:

Choose the desired mounting position.

Use through holes or accessories to secure the cylinder in place.

l Pneumatic Connection:

Connect the pneumatic supply line to the G1/8 port.

Ensure all connections are tight and leak-free.

l Testing:

Apply the operating pressure gradually.

Check for proper operation and adjust as needed.

l Final Inspection:

Inspect all connections and ensure the cylinder operates smoothly without obstruction.

Festo ADVC-63-25-I-P Related Part Numbers

l ADVC-63-10-I-P (Shorter Stroke)

l ADVC-80-25-I-P (Larger Diameter)

l ADVC-A Series (With Position Sensing)
