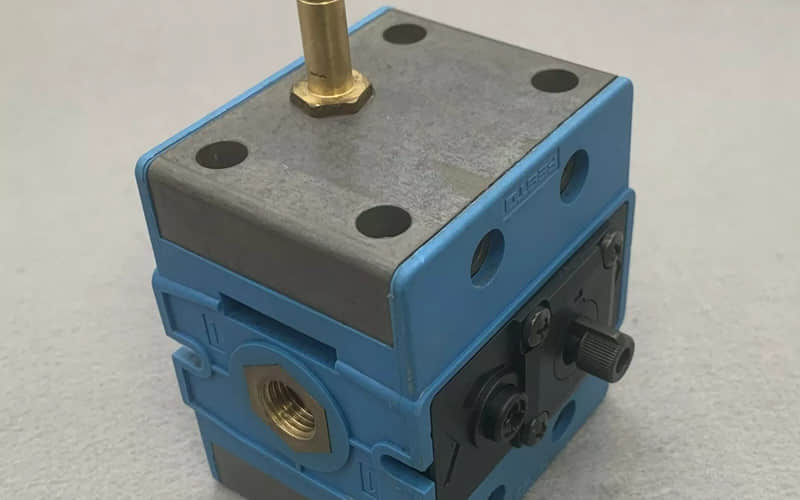

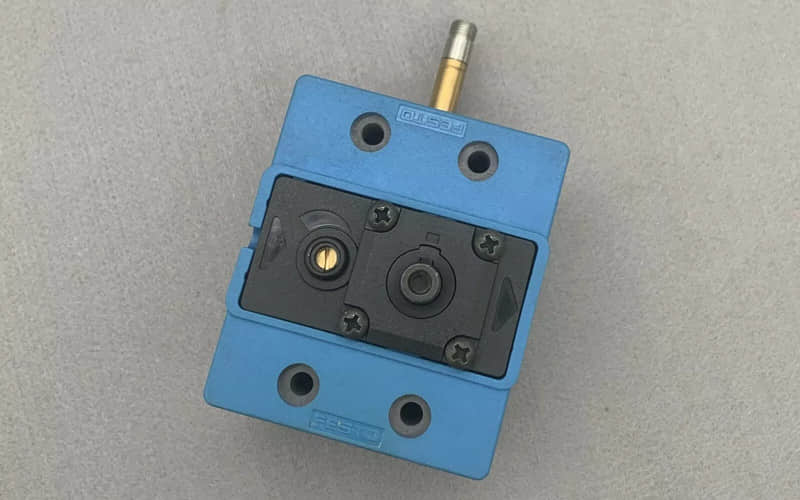

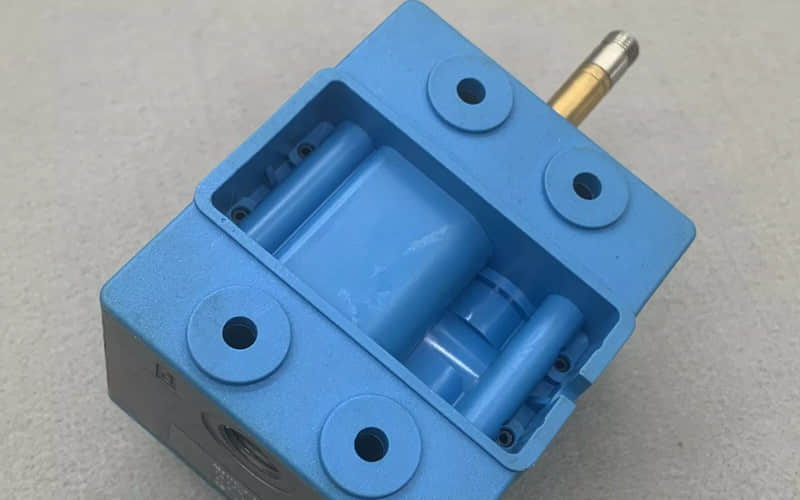

FESTO MFHE-3-1/4-B versatile solenoid valve

General Description

The FESTO MFHE-3-1/4-B solenoid valve is a robust device suitable for various industrial applications. It operates as an on-off valve with a poppet seat design, ensuring effective sealing and reliable performance. The valve is handy when controlled pressure build-up is essential, enhancing system safety and efficiency.

FESTO MFHE-3-1/4-B Technical Specifications

l Part Number: 14329

l Valve Type: On-off solenoid valve

l Connection Size: 1/4 inch

l Flow Direction: Non-reversible

l Sealing Principle: Soft sealing

l Weight: 0.52 kg (1.15 lbs)

l Operating Pressure Range: 0 to 10 bar

l Temperature Range: -10 °C to +60 °C

l Power Supply Voltage: 24V DC

Features

1. Delayed Pressure Build-Up: Allows for gradual pressure increase, preventing system shocks.

2. Manual Override: Enables manual operation during power failures or maintenance.

3. Compact and Lightweight Design: Facilitates easy installation in tight spaces.

4. Durable Construction: Built to withstand rigorous industrial environments.

FESTO MFHE-3-1/4-B Applications

The FESTO MFHE-3-1/4-B solenoid valve is ideal for:

l Pneumatic control systems

l Automation technology

l Soft-start applications in machinery

l Exhaust control in various industrial processes

Installation Procedure (Step by Step)

l Preparation:

Gather all necessary tools and ensure the workspace is clean.

Verify that the power supply is off before beginning installation.

l Mounting:

Select an appropriate location for installation.

Secure the valve using screws or brackets as needed.

l Pneumatic Connections:

Connect the pneumatic lines to the 1/4-inch ports.

Ensure all connections are tight to prevent air leaks.

l Electrical Connections:

Connect the power supply to the designated terminals, ensuring correct voltage and polarity.

Follow the wiring diagram provided by FESTO.

l Testing:

Turn on the power supply and test the operation of the valve.

Check for leaks in pneumatic connections and confirm proper functionality.

l Final Checks:

Ensure all connections are secure and document installation details for future reference.

FESTO MFHE-3-1/4-B Related Part Numbers

l MFHE-3-3/8 (Part number: 12908)

l MFHE-3-1/2 (Part number: 10421)
