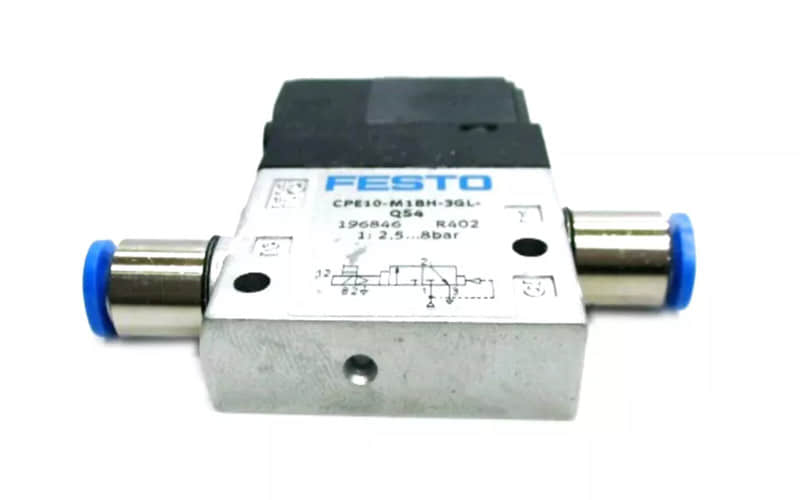

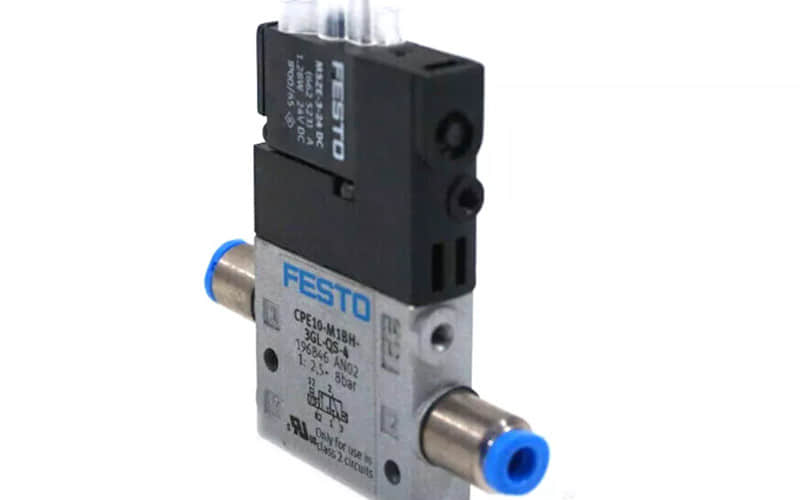

Festo CPE10-M1BH-3GL-QS-4 Solenoid Valve

General Description

The Festo CPE10-M1BH-3GL-QS-4 is a 3/2-way solenoid valve designed for pneumatic systems. It features a normally closed configuration and is actuated electrically, making it suitable for various industrial applications. Its compact dimensions (10mm width) and robust construction ensure reliable operation in diverse environments.

Festo CPE10-M1BH-3GL-QS-4 Technical Specifications

l Specification Details

l Valve Function 3/2 closed, monostable

l Actuation Type Electrical

l Width 10 mm

l Standard Nominal Flow Rate 190 l/min

l Operating Pressure 2.5 to 8 bar

l Pneumatic Connection Size QS-4 (4 mm)

l Protection Class IP65

l Ambient Temperature Range -5 to 50 °C

l Coil Voltage 24 V DC

l Power Consumption 1.28 W

l Material Die-cast aluminum housing, NBR seals

Features

l Pneumatic Spring Reset: Ensures reliable return action.

l Internal Pilot Air Supply: Simplifies installation by reducing external components.

l Soft Sealing Principle: Provides a secure seal to prevent leaks.

l Versatile Mounting Options: These can be installed in various orientations.

Festo CPE10-M1BH-3GL-QS-4 Applications

The Festo CPE10-M1BH-3GL-QS-4 solenoid valve is widely used in:

1. Automation systems

2. Robotics

3. Packaging machinery

4. Material handling equipment

Installation Procedure (Step by Step)

l Preparation:

Gather necessary tools: screwdriver, wrench, and tubing.

Ensure the work area is clean and free of debris.

l Mounting:

Select an appropriate location for installation.

Use through-hole mounting to secure the valve in place.

l Connecting Pneumatic Lines:

Connect the pneumatic supply line to the QS-4 ports on the valve.

Ensure all connections are tight to prevent leaks.

l Electrical Connections:

Connect the electrical supply (24 V DC) to the valve's terminals.

Ensure the correct polarity is as per the wiring diagram.

l Testing:

Turn on the pneumatic supply and power to the valve.

Test the operation by activating the solenoid to ensure proper function.

l Final Inspection:

Check for leaks in pneumatic connections.

Verify electrical connections are secure.
