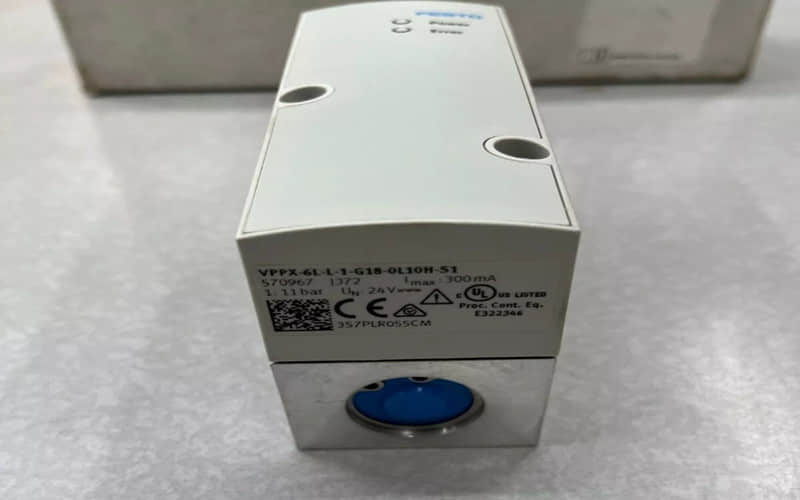

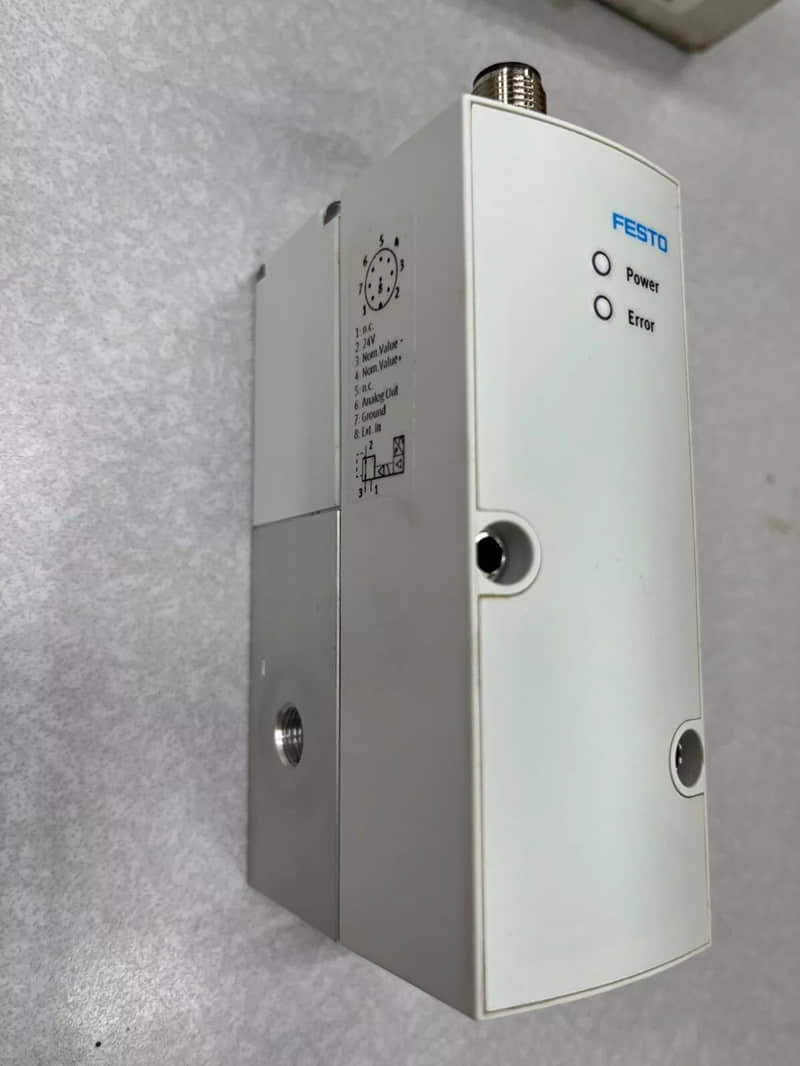

Festo VPPX-6L-L-1-G18-0L10H-S1 Proportional Pressure Regulator

General Description

The Festo VPPX-6L-L-1-G18-0L10H-S1 is an advanced proportional pressure regulator that precisely controls pneumatic pressure in various industrial applications. It utilizes a pilot-operated diaphragm design and features an LED display for easy monitoring. This regulator is engineered for high performance and reliability, making it ideal for automation systems requiring accurate pressure management.

Technical Specifications

l Model: VPPX-6L-L-1-G18-0L10H-S1

l Pressure Regulation Range: 0.1 to 10 bar

l Input Pressure Range: 0 to 11 bar

l Nominal Flow Rate: 1,400 l/min

l Electrical Connection: M12, 8-pin plug

l Operating Voltage Range: DC 21.6 to 26.4 V

l Max Power Consumption: 7 W

l Protection Rating: IP65

l Ambient Temperature Range: 0 to 60 °C

Festo VPPX-6L-L-1-G18-0L10H-S1 Features

1. Pilot Operated Design: Ensures stable and accurate pressure regulation.

2. LED Display: Provides clear visibility of operational status.

3. Versatile Mounting Options: Can be installed in any orientation.

Festo VPPX-6L-L-1-G18-0L10H-S1 Applications

ü Automation Systems: Ideal for controlling pneumatic actuators and valves.

ü Manufacturing Processes: Used in applications requiring precise pressure control.

Installation Procedure (Step by Step)

l Preparation:

Gather necessary tools: wrench, screwdrivers, and fittings.

Ensure a clean and safe workspace.

l Mounting:

Choose a suitable location for installation.

Securely mount the regulator using appropriate fasteners.

l Connecting Air Supply:

Connect the air supply line to the G1/8 ports on the regulator.

Verify all connections are tight to prevent leaks.

l Electrical Connections:

Connect the M12 electrical plug according to the wiring diagram provided.

Ensure correct polarity to avoid damage.

l Testing:

Activate the air supply and check the regulator's functionality.

Adjust settings as necessary for desired pressure output.

l Final Checks:

Inspect all connections for leaks.

Confirm that the regulator operates within specified parameters.

Related Part number of the same series:

l VPPX-6F-L-1-F-0L10H-S1 570968

l VPPX-8F-L-1-F-0L10H-S1 570970

l VPPX-12L-L-1-G12-0L10H-S1 2448444

l VPPX-8L-L-1-G14-0L10H-S1 570969

l VPPX-6L-L-1-G18-0L10H-S1 570967
