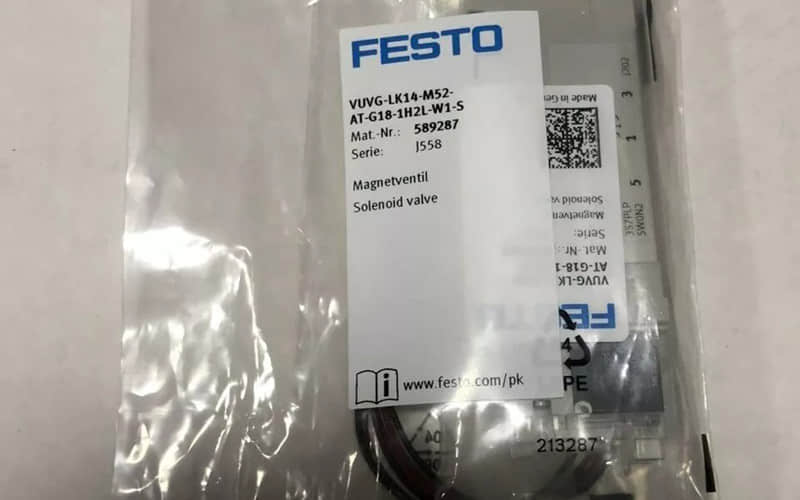

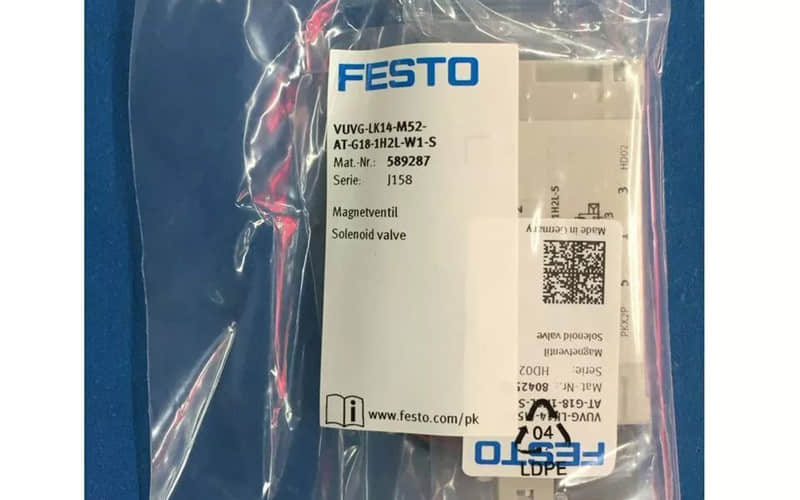

FESTO VUVG-LK14-M52-AT-G18-1H2L-W1-S 589287 Solenoid Valve

General Description

The VUVG-LK14-M52-AT-G18-1H2L-W1-S solenoid valve is designed to provide reliable operation in demanding environments. Its compact size and high flow capacity make it ideal for integration into various automation systems, ensuring optimal performance and efficiency.

FESTO VUVG-LK14-M52-AT-G18-1H2L-W1-S Technical Specifications

l Specification Details

l Model VUVG-LK14-M52-AT-G18-1H2L-W1-S

l Valve Function 5/2-way, monostable

l Type of Actuation Electric

l Valve Size 14 mm

l Standard Nominal Flow Rate 660 l/min

l Operating Voltage 24 V DC

l Operating Pressure 0.25 MPa to 0.7 MPa (2.5 to 7 bar)

l Design Piston slide with sealing ring

l Degree of Protection IP40

l Weight 50 g

FESTO VUVG-LK14-M52-AT-G18-1H2L-W1-S Features

1. Versatile Functionality: The 5/2-way monostable valve allows for flexible applications in pneumatic control.

2. High Flow Rate: A standard nominal flow rate of 660 l/min ensures efficient operation.

3. Compact Design: Measuring only 14 mm, it fits easily into tight spaces.

4. Durable Construction: Built with robust materials and IP40 protection for reliability in various environments.

Applications

The FESTO VUVG-LK14-M52-AT-G18-1H2L-W1-S solenoid valve is suitable for:

1. Pneumatic control systems

2. Automation technology

3. Material handling equipment

4. Robotics

Installation Procedure

l Preparation: Ensure all components are clean and ready for assembly.

l Mounting: Secure the valve onto a manifold rail or appropriate mounting surface using screws.

l Pneumatic Connections: Connect the pneumatic ports (G1/8) to the air supply lines.

l Electrical Connection: Connect the electrical supply to the two-wire open end as per the wiring diagram.

l Testing: Power on the system and test the valve operation to confirm functionality.
