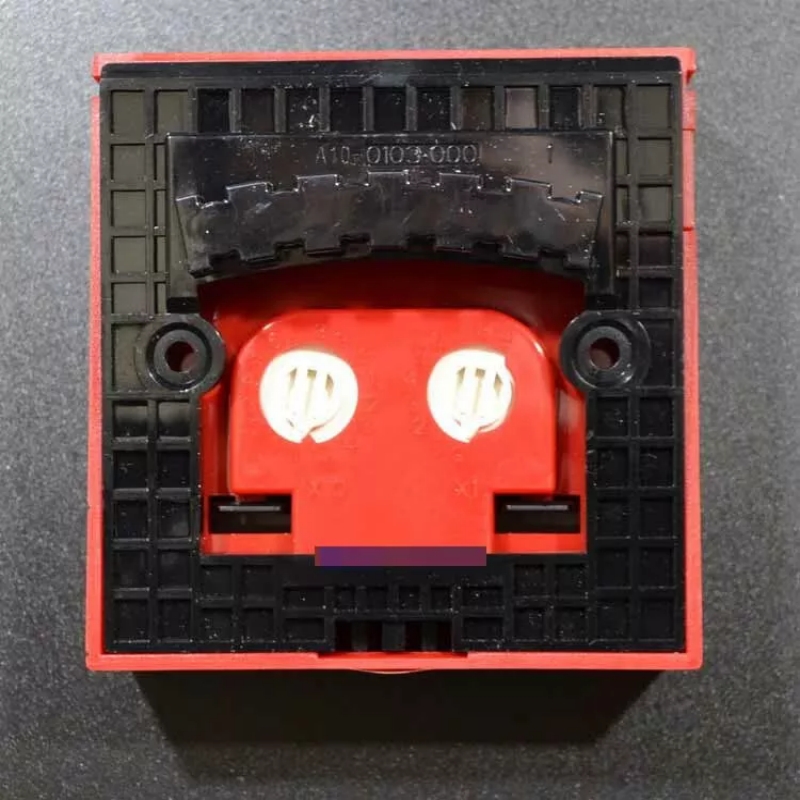

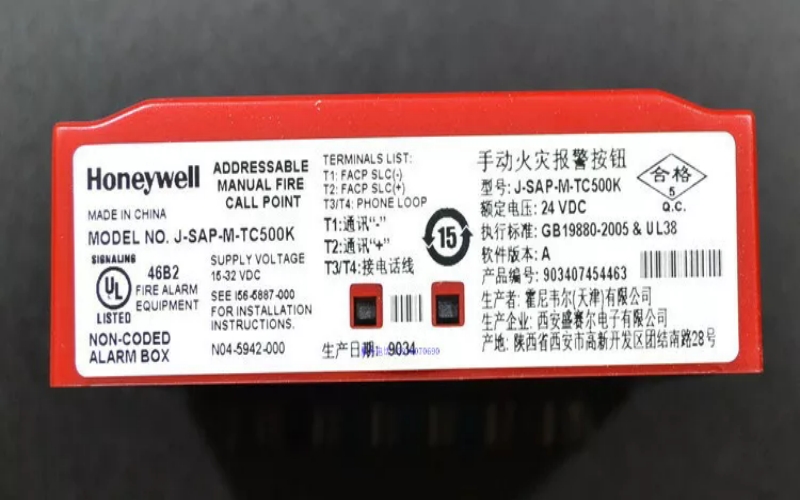

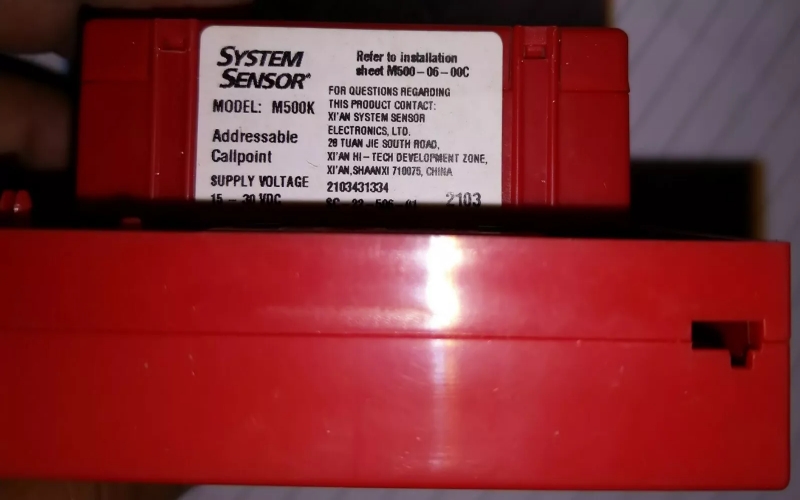

Honeywell J-SAP-M-TC500K Manual Alarm Button

General Description

The Honeywell J-SAP-M-TC500K is a robust manual alarm button specifically engineered for use in fire alarm systems. This device allows for immediate alarm activation in emergency situations, ensuring rapid response and enhanced safety in various environments. Its durable construction and intuitive design make it essential for any fire safety system.

Technical Specifications of Honeywell J-SAP-M-TC500K

l Operating Voltage: 24 VDC

l Current Draw: 20 mA (maximum)

l Temperature Range: -40°F to 150°F (-40°C to 65°C)

l Humidity Range: 10% to 93% (non-condensing)

l Dimensions: 4.5 in. (114 mm) x 4.5 in. (114 mm) x 2.5 in. (64 mm)

l Weight: Approximately 0.5 lbs (227 g)

l Material: High-impact plastic housing for durability

l Mounting Type: Surface mount

Detailed Features of Honeywell J-SAP-M-TC500K

A. Manual Activation Mechanism: The pull station features a straightforward pull-down handle, allowing users to activate the fire alarm quickly.

B. Visual Status Indicator: Equipped with an LED indicator that illuminates during an alarm condition, providing clear visual feedback.

C. Tamper Protection: Includes a tamper switch that triggers an alert if the unit is removed from its mounting location, enhancing security.

D. Weather-Resistant Design: The unit is suitable for both indoor and outdoor installations and is designed to withstand various environmental conditions.

E. Compatibility: Fully compatible with Honeywell's range of fire alarm control panels, ensuring seamless integration into existing systems.

Applications

The J-SAP-M-TC500K is ideal for:

1. Commercial buildings such as offices and retail spaces

2. Industrial facilities requiring reliable manual fire alarm activation

3. Educational institutions where quick emergency response is critical

4. Public venues and event spaces need effective safety measures

Installation

Installation of the Honeywell J-SAP-M-TC500K should be performed by qualified personnel according to local codes and standards:

Location Selection:

Identify a location easily accessible and visible to all building occupants, typically near exits or high-traffic areas.

Mounting Procedure:

l Use appropriate mounting hardware to secure the pull station to a wall at a height of approximately 48 inches from the floor.

l Ensure the unit is mounted on a solid surface to prevent movement or detachment.

Electrical Connections:

l Follow the wiring diagram provided with the unit to connect it to the fire alarm control panel.

l Use appropriate gauge wire for connections and ensure all connections are secure.

l Addressing (if applicable): If using an addressable system, set the address using the built-in rotary switches inside the unit.

Testing and Commissioning:

l After installation, conduct functionality tests by activating the pull station to ensure it communicates properly with the fire alarm system.

l Confirm that the visual indicator operates correctly during tests.

Related Part Numbers

l J-SAP-M-TC500A Manual Pull Station

l J-SAP-M-TC500B Manual Pull Station
